Запчасти Case IH LA-SERIES (105) - RAISED HITCH FOR 2408AA DRAW BAR (09) - CHASSIS

06282ab

O6282AB

BRACE R.H., hitch, draw bar

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1-3/4"

2шт.

SCREW cap, hex head, N.F. thread, 5/8" x 2-1/2"

1шт.

NUT light, hex, N.F. thread, 1/2"

2шт.

NUT light, hex, N.F. thread, 5/8"

1шт.

WASHER lock, standard, 1/2"

2шт.

WASHER lock, standard, 5/8"

1шт.

06283ab

O6283AB

BRACE L.H., hitch, draw bar

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1-3/4"

2шт.

SCREW cap, hex head, N.F. thread, 5/8" x 2-1/2"

1шт.

NUT light, hex, N.F. thread, 1/2"

2шт.

NUT light, hex, N.F. thread, 5/8"

1шт.

WASHER lock, standard, 1/2"

2шт.

WASHER lock, standard, 5/8"

1шт.

06284ab

O6284AB

BUSHING hole, draw bar

1шт.

06285ab

O6285AB

STRAP hitch, draw bar

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 4"

2шт.

NUT light, hex, N.F. thread, 1/2"

2шт.

WASHER lock, standard, 1/2"

2шт.

06286ab

O6286AB

BRACKET hitch, draw bar

1шт.

BOLT machine, 1" x 3-1/2", with hex nut

1шт.

WASHER lock, standard, 1"

1шт.

06287ab

O6287AB

STRAP reinforcement, bracket, hitch, draw bar

1шт.

SCREW cap, hex head, N.F. thread, 5/8" x 2-1/2"

1шт.

NUT light, hex, N.F. thread, 5/8"

1шт.

WASHER lock, standard, 5/8"

1шт.

2727aa

2727AA

HITCH complete, raised, draw bar (Machinery item)

1шт.

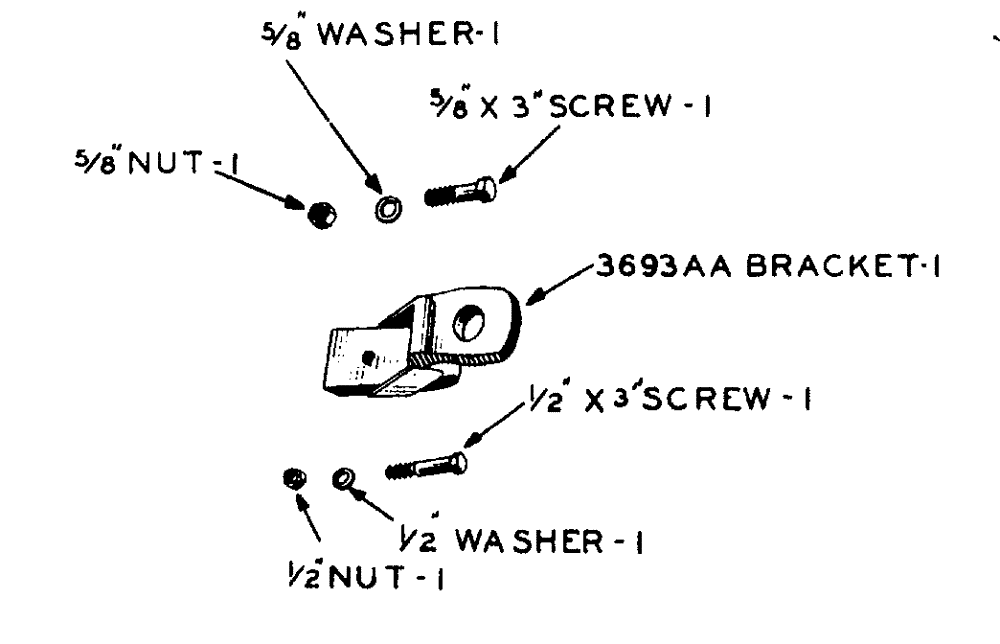

3693aa

3693AA

BRACKET hitch, raised, for A2408AA draw bar

1шт.

a2727aa

A2727AA

HITCH complete, raised, for A2408AA draw bar (Machinery item)

1шт.

Consists of: 1 - 3693AA bracket, 1 - 1/2" x 3" hex head cap screw, N.F. thread, 1 - 5/8" x 3" hex head cap screw, N.F. thread, 1 - 1/2" hex nut, light, N.F. thread, 1 - 5/8" hex nut, light, N.F. thread, 1 - 1/2" standard lock washer, 1 - 5/8" standard lock washer

1шт.
