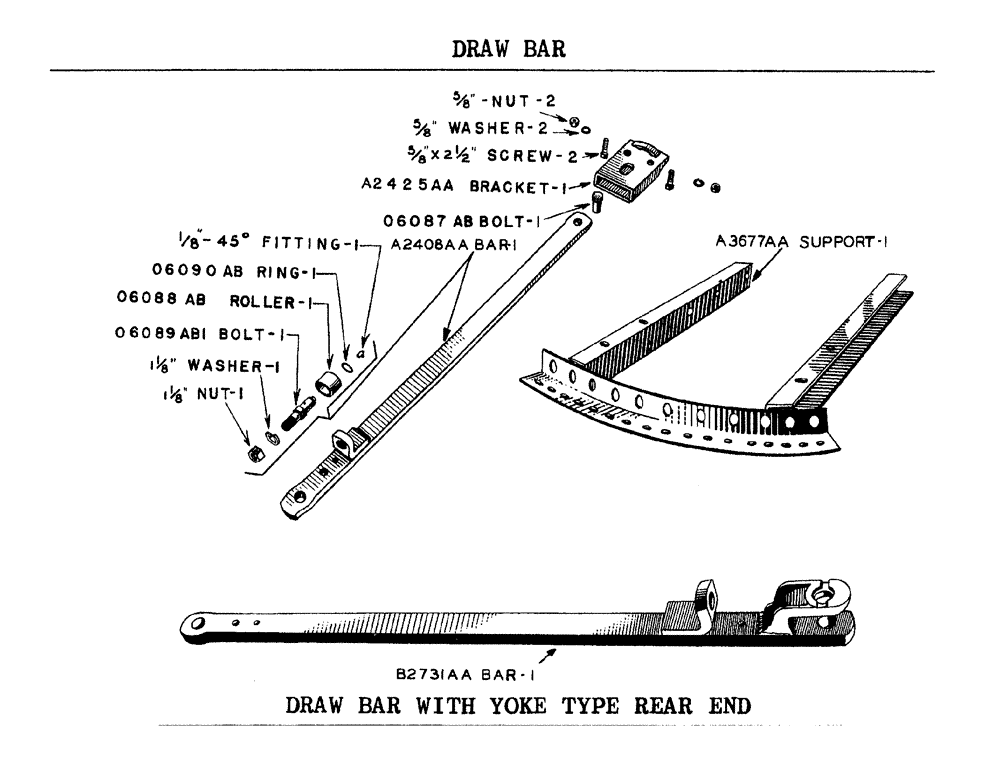

Запчасти Case IH LA-SERIES (104) - DRAW BAR (09) - CHASSIS

06087ab

A27009

BOLT

pivot, draw bar

1шт.

06088ab

A27010

ROLLER

draw bar

1шт.

06089ab1

A27011

BOLT

roller, draw bar

1шт.

FITTING 45°, Lincoln No. 5200, 1/8"

1шт.

NUT light, hex, N.F. thread, 1-1/8"

1шт.

WASHER lock, standard, 1-1/8"

1шт.

06090ab

O6090AB

X

RING snap, bolt, roller, draw bar

1шт.

2408aa

2408AA

BAR draw (Not furnished. Ship 1 - A2408AA draw bar and 1 - A2727AA raised hitch)

1шт.

a2408aa

A2408AA

X

BAR draw, with roller assembly (Consists of: Draw bar with 1 - O6088AB, 1 - O6089AB1, 1 - O6090AB, 1 - 1-1/8" hex nut, light N.F. thread, 1 - 1-1/8" standard lock washer, and 1 - 1/8" 45° Lincoln fitting)

1шт.

a2425aa

A2425AA

BRACKET pivot, draw bar

1шт.

SCREW cap, hex head, N.F. thread, 5/8" x 2-1/2"

2шт.

NUT light, hex, N.F. thread, 5/8"

2шт.

WASHER lock, standard, 5/8"

2шт.

a3677aa

A3677AA

SUPPORT draw bar (Tractor No. 5208165 and after)

1шт.

5738a

5738A

YOKE draw bar (Use B2731AA)

1шт.

06088ab

A27010

ROLLER

draw bar with yoke type rear end

1шт.

06089ab1

A27011

BOLT

roller, draw bar with yoke type rear end

1шт.

FITTING 45°, Lincoln No. 5200, 1/8", draw bar with yoke type rear end

1шт.

NUT light, hex, N.F. thread, 1-1/8", draw bar with yoke type rear end

1шт.

WASHER lock, standard, 1-1/8", draw bar with yoke type rear end

1шт.

06090ab

O6090AB

X

RING snap, bolt, roller, draw bar with yoke type rear end

1шт.

06249ab

O6249AB

PIN draw bar with yoke type rear end

1шт.

PIN cotter, 3/8" x 2-1/2", draw bar with yoke type rear end

1шт.

a2728aa

A2728AA

BAR draw, with roller assembly, with yoke type rear end (Machinery item)

1шт.

Consists of: 1 - B2731AA, 1 - 06088AB, 1 - 06089AB1, 1 - 06090AB, 1 - 06249AB, 1 - 1-1/8" hex nut, light, N.F. thread, 1 - 1-1/8" lock washer, 1 - 3/8" x 2-1/2" cotter pin and 1 - 1/8" 45° Lincoln fitting

1шт.

b2731aa

B2731AA

BAR draw, with roller strap and yoke

1шт.
