Запчасти Case IH LA-SERIES (103) - PLATFORM (09) - CHASSIS

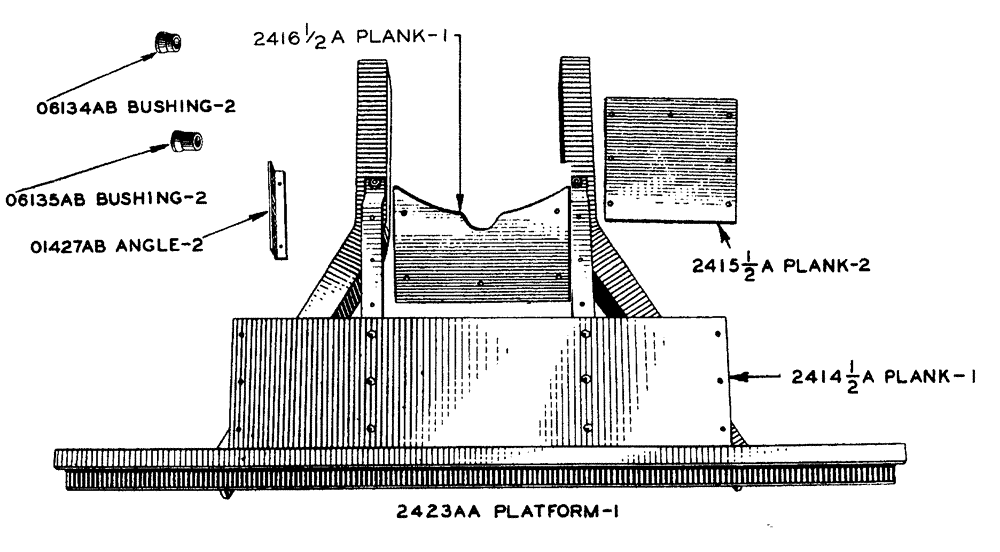

Схема запчастей Case IH LA-SERIES - (103) - PLATFORM (09) - CHASSIS
2414.5a
06134ab
2416.5a
01427ab
06135ab
2423aa
2415.5a

Артикул

Название

Примечание

Количество

2414.5a

2414½A

PLANK rear, platform (Prior to tractor No. 5208165)

1шт.

BOLT carriage, 5/16" x 1-1/2", with square nut

6шт.

BOLT carriage, 5/16" x 1-3/4", with square nut

6шт.

WASHER lock, standard, 5/16"

12шт.

2415.5a

2415½A

PLANK side, platform (Prior to tractor No. 5208165)

2шт.

BOLT carriage, 5/16" x 1-1/2", with square nut

6шт.

BOLT carriage, 5/16" x 1-3/4", with square nut

6шт.

WASHER lock, standard, 5/16"

12шт.

2416.5a

2416½A

PLANK front, center, platform (Prior to tractor No. 5208165)

1шт.

BOLT carriage, 1/4" x 1-1/2", with square nut

4шт.

WASHER lock, standard, 1/4"

4шт.

01427ab

O1427AB

ANGLE front, plank, platform (Prior to tractor No. 5208165)

2шт.

06134ab

O6134AB

BUSHING front, platform channel

2шт.

SCREW cap, hex head, N.C. thread, 3/4" x 2-1/2"

2шт.

WASHER lock, standard, 3/4"

2шт.

06135ab

O6135AB

BUSHING rear, platform channel

2шт.

SCREW cap, hex head, N.C. thread, 3/4" x 3"

2шт.

WASHER lock, standard, 3/4"

2шт.

08736ab

O8736AB

PLATE filler, platform (To be welded in place should hydraulic equipment be removed from Tractors No. 5208165 to No. 5600000.)

1шт.

09423ab

O9423AB

SHEET center, platform (Tractor No. 5600000 and after) (For tractors not equipped with hydraulic control unit) (See O9426AB)

1шт.

09426ab

O9426AB

SHEET center, front, platform (Tractor No. 5600000 and after) (For tractors equipped with hydraulic control unit) (See O9423AB)

2шт.

2423aa

2423AA

PLATFORM with support and draw bar angle (Prior to tractor No. 5208165) (Used regularly when tractor is not equipped with hydraulic control unit) (See 3676AA, 3863AA and 4326AA)

1шт.

3676aa

3676AA

PLATFORM (Tractor No. 5208165 to No. 5600000) (For tractors not equipped with hydraulic control unit) (See 2423AA, 3863AA and 4326AA)

1шт.

3863aa

3863AA

PLATFORM (Prior to tractor No. 5600000) (For tractors equipped with hydraulic control unit) (See 2423AA, 3676AA and 4326AA)

1шт.

4326aa

4326AA

PLATFORM (Tractor No. 5600000 and after) (See 2423AA, 3676AA and 3863AA)

1шт.

Выбрано товаров: 25
