Запчасти Case IH LA-SERIES (080) - OPERATORS SEAT (09) - CHASSIS

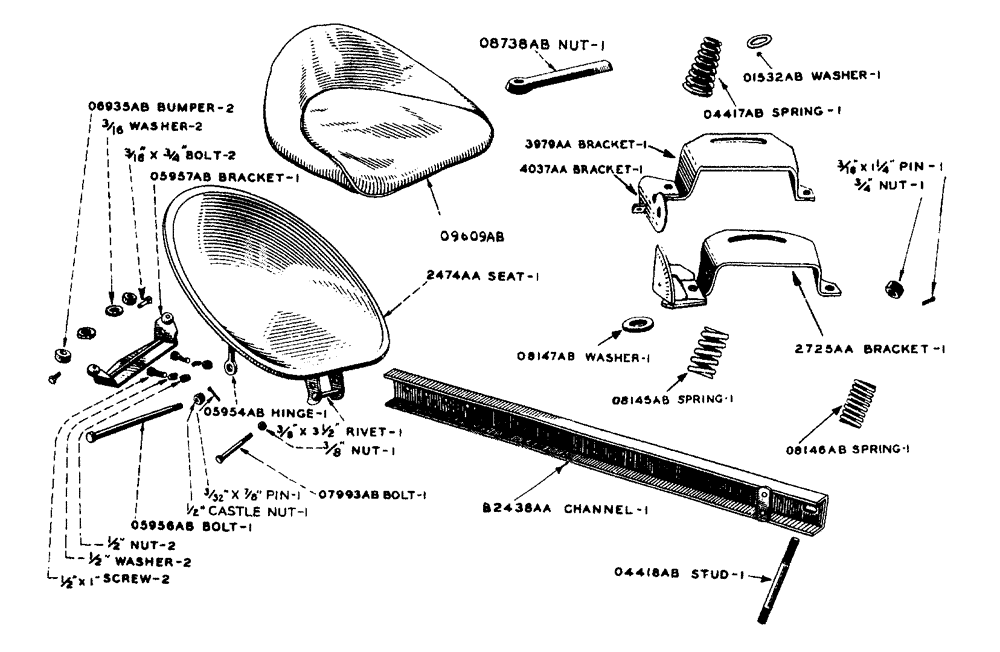

Схема запчастей Case IH LA-SERIES - (080) - OPERATORS SEAT (09) - CHASSIS
b2438aa
06935ab
08146ab
08145ab
01532ab
08147ab
3979aa
2725aa
2474aa
07993ab
09609ab
04418ab
05957ab
04417ab
05954ab
4037aa
05956ab
08738ab

№

Артикул

Название

Примечание

Количество

01532ab

O1532AB

WASHER retainer, spring, seat (Use 08147AB)

1шт.

04417ab

O4417AB

X

SPRING seat (Use O8145AB and O8146AB springs with O8147AB washer)

1шт.

04418ab

O4418AB

STUD spring, seat

1шт.

NUT light, hex, N.F. thread, 3/4"

1шт.

PIN cotter, 3/16" x 1-1/4"

1шт.

05954ab

O5954AB

HINGE seat

1шт.

05956ab

O5956AB

BOLT hinge, seat

1шт.

NUT castle, light, N.F. thread, 1/2"

1шт.

PIN cotter, 3/32" x 7/8"

1шт.

05957ab

O5957AB

BRACKET support, rear, seat

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1"

2шт.

NUT light, hex, N.F. thread, 1/2", with lock washer

2шт.

06139ab

O6139AB

PLATE bearing, channel, seat (Prior to tractor No. 4510370)

1шт.

06139ab1

O6139AB1

PLATE bearing, channel, seat (Tractor No. 4510370 and after)

1шт.

06935ab

A27124

BUMPER

support, rear, seat

2шт.

SCREW machine, round head, No. 10 x 3/4", with nut and lock washer

2шт.

07993ab

O7993AB

BOLT bracket, front support, seat (Used with A2474AA seat instead of 3/8" x 3-1/2" round head rivet)

1шт.

NUT castle, light, N.F. thread, 3/8"

1шт.

PIN cotter, 3/32" x 7/8"

1шт.

08145ab

O8145AB

SPRING

outside, seat

1шт.

08146ab

O8146AB

SPRING inside, seat

1шт.

08147ab

A31266

WASHER

retainer, spring, seat

1шт.

08738ab

O8738AB

NUT handle, mounting, seat

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1"

1шт.

09609ab

O9609AB

CUSHION seat

1шт.

b2438aa

B2438AA

CHANNEL seat, with bearing

1шт.

2474aa

2474AA

SEAT operator's (Use A2474AA)

1шт.

RIVET round head, 3/8" x 3-1/2" (See O7993AB)

1шт.

a2474aa

A2474AA

SEAT operator's

1шт.

2725aa

2725AA

BRACKET mounting, seat, with throttle quadrant (Prior to tractor No. 5509680) (See 3979AA)

1шт.

SCREW cap, hex head, N.C. thread, 5/8" x 1-1/4", with lock washer

2шт.

3979aa

3979AA

BRACKET mounting, seat, with spark and throttle lever bracket (Tractor No. 5509680 and after) (See 2725AA)

1шт.

SCREW cap, hex head, N.C. thread, 5/8" x 1-1/4"

1шт.

SCREW cap, hex head, N.C. thread, 5/8" x 1-1/2"

1шт.

WASHER lock, standard, 5/8"

2шт.

4037aa

4037AA

BRACKET lever, throttle and spark

1шт.

Выбрано товаров: 36
