(064) - REAR WHEEL WEIGHT FOR 5996A WHEEL

Запчасти Case IH LA-SERIES (064) - REAR WHEEL WEIGHT FOR 5996A WHEEL (09) - CHASSIS

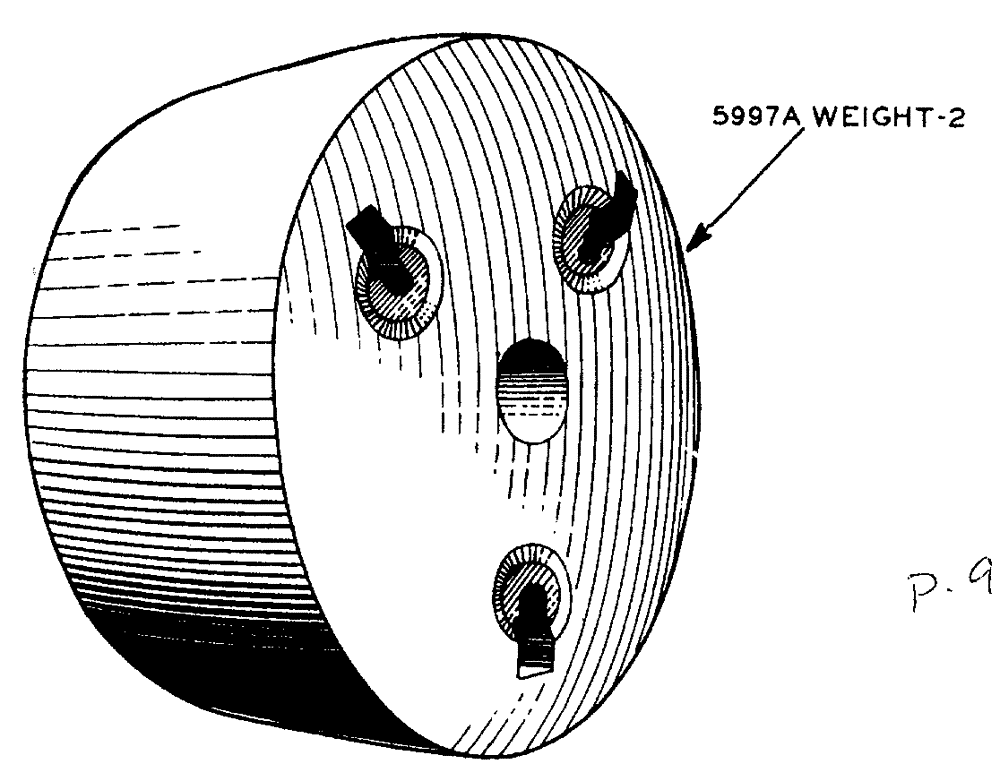

Схема запчастей Case IH LA-SERIES - (064) - REAR WHEEL WEIGHT FOR 5996A WHEEL (09) - CHASSIS
5997a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

5997a

5997A

WEIGHT wheel, rear (Use 3632AA)

1шт.

BOLT machine, N.C. thread, 3/4" x 14", with hex nut

6шт.

WASHER lock, standard, 3/4"

6шт.

01532ab

O1532AB

WASHER bolt, weight, rear wheel

6шт.

3632aa

3632AA

WEIGHT set of (2) for 3629AA rear wheels (Machinery item) (Consists of: 2 - 5997A, 6 - O1532AB, 6 - 3/4" x 14" machine bolts with hex nut and 6 - 3/4" lock washers)

1шт.
