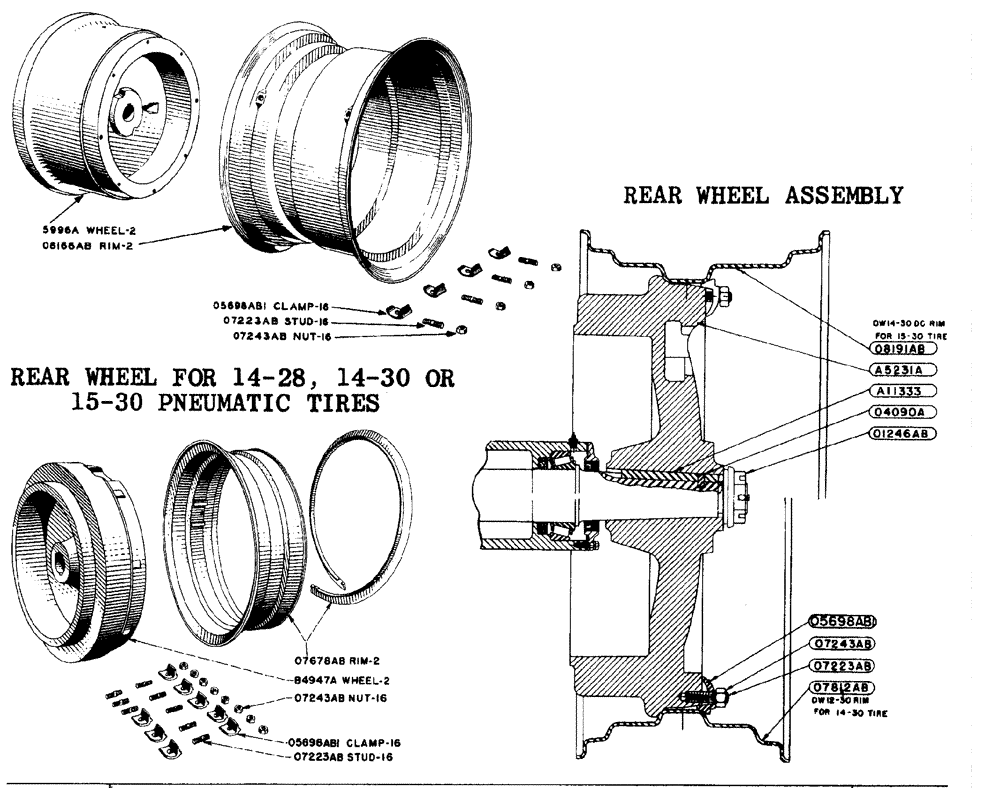

Запчасти Case IH LA-SERIES (062) - REAR WHEELS FOR PNEUMATIC FARM TIRES (09) - CHASSIS

c4947a

C4947A

WHEEL rear, for tractors equipped with wheel brakes and using 14: 00-28, 14: 00-30 and 15: 00-30 tires (See C1068AA, A2457AA and A3659AA)

2шт.

b5231a

B5231A

WHEEL rear, for tractors without wheel brakes using 14: 00-30 or 15: 00-30 tires (See B1551AA, A2453AA and A3657AA)

2шт.

5996a

5996A

WHEEL rear, for 18-26 tires (See 3629AA)

2шт.

05698ab1

A26908

CLAMP

rim, rear wheel (Goodyear No. 55)

16шт.

07223ab

O7223AB

X

STUD rim, rear wheel

16шт.

07243ab

A27183

NUT

stud, rim, rear wheel

16шт.

07678ab

O7678AB

RIM rear wheel (8: 00 T-28 semi-drop center) for B1551AA wheels with 12: 75-28 or 13: 50-28 tires and C1068AA wheels with 14: 00-28 tires

2шт.

07812ab

O7812AB

RIM rear wheel (DW 12-30 wide base) for A2453AA and A2457AA wheels with 14: 00-30 tires

2шт.

08166ab

O8166AB

RIM rear wheel (DW 16-26 drop center with drivers) for 3629AA wheel with 18: 00-26 tires

2шт.

08191ab

O8191AB

RIM rear wheel (DW 14-30 wide base rim with drivers) for A3657AA and A3659AA wheels with 15: 00-30 tires

2шт.

c1068aa

C1068AA

WHEEL rear, for tractors equipped with wheel brakes and using 14: 00-28 tires (Consists of: 1 - C4947A, 8 - O5698AB1, 8 - O7223AB, 8 - O7243AB and 1 - O7678AB)

2шт.

b1551aa

B1551AA

WHEEL rear, for tractors without wheel brakes using 12: 75-28 or 13: 50-28 tires (Consists of: 1 - B5231A, 8 - O5698AB1, 8 - O7223AB, 8 - O7243AB and 1 - O7678AB)

2шт.

a2453aa

A2453AA

WHEEL rear, for tractors without wheel brakes using 14: 00-30 tires in cane or rice territories (Consists of: 1 - B5231A, 8 - O5698AB1, 8 - O7223AB, 8 - O7243AB and 1 - O7812AB)

2шт.

a2457aa

A2457AA

WHEEL rear, for tractors equipped with wheel brakes and using 14: 00-30 tires in cane or rice territories (Consists of: 1 - C4947A, 8 - O5698AB1, 8 - O7223AB, 8 - O7243AB and 1 - O7812AB)

1шт.

3629aa

3629AA

WHEEL rear, for 18: 00-26 tires (Consists of: 1 - 5996A, 8 - O5698AB1, 8 - O7223AB, 8 - O7243AB and 1 - O8166AB)

2шт.

a3657aa

A3657AA

WHEEL rear, for tractors without wheel brakes using 15: 00-30 tires (Consists of: 1 - B5231A, 8 - O5698AB1, 8 - O7223AB, 8 - O7243AB and 1 - O8191AB)

2шт.

a3659aa

A3659AA

WHEEL rear, for tractors with wheel brakes using 15: 00-30 tires (Consists of: 1 - C4947A, 8 - O5698AB1, 8 - O7223AB, 8 - O7243AB and 1 - O8191AB)

2шт.
