Запчасти Case IH LA-SERIES (026) - ENGINE HOOD AND HOOD EXTENSION SHEETS FOR LP - GAS TRACTOR (09) - CHASSIS

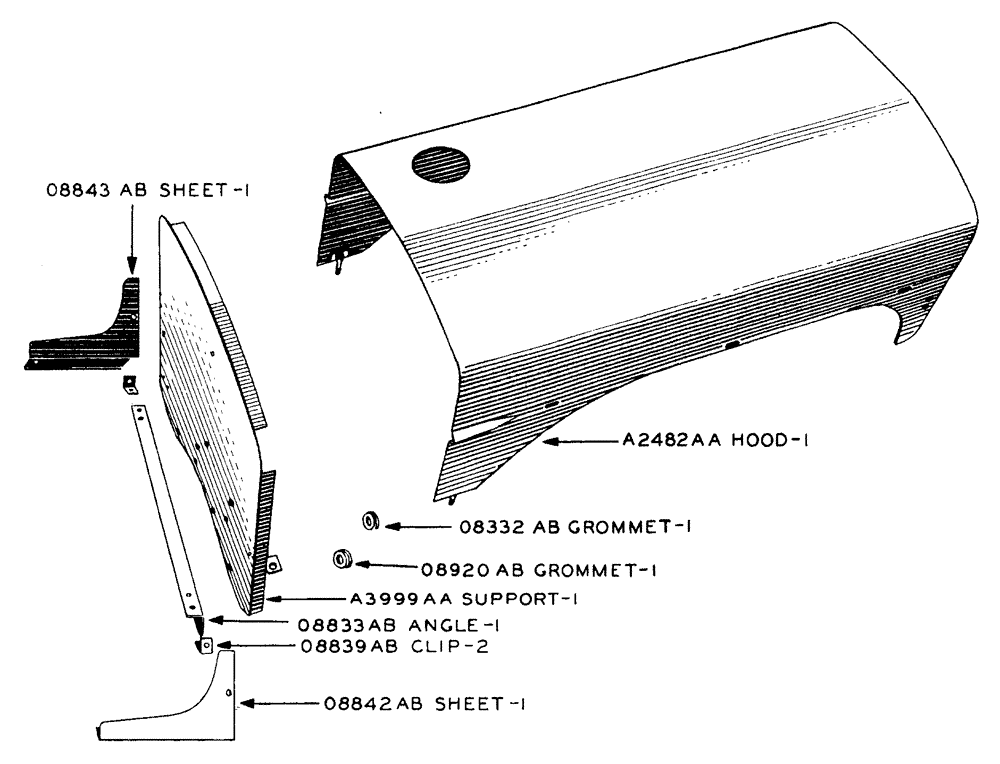

Схема запчастей Case IH LA-SERIES - (026) - ENGINE HOOD AND HOOD EXTENSION SHEETS FOR LP - GAS TRACTOR (09) - CHASSIS
08839ab
08833ab
08843ab
a2482aa
08920ab
08332ab
08842ab
a3999aa

Артикул

Название

Примечание

Количество

08332ab

A27338

GROMMET

rear support, hood, 3/8" hole, for generator wire (Prior to tractor No. 5509680) (See 08920AB)

1шт.

08833ab

O8833AB

ANGLE fuel tank front support

1шт.

SCREW cap, hex head, N.F. thread, 3/8" x 1"

3шт.

NUT light, hex, N.F. thread, 3/8"

3шт.

WASHER light, standard, 3/8"

3шт.

08839ab

O8839AB

CLIP mounting, extension sheet, hood

2шт.

SCREW machine, truss head, N.C. thread, 1/4" x 1/2"

2шт.

NUT hex, N.C. thread, 1/4"

2шт.

WASHER lock, standard, 1/4"

2шт.

08842ab

O8842AB

SHEET R.H., hood extension

1шт.

SCREW cap, hex head, N.F. thread, 5/16" x 3/4"

1шт.

NUT light, hex, N.F. thread, 5/16"

1шт.

WASHER plain, 5/16"

1шт.

08843ab

O8843AB

SHEET L.H., hood extension

1шт.

SCREW cap, hex head, N.F. thread, 5/16" x 3/4"

1шт.

NUT light, hex, N.F. thread, 5/16"

1шт.

WASHER plain, 5/16"

1шт.

08920ab

A27519

GROMMET

rear support, hood, 1-1/64" hole, (Used with 4044AA conduit) (Tractor No. 5509680 and after) (See 08332AB)

1шт.

a2482aa

A2482AA

HOOD engine

1шт.

a3999aa

A3999AA

SUPPORT rear, hood

1шт.

Выбрано товаров: 20
