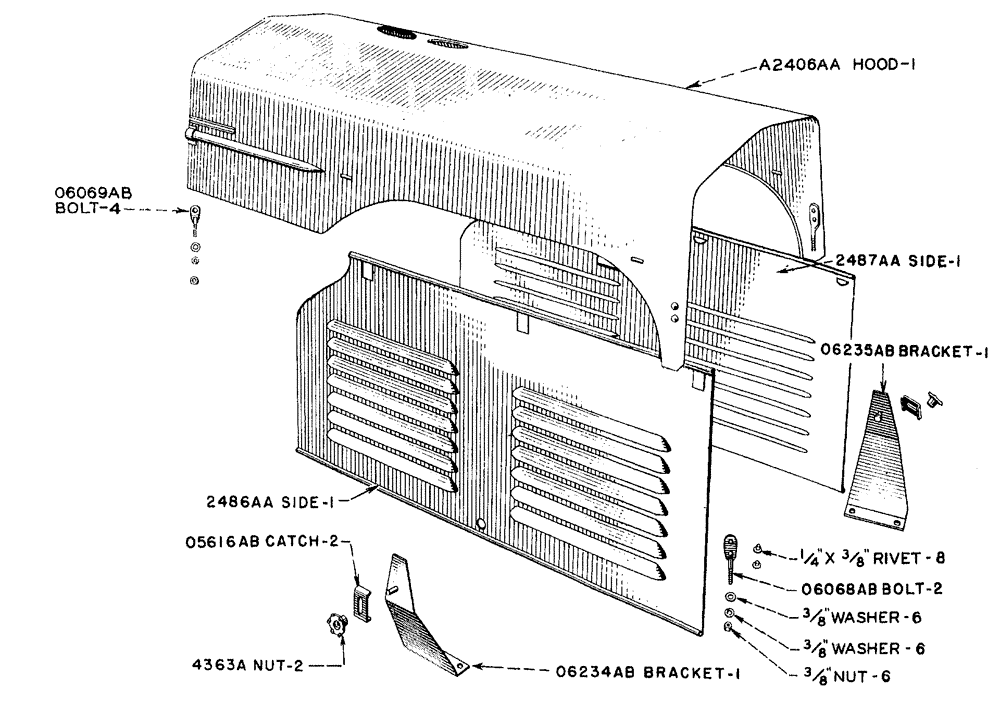

Запчасти Case IH LA-SERIES (025) - ENGINE HOOD AND HOOD SIDES (09) - CHASSIS

06068ab

O6068AB

BOLT tie down, engine hood

2шт.

NUT regular, hex, tie down bolt, engine hood, N.C. thread, 3/8"

2шт.

WASHER lock, standard, tie down bolt, engine hood, 3/8"

2шт.

WASHER plain, standard, tie down bolt, engine hood, 3/8"

2шт.

RIVET wagon box head, steel, tie down bolt, engine hood, 1/4" x 3/8"

4шт.

06069ab

O6069AB

BOLT tie down, rear, engine hood

4шт.

NUT regular, hex, tie down bolt, engine hood, N.C. thread, 3/8"

4шт.

WASHER lock, standard, tie down bolt, engine hood, 3/8"

4шт.

WASHER plain, standard, tie down bolt, engine hood, 3/8"

4шт.

RIVET wagon box head, steel, tie down bolt, engine hood, 1/4" x 3/8"

4шт.

a2406aa

A2406AA

HOOD engine

1шт.

4363a

4363A

NUT catch clamp, engine hood side

2шт.

05616ab

O5616AB

CATCH engine hood side

2шт.

06234ab

O6234AB

BRACKET R.H.,engine hood side

1шт.

SCREW cap, hex head, R.H. bracket, engine hood side, N.F. thread, 3/8" x 1-1/4"

1шт.

SCREW cap, hex head, R.H. bracket, engine hood side, N.C. thread, 1/2" x 1-1/4"

4шт.

06235ab

O6235AB

BRACKET L.H., engine hood side

1шт.

SCREW cap, hex head, L.H. bracket, engine hood side, N.F. thread, 3/8" x 1-1/4"

1шт.

SCREW cap, hex head, L.H. bracket, engine hood side, N.C. thread, 1/2" x 1-1/4"

2шт.

2486aa

2486AA

SIDE R.H., engine hood

1шт.

2487aa

2487AA

SIDE L.H., engine hood

1шт.
