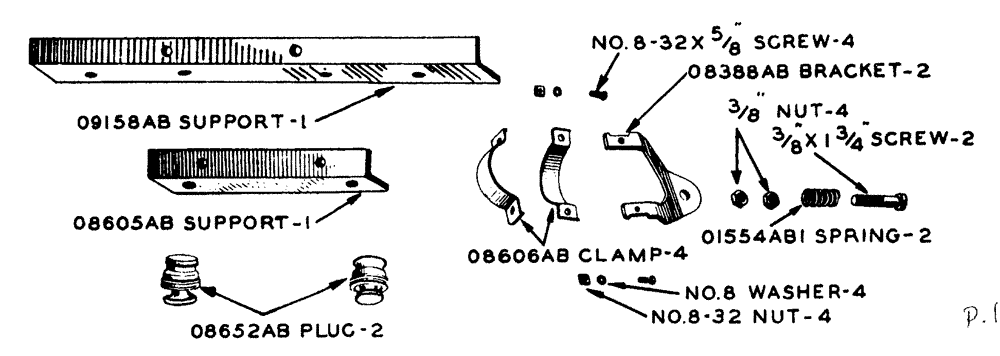

Запчасти Case IH LA-SERIES (100) - HYDRAULIC SINGLE & DUAL CONTROL UNIT - MOUNTING BRACKET FOR COUPLING SOCKET FOR SINGLE & DUAL VALVES (08) - HYDRAULICS

01554ab1

A26546

SPRING

bracket, mounting, for single valve

2шт.

01554ab1

A26546

SPRING

bracket, mounting, for dual valve

4шт.

08388ab

A27360

BRACKET

mounting, break-away coupling, for single valve

2шт.

08388ab

A27360

BRACKET

mounting, break-away coupling, for dual valve

4шт.

SCREW cap, hex head, N.F. thread, 3/8" x 1-3/4", for single valve

2шт.

SCREW cap, hex head, N.F. thread, 3/8" x 1-3/4", for dual valve

4шт.

NUT jam, light, hex, N.F. thread, 3/8", for single valve

4шт.

NUT jam, light, hex, N.F. thread, 3/8", for dual valve

8шт.

08605ab

O8605AB

SUPPORT bracket, mounting, break-away coupling (See O9158AB), for single valve

1шт.

SCREW cap, hex head, N.F. thread, 3/8" x 1", for single valve

2шт.

NUT light, hex, N.F. thread, 3/8", for single valve

2шт.

WASHER lock, standard, 3/8", for single valve

2шт.

08606ab

A27423

CLAMP

mounting, break-away coupling, for single valve

4шт.

08606ab

A27423

CLAMP

mounting, break-away coupling, for dual valve

8шт.

SCREW machine, round head, No. 8-32 x 5/8", for single valve

4шт.

SCREW machine, round head, No. 8-32 x 5/8", for dual valve

8шт.

NUT hex, No.8-32, for single valve

4шт.

NUT hex, No.8-32, for dual valve

8шт.

WASHER lock, standard, No. 8, for single valve

4шт.

WASHER lock, standard, No. 8, for dual valve

8шт.

08652ab

O8652AB

X

PLUG dust, coupling, hydraulic break-away, for single valve

2шт.

08652ab

O8652AB

X

PLUG dust, coupling, hydraulic break-away, for dual valve

4шт.

09158ab

O9158AB

SUPPORT bracket, mounting, break-away coupling (See O8605AB), for dual valve

1шт.

SCREW cap, hex head, N.F. thread, 3/8" x 1", for dual valve

2шт.

NUT light, hex, N.F. thread, 3/8", for dual valve

2шт.

WASHER lock, standard, 3/8", for dual valve

2шт.
