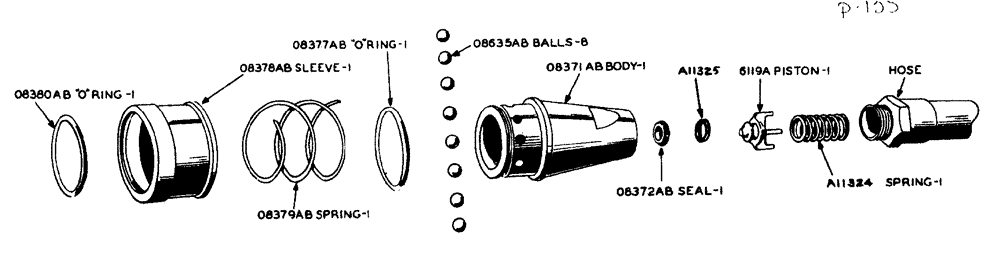

Запчасти Case IH LA-SERIES (097) - 4026AA BREAK-AWAY SELF SEALING COUPLING FEMALE (08) - HYDRAULICS

a11324

A11324

SPRING

piston, coupling

1шт.

a11325

A11325

X

RETAINER seal

1шт.

6119a

A26215

PISTON

socket

1шт.

4026aa

A28542

COUPLING, QUICK, FEM

SOCKET coupling assembly, self sealing, break-away

4шт.

08371ab

O8371AB

BODY socket, coupling, female

1шт.

08372ab

A33964

SEAL

piston

1шт.

08377ab

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

body, socket

1шт.

08378ab

A27353

SLEEVE

SLEEVE retaining, ball

1шт.

08379ab

A27354

SPRING

sleeve, retaining, ball

1шт.

08380ab

310959R1

O-RING,-217, 70 Duro, 1.171" ID x .139" Thk

RING snap, rubber, socket

1шт.

08635ab

211-7

BALL,1/4" Dia

locking, socket 1/4" Dia

8шт.
