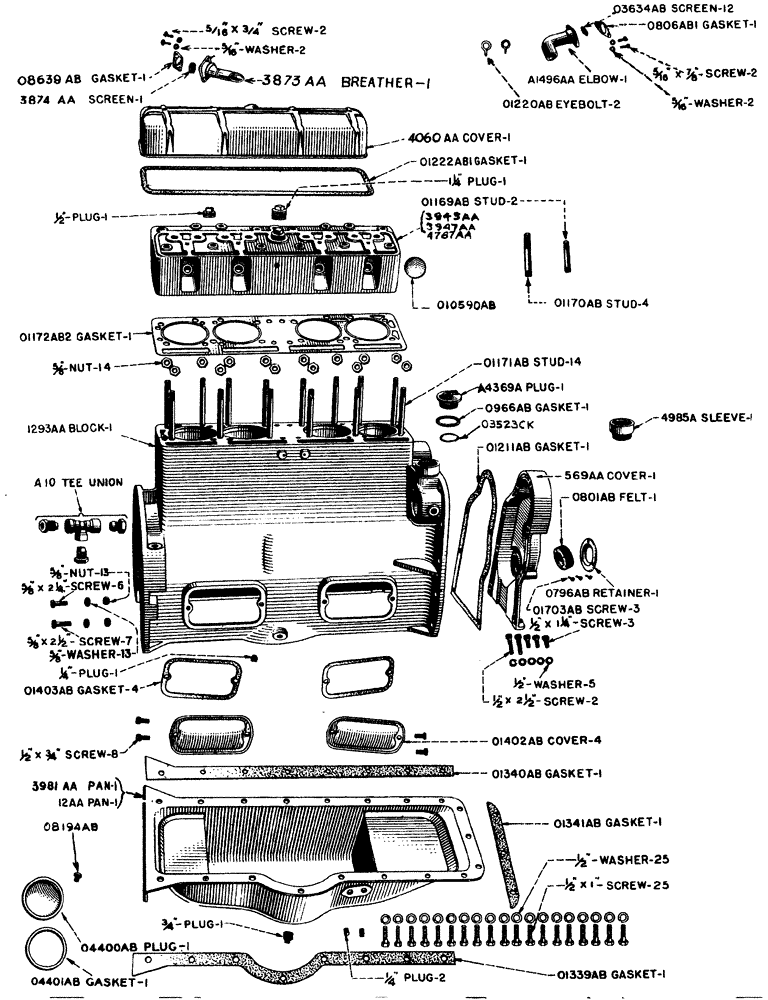

Запчасти Case IH LA-SERIES (001) - CYLINDER HEAD, CYLINDER BLOCK AND OIL PAN (02) - ENGINE

4447a

4447A

HEAD cylinder (Use 51AA)

1шт.

a4448a

A4448A

COVER cylinder head (Use B52AA)

1шт.

b4790a

B4790A

ELBOW breather, cylinder head (Use A1496AA)

1шт.

5844a

5844A

HEAD cylinder (Use 3943AA)

1шт.

5845a

5845A

HEAD cylinder (Use 3947AA)

1шт.

6386a

6386A

HEAD cylinder (Use 4767AA)

1шт.

0806ab1

O806AB1

GASKET cylinder head, for A1496AA breather (See O8639AB)

1шт.

01169ab

O1169AB

STUD valve rocker arm bracket, cylinder head, short, 1/2" x 4-7/8", for B52AA cover (See O1170AB)

2шт.

NUT hex, cylinder head, light, semi finish, N.F. thread, 1/2"

2шт.

01170ab

O1170AB

STUD valve rocker arm bracket, cylinder head, long, 1/2" x 6-1/4", for B52AA cover (See O1169AB)

2шт.

01170ab

O1170AB

STUD valve rocker arm bracket, cylinder head, long, 1/2" x 6-1/4", for 4060AA cover

4шт.

NUT hex, cylinder head, light, semi finish, N.F. thread, 1/2"

8шт.

WASHER plain, cylinder head, 1/2"

4шт.

01171ab

O1171AB

STUD cylinder head, 5/8" x 6-3/4"

14шт.

NUT hex, cylinder head, light, semi finish, N.F. thread, 5/8"

14шт.

01172ab2

A26466

GASKET

cylinder head

1шт.

01220ab

O1220AB

BOLT eye, for B52AA cylinder head cover

2шт.

01222ab1

A26488

GASKET

cylinder head cover

1шт.

03634ab

O3634AB

SCREEN cylinder head, for A1496AA breather (See 3874AA)

12шт.

08639ab

O8639AB

X

GASKET cylinder head, for 3873AA breather (See O806AB1)

1шт.

010590ab

A28091

PLUG

welch, 1-5/8", for 51AA, 3943AA, 4767AA and 3947AA cylinder heads

1шт.

51aa

51AA

HEAD cylinder, with valve guides and valve inserts. Standard equipment for gasoline or in high altitudes for low cost fuel when used w/ A4836A high compression pistons. Standard equip. for low cost fuel when used w/ A4451A pistons. (See 3943AA or 3947AA)

1шт.

Prior to tractor No. 5408295

1шт.

For tractors prior to No. 5408295 having 51AA cylinder head and using A4451A pistons, the new cylinder head 3943AA can be used if the following are supplied: 1 - 3943AA Cylinder head, 4 - 09012AB Spark plugs, 1 - 07421AB Spark plug wrench, 1 - 08728AB Screw

1шт.

PLUG square head pipe, cylinder head, 1/2"

1шт.

PLUG square head pipe, cylinder head, 1-1/4"

1шт.

b52aa

B52AA

COVER cylinder head, with breather (Casting)

1шт.

Prior to tractor No. 5409034

1шт.

When this cast cover is wanted, we furnish the following parts: 1 - 4060AA Cover, 1 - 01222AB1 Gasket, 2 - 01170AB Studs, 4 - 1/2" hex nuts, light, N.F. thread

1шт.

a1496aa

A1496AA

BREATHER with screens for B52AA cylinder head cover (See 3873AA)

1шт.

SCREW hex head cap, cylinder head, N.C. thread, 5/16" x 7/8"

2шт.

WASHER standard lock, cylinder head, 5/16"

2шт.

3873aa

3873AA

BREATHER less screens for 4060AA cylinder head cover (See A1496AA)

1шт.

SCREW hex head cap, cylinder head, N.C. thread, 5/16" x 3/4"

2шт.

WASHER standard lock, cylinder head, 5/16"

2шт.

3874aa

3874AA

SCREEN cylinder head, for 3873AA breather (See 03634AB)

1шт.

3943aa

3943AA

HEAD cylinder, with valve guides and valve inserts. Standard equipment for low cost fuel using A4451A pistons (Tractor No. 5408295 and after) (See 51AA).

1шт.

PLUG square head pipe, cylinder head, 1/2"

1шт.

PLUG square head pipe, cylinder head, 1-1/4"

1шт.

3947aa

3947AA

HEAD cylinder, with valve guides and valve inserts, for gasoline or low cost fuel for high altitudes when used with A4451A pistons (Tractor No. 5408295 and after) (See 51AA)

1шт.

PLUG square head pipe, cylinder head, 1/2"

1шт.

PLUG square head pipe, cylinder head, 1-1/4"

1шт.

4060aa

4060AA

COVER cylinder head, with breather (Steel stamping) (Tractor No. 5409034 and after) (See B52AA)

1шт.

4767aa

4767AA

HEAD cylinder, with valve guides and inserts, for LP gas

1шт.

4369a

4369A

X

PLUG crankcase filler, cylinder block (Use A4369A)

1шт.

a4369a

A4369A

PLUG crankcase filler, cylinder block

1шт.

4862a

4862A

BLOCK cylinder (Use 1293AA)

1шт.

4985a

4985A

SLEEVE crankcase filler, cylinder block (Prior to Tractor No. 5509680)

1шт.

0966ab

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

GASKET fiber, cylinder block, for 4369A filler plug (See O3523CK)

1шт.

01402ab

O1402AB

COVER hand hole, crankcase, cylinder block

4шт.

SCREW hex head cap, cylinder block, N.C. thread, 1/2" x 3/4"

8шт.

01403ab

A26526

GASKET

hand hole cover, cylinder block

4шт.

04400ab

O4400AB

PLUG starter motor opening, cylinder block

1шт.

04401ab

O4401AB

GASKET starter motor opening plug, cylinder block

1шт.

08194ab

O8194AB

SCREW cap, starter motor opening plug, cylinder block

1шт.

03523ck

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

Cylinder block, for A4369A filler plug (See O966AB) -226, 70 Duro, 1.984" ID x .139" Thk

1шт.

1293aa

1293AA

BLOCK cylinder, with bearing caps and liners, less cylinder sleeves

1шт.

SCREW hex head cap, cylinder block, N.F. thread, 5/8" x 2-1/4"

6шт.

SCREW hex head cap, cylinder block, N.F. thread, 5/8" x 2-1/2"

7шт.

NUT hex, cylinder block, light, N.F. thread, 5/8"

7шт.

WASHER standard lock, cylinder block, 5/8"

7шт.

TEE union, cylinder block, Dole A10, 3/16" tube size

1шт.

PLUG pipe, square head, cylinder block, 1/8"

1шт.

PLUG pipe, square head, cylinder block, 1/4"

1шт.

4044aa

4044AA

CONDUIT fastens along cylinder block for head light wire, generator wire and temperature gauge tube (Tractor No. 5509680 and after)

1шт.

a20629

A20629

GASKET

SET, of oil pan (Consists of: 1 - O1339AB, 1 - O1340AB and 1 - O1341AB)

1шт.

01189ab

A31037

GASKET

oil pan, for 93AA oil pump screen

1шт.

01339ab

O1339AB

X

GASKET oil pan, RH (Use A20629 KIT)

1шт.

01340ab

O1340AB

X

GASKET oil pan, LH (Use A20629 KIT)

1шт.

01341ab

O1341AB

X

GASKET oil pan, front (Use A20629 KIT)

1шт.

02846ab

A26676

GASKET

oil pan, for 93AA oil pump screen cap screw

3шт.

SCREW hex head cap, oil pan, N.C. thread, 3/8" x 5/8"

3шт.

08786ab

A27476

FILTER SCREEN

SCREEN oil pump, oil pan, float - O type (Tractor No. 5418607 and after) (See 93AA)

1шт.

12aa

12AA

PAN oil (Prior to Tractor No. 5418607) (See 3981AA)

1шт.

SCREW hex head cap, oil pan, N.C. thread, 1/2" x 1"

25шт.

WASHER standard lock, oil pan, 1/2"

25шт.

PLUG pipe, square head, oil pan, 1/4"

2шт.

PLUG pipe, square head, oil pan, 3/4"

1шт.

93aa

A28330

SCREEN

oil pump, oil pan (Prior to Tractor No. 5418607) (See O8786AB)

1шт.

SCREW hex head cap, oil pan, N.C. thread, 3/8" x 5/8"

3шт.

3981aa

3981AA

PAN oil (Tractor No. 5418607 and after) (See 12AA)

1шт.

SCREW hex head cap, oil pan, N.C. thread, 1/2" x 1"

25шт.

WASHER standard lock, oil pan, 1/2"

25шт.

4459a

4459A

COVER timing gear (Use 569AA)

1шт.

0796ab

O796AB

RETAINER crankshaft front felt, timing gear cover

1шт.

0801ab

O801AB

FELT washer, crankshaft, timing gear cover

1шт.

01211ab

A26482

GASKET

timing gear cover

1шт.

01703ab

O1703AB

SCREW crankshaft felt retainer, timing gear cover

3шт.

569aa

569AA

COVER timing gear, with camshaft thrust button

1шт.

SCREW hex head cap, timing gear cover, N.C. thread, 1/2" x 1-1/4"

3шт.

SCREW hex head cap, timing gear cover, N.C. thread, 1/2" x 2-1/2"

2шт.

WASHER standard lock, timing gear cover, 1/2"

5шт.

3597aa

3597AA

KIT

gaskets, engine

1шт.

Complete set consists of: 1 each of : 0801AB, 0806AB1, 0865AB, 03523CK, 01172AB2, 01189AB, 01205AB1, 01211AB, 01212AB, 01217AB, 01218AB, 01222AB1, 01339AB, 01340AB, 01341AB, 01361AB, 01363AB, 01580AB1, 01760AB, 01859AB, 01987AB, 03096AB, 05177AB, 06049AB, 07299AB, 07768AB, 2 each of: 01362AB and 01437AB, 3 of: 02846AB, and 4 each of: 01403AB and 01438AB

1шт.

4055aa

4055AA

GASKET

SET engine (Replacement after valve grinding job) Consists of: 1 - O1222AB1, 1 - O1172AB2, 2 - O1437AB, 4 - O1438AB and 2 - 01362AB

1шт.
