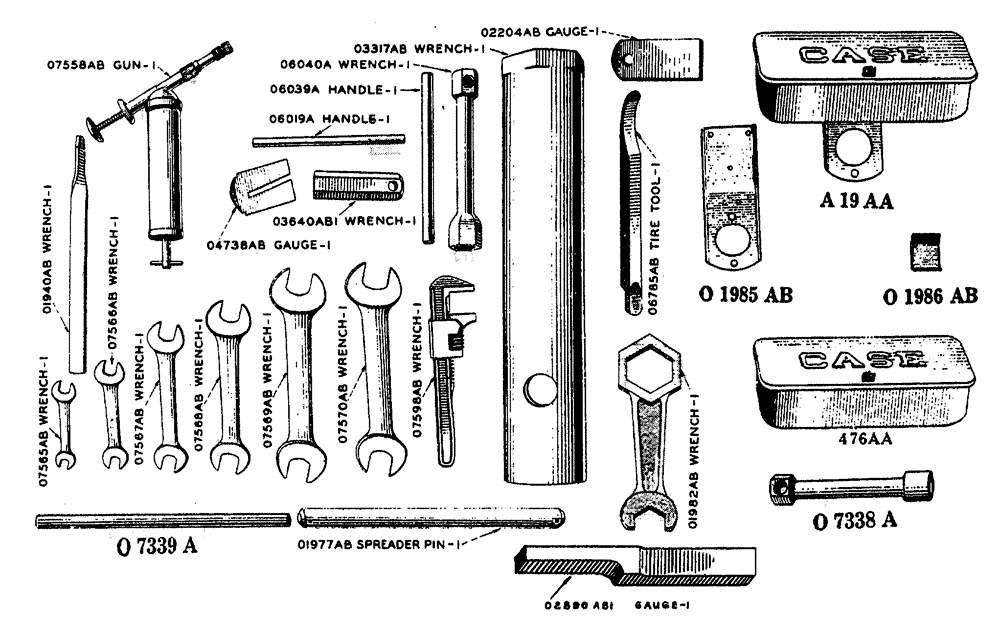

Запчасти Case IH L-SERIES (088) - TOOLS AND TOOLBOX (09) - CHASSIS/ATTACHMENTS

3330a

3330A

WRENCH spark plug, malleable, use O3640AB1

1шт.

06019a

O6019A

HANDLE for 3330A or O3640AB1 wrench, Start Year: 01-JAN-29

1шт.

06039a

O6039A

HANDLE for O6040A socket wrench, Start Year: 01-JAN-29

1шт.

06040a

O6040A

WRENCH socket, for connecting rod, Start Year: 01-JAN-29

1шт.

07338a

O7338A

WRENCH socket, large, Years: 01-JAN-29-01-JAN-30

1шт.

07339a

O7339A

HANDLE for 07338A socket wrench, Years: 01-JAN-29-01-JAN-30

1шт.

09429a1

O9429A1

BOX tool, special, used with tractors equipped with rice field draw bar, prior to tractor no. L335201, see 476AA and 2195AA, Start Year: 01-JAN-29

1шт.

BOLT 3/8" x 1 - 1/4" carriage, with square nut, N.C. thread

2шт.

WASHER 3/8" standard plain

2шт.

01940ab

O1940AB

WRENCH clutch adjusting, Start Year: 01-JAN-29

1шт.

01977ab

O1977AB

PIN spreader, for spreading engine and transmission, see 61AA, Start Year: 01-JAN-29

2шт.

PIN 1/4" x 1 - 1/2" cotter

2шт.

01982ab

O1982AB

WRENCH hub cap, Start Year: 01-JAN-29

1шт.

01985ab

O1985AB

BRACKET tool box, L335202 and above to tractor no. 4402720, see O5428AB, Years: 01-JAN-29-01-JAN-40

1шт.

01986ab

O1986AB

BRACE tool box, L335202 and above to tractor no. 4402720, see O5429AB, Years: 01-JAN-29-01-JAN-40

1шт.

RIVET 1/4" x 3/8" wagon box head

4шт.

RIVET 1/4" x 1/2" wagon box head

2шт.

02204ab

O2204AB

GUAGE valve clearance, Start Year: 01-JAN-29

1шт.

02214ab

O2214AB

THIMBLE for pressing on 01314AB1 clutch shaft felt washer, L304709 and below, Years: 01-JAN-29-01-JAN-34

1шт.

02890ab1

O2890AB1

GUAGE for setting clutch shaft bevel pinion, Start Year: 01-JAN-29

1шт.

03317ab

O3317AB

WRENCH socket, rear axle nut, Start Year: 01-JAN-33

1шт.

03640ab1

O3640AB1

WRECH for 07236A3 spark plug, Start Year: 01-JAN-29

1шт.

03946ab

O3946AB

WRENCH for adjusting rear axle bearing lock nut, Start Year: 01-JAN-35

1шт.

04738ab

O4738AB

GUAGE timing and assembly, ised with "Case" magneto, Start Year: 01-JAN-38

1шт.

05428ab

O5428AB

BRACKET tool box, tractor no. 4402720 and after, see O1985AB, Start Year: 01-JAN-40

1шт.

05429ab

O5429AB

BRACE tool box, tractor no. 4402720 and after, see O1986AB, Start Year: 01-JAN-40

1шт.

RIVET 1/4" x 3/8" wagon box head

3шт.

RIVET 1/4" x 1/2" wagon box head

1шт.

06785ab

O6785AB

TOOL tire, Start Year: 01-JAN-33

1шт.

07558ab

O7558AB

GUN grease, 5 oz. capacity, Lincoln no. 5950-1, Start Year: 01-JAN-29

1шт.

07565ab

O7565AB

WRENCH double end, 3/8" x 1/2", Start Year: 01-JAN-29

1шт.

07566ab

O7566AB

WRENCH double end, 7/16" x 9/16", Start Year: 01-JAN-29

1шт.

07567ab

O7567AB

WRENCH double end, 5/16" x 3/4", Start Year: 01-JAN-29

1шт.

07568ab

O7568AB

WRENCH double end, 13/16" x 7/8", Start Year: 01-JAN-29

1шт.

07569ab

O7569AB

WRENCH double end, 15/16" x 1 - 1/16", Start Year: 01-JAN-29

1шт.

07570ab

O7570AB

WRENCH double end, 1" x 1 - 1/8", Start Year: 01-JAN-29

1шт.

07598ab

O7598AB

WRENCH 9" adjustable, Start Year: 01-JAN-29

1шт.

a19aa

A19AA

BOX tool, with bracket and brace, L335202 and above to tractor no. 4402720, see 476AA and 2195AA, Years: 01-JAN-29-01-JAN-40

1шт.

61aa

61AA

PINS set of 2 for spreading engine and transmission, consists of;, Start Year: 01-JAN-29

1шт.

01977ab

O1977AB

PIN cotter

2шт.

PIN cotter, 1/4" x 1 - 1/2"

8шт.

a75aa

A75AA

SET of tools as furnished with tractor, consists of;, Start Year: 01-JAN-29

1шт.

06019a

O6019A

1шт.

06039a

O6039A

1шт.

01940ab

O1940AB

1шт.

01982ab

O1982AB

1шт.

03640ab1

O3640AB1

1шт.

04738ab

O4738AB

1шт.

07558ab

O7558AB

1шт.

07566ab

O7566AB

1шт.

07567ab

O7567AB

1шт.

07568ab

O7568AB

1шт.

07569ab

O7569AB

1шт.

07570ab

O7570AB

1шт.

07598ab

O7598AB

1шт.

394aa

394AA

PULLER cylinder sleeve, with O2661AB plate, Start Year: 01-JAN-29

1шт.

476aa

476AA

BOX tool, less bracket and brace, L335202 to tractor no. 4402720, see A19AA and 2195AA, Years: 01-JAN-29-01-JAN-40

1шт.

2195aa

2195AA

BOX tool, with bracket and brace, tractor no. 4402720 and after, see A19AA and 476AA, Start Year: 01-JAN-40

1шт.

BOLT 1/4" x 5/8" round head stove

4шт.

WASHER 1/4" standard lock

4шт.

WASHER 1/4" standard plain

1шт.
