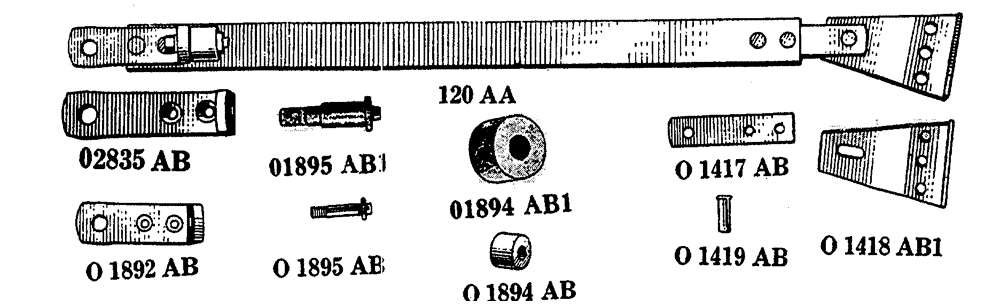

Запчасти Case IH L-SERIES (087) - DRAWBAR (09) - CHASSIS

4518a

4518A

BRACKET draw bar roller, L335203 and below, Start Year: 01-JAN-29

1шт.

4519a

4519A

ROLLER draw bar, L335203 and below, see 01894AB, Start Year: 01-JAN-29

1шт.

01415ab1

O1415AB1

ANGLE draw bar guide, L335203 and below, Start Year: 01-JAN-29

1шт.

01415ab2

O1415AB2

ANGLE draw bar guide, Start Year: 01-JAN-29

1шт.

RIVET 1/2" x 1 - 1/2" round head

4шт.

01416ab1

O1416AB1

SPACER draw bar guide angle, L335203 and below, Start Year: 01-JAN-29

2шт.

01417ab

O1417AB

STRAP draw bar, front, prior to tractor no. 4206602, Years: 01-JAN-29-01-JAN-38

2шт.

RIVET 5/8" x 1 - 7/8" round head

2шт.

01417ab1

O1417AB1

STRAP draw bar front, tractor no. 4206602 and after, Start Year: 01-JAN-38

2шт.

RIVET 5/8" x 1 - 7/8" round head

2шт.

01418ab

O1418AB

SUPPORT draw bar, front, L335203 and below, Start Year: 01-JAN-29

1шт.

01418ab1

O1418AB1

SUPPORT draw bar, front, from L335202 and above to tractor no. 4206602, Years: 01-JAN-29-01-JAN-38

1шт.

BOLT 5/8" x 2 - 1/4" machine, with hexagon nut, N.C. thread

2шт.

WASHER 5/8" standard lock

2шт.

01418ab2

O1418AB2

SUPPORT, draw bar, front, tractor no. 4206602 and after, Start Year: 01-JAN-38

1шт.

BOLT 5/8" x 2 - 1/4" machine, with hexagon nut

2шт.

WASHER 5/8" standard lock

2шт.

01419ab

O1419AB

PIN draw bar, front, prior to tractor no. 4206602, Years: 01-JAN-29-01-JAN-38

1шт.

PIN 3/16" x 1 - 1/4 cotter

1шт.

01419ab1

O1419AB1

PIN draw bar, front, tractor no. 4206602 and after, Start Year: 01-JAN-38

1шт.

PIN 1/4" x 1 - 1/2" cotter

1шт.

01506ab1

O1506AB1

STRAP draw bar, rear, L335203 and below, see 01892AB and 02835AB, Start Year: 01-JAN-29

1шт.

01892ab

O1892AB

STRAP draw bar, rear, use 02835AB

1шт.

01894ab

O1894AB

ROLLER draw bar, L335202 and above to tractor no. 4206602, see 4519A and 01894AB, Years: 01-JAN-29-01-JAN-38

1шт.

01894ab1

O1894AB1

ROLLER draw bar, tractor no. 4206602 and after, see 4519A and 01894AB, Start Year: 01-JAN-38

1шт.

01895ab

O1895AB

BOLT draw bar roller, L335202 and above to tractor no. 4206602, Years: 01-JAN-29-01-JAN-38

1шт.

NUT 3/4" hexagon, N.F. thread

1шт.

WASHER 3/4" standard lock

1шт.

01895ab1

O1895AB1

BOLT draw bar roller, tractor no. 4206602 and after, Start Year: 01-JAN-38

1шт.

NUT 3/4" hexagon, N.F. thread

1шт.

WASHER 3/4" standard lock

1шт.

02835ab

O2835AB

STRAP draw bar, rear, L355202 and above, see 01506AB, Start Year: 01-JAN-29

1шт.

RIVET 5/8" x 1 - 7/8" round head

4шт.

117aa

117AA

BAR draw, with roller, bracket, straps and supports, regular, L335203 and below, see 120AA, Start Year: 01-JAN-29

1шт.

120aa

120AA

BAR draw, regular or rice field, L335202 and above, see 117AA or 100AA, Start Year: 01-JAN-29

1шт.

1572a

1572A

WASHER channel, rice field, prior to tractor no. L335201, Start Year: 01-JAN-29

4шт.

4518a

4518A

BRACKET draw bar roller, rice field, prior to tractor no. L335201, Start Year: 01-JAN-29

1шт.

01417ab

O1417AB

STRAP draw bar, rice field, prior to tractor no. L335201, Start Year: 01-JAN-29

2шт.

RIVET 5/8" x 1 - 7/8" round head, rice field, prior to tractor no. L335201

2шт.

01506ab

O1506AB

STRAP draw bar rear, rice field, prior to tractor no. L335201, Start Year: 01-JAN-29

1шт.

01701ab

O1701AB

BAR draw, rice field, prior to tractor no. L335201, Start Year: 01-JAN-29

1шт.

01702ab

O1702AB

PLATE draw bar, rice field, prior to tractor no. L335201, Start Year: 01-JAN-29

1шт.

BOLT 1/2" x 1 - 3/4" machine, with hexagon nut, rice field, prior to tractor no. L335201

2шт.

BOLT 1/2" x 2 - 1/4" machine, with hexagon nut, rice field, prior to tractor no. L335201

2шт.

09429a1

O9429A1

BOX tool, rice field, prior to tractor no. L335201, rice field, prior to tractor no. L335201, Start Year: 01-JAN-29

1шт.

BOLT 3/8" x 1 - 1/4" carriage, with square nut, rice field, prior to tractor no. L335201

2шт.

WASHER 3/8" standard plain, rice field, prior to tractor no. L335201

2шт.

100aa

100AA

BAR draw, for rice field, prior to tractor no. L335201, Start Year: 01-JAN-29

1шт.

5425a

5425A

ROLLER draw bar, Pacific Coast Special, Start Year: 01-JAN-39

1шт.

05212ab

O5212AB

BOLT draw bar roller, Pacific Coast Special, Start Year: 01-JAN-39

1шт.

NUT 3/4" hexagon, N.F. thread, Pacific Coast Special

1шт.

WASHER 3/4" standard lock, Pacific Coast Special

1шт.

05214ab

O5214AB

PIN draw bar front, Pacific Coast Special, Start Year: 01-JAN-39

1шт.

PIN 1/4" x 1 - 3/4" cotter, Pacific Coast Special

1шт.

05215ab

O5215AB

PIN draw bar, rear, Pacific Coast Special, Start Year: 01-JAN-39

1шт.

PIN 3/8" x 2 - 1/2" cotter, Pacific Coast Special

1шт.

2067aa

2067AA

BAR draw, with roller strap, pins and roller, Pacific Coast Special, Start Year: 01-JAN-39

1шт.

863aa

863AA

BAR draw, raised hitch attachment, machinery item, consists of;, Start Year: 01-JAN-32

1шт.

03248ab

O3248AB

STRAP raised hitch

1шт.

03251ab

O3251AB

BRACKET raised hitch

1шт.

03252ab1

O3252AB1

STRAP raised hitch

1шт.

03257ab

O3257AB

SPACER raised hitch

1шт.

04812ab

O4812AB

BRACE R.H., raised hitch

1шт.

04813ab

O4813AB

BRACE L.H., raised hitch

1шт.
