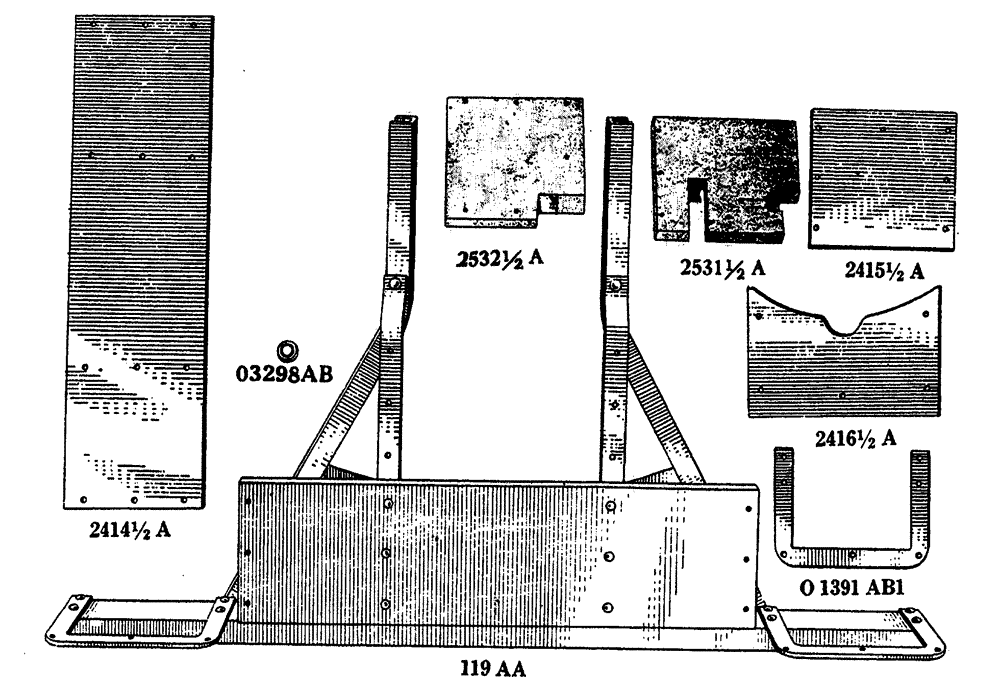

Запчасти Case IH L-SERIES (086) - PLATFORM (09) - CHASSIS

24141/2a

24141/2A

BOARD platform rear, Start Year: 01-JAN-29

1шт.

BOLT 5/16" x 1 - 1/2" carriage, with square nut, N.C. thread

6шт.

BOLT 5/16" x 1 - 3/4" carriage, with square nut, N.C. thread

6шт.

WASHER 5/16" standard lock

12шт.

24151/2a

24151/2A

BOARD platform side, see 2531½A and 2532½A, Start Year: 01-JAN-29

2шт.

BOLT 5/16" x 1 - 1/2" carriage, with square nut, N.C. thread

4шт.

BOLT 5/16" x 1 - 3/4" carriage, with square nut, N.C. thread

4шт.

WASHER 5/16" standard lock

8шт.

24161/2a

24161/2A

BOARD platform front, regular, see 2503½A, Start Year: 01-JAN-29

1шт.

BOLT 1/4" x 1 - 1/2" carriage, with square nut, N.C. thread

4шт.

WASHER 1/4" standard lock

4шт.

25031/2a

25031/2A

BOARD platform front, used with independent rear brakes, see 2416½A, Start Year: 01-JAN-39

1шт.

BOLT 5/16" x 1 - 1/2" carriage, with square nut, N.C. thread

4шт.

WASHER 5/16" standard lock

4шт.

25311/2a

25311/2A

BOARD platform, R.H., used with mechanical rear wheel brakes, see 2415½A, Start Year: 01-JAN-36

1шт.

25321/2a

25321/2A

BOARD platform, L.H., used with mechanical rear wheel brakes, see 2415½A, Start Year: 01-JAN-36

1шт.

01391ab1

O1391AB1

SUPPORT rear, fender, Start Year: 01-JAN-29

2шт.

BOLT 3/8" x 1" machine, with square nut, N.C. thread

6шт.

WASHER 3/8" standard lock

6шт.

RIVET 3/8" x 1 - 3/8" round head

8шт.

03298ab

O3298AB

BUSHING platform channel, Start Year: 01-JAN-34

4шт.

118aa

118AA

PLATFORM with channels, angles and supports, L335203 and below, see 119AA, Start Year: 01-JAN-29

1шт.

119aa

119AA

PLATFORM with channels, angles and supports, L335202 and above, to L300768 and below, see 118AA and A119AA, Years: 01-JAN-29-01-JAN-34

1шт.

a119aa

A119AA

PLATFORM with channels, angles and supports, L300767 and below, see 118AA and 119AA, Start Year: 01-JAN-34

1шт.
