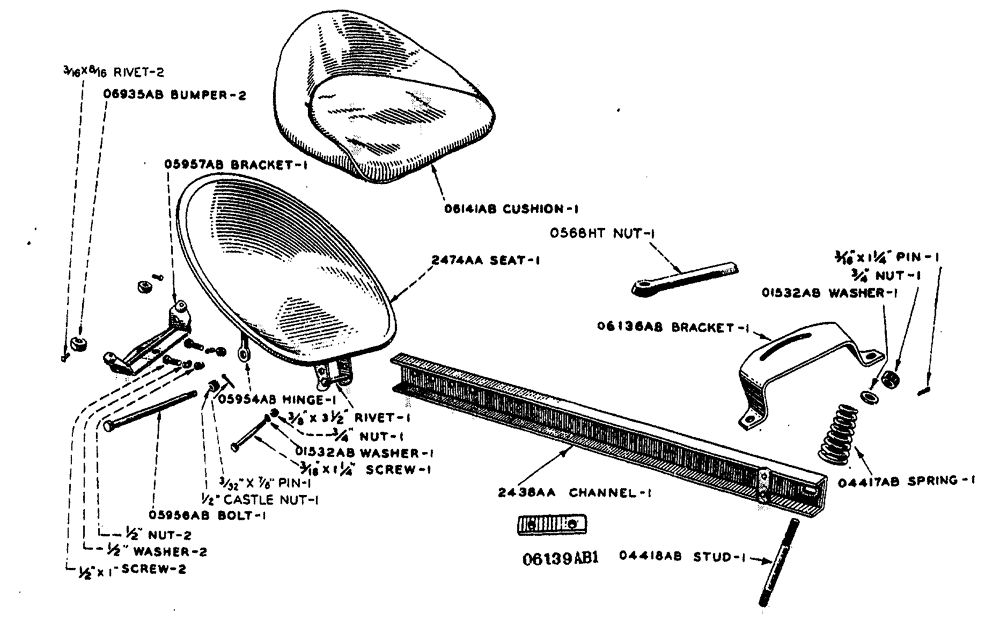

Запчасти Case IH L-SERIES (085) - TIP BACK SAFETY SEAT AND MOUNTING (09) - CHASSIS

01532ab

O1532AB

WASHER seat spring retainer, use O8147AB

1шт.

04417ab

O4417AB

X

SPRING seat, use O8145AB and O8146AB springs

1шт.

04418ab

O4418AB

STUD seat spring, Start Year: 01-JAN-40

1шт.

NUT 3/4" hexagon, light, N.F. thread

1шт.

PIN 3/16" x 1 - 1/4" cotter

1шт.

05954ab

O5954AB

HINGE seat, Start Year: 01-JAN-40

1шт.

05956ab

O5956AB

BOLT seat hinge, Start Year: 01-JAN-40

1шт.

NUT 1/2" light castle, N.F. thread

1шт.

PIN 3/32" x 7/8" cotter

1шт.

05957ab

O5957AB

BRACKET seat rear support, Start Year: 01-JAN-40

1шт.

SCREW 1/2" x 1" hexagon head cap, N.F. thread

2шт.

NUT 1/2" hexagon, light, N.F. thread

2шт.

WASHER 1/2" standard lock

2шт.

05958ab

A27124

BUMPER

seat rear support, use O6935AB

1шт.

06136ab

O6136AB

BRACKET seat mounting, Start Year: 01-JAN-40

1шт.

BOLT 1/2" x 1" machine, less nut, N.C. thread

1шт.

SCREW 5/8" x 1 - 1/4" hexagon head cap, N.C. thread

2шт.

WASHER 1/2" standard lock

1шт.

WASHER 5/8" standard lock

2шт.

WASHER 1/2" standard plain

1шт.

06139ab1

O6139AB1

PLATE seat channel bearing, Start Year: 01-JAN-40

1шт.

06141ab

O6141AB

CUSHION seat, Start Year: 01-JAN-40

1шт.

06935ab

A27124

BUMPER

seat rear support, Start Year: 01-JAN-40

2шт.

RIVET 3/16" x 8/16" brass tubular no. 2141

2шт.

07993ab

O7993AB

BOLT seat rear support bracket, used with A2474AA seat instead of 3/8" x 3 - 1/2" round head rivet, Start Year: 01-JAN-40

1шт.

NUT 3/8" light, castle, N.F. thread

1шт.

PIN 3/32" x 7/8" cotter

1шт.

08145ab

O8145AB

SPRING

seat, outside, Start Year: 01-JAN-40

1шт.

08146ab

O8146AB

SPRING seat, inside, Start Year: 01-JAN-40

1шт.

08147ab

A31266

WASHER

seat spring retainer, Start Year: 01-JAN-40

1шт.

0586ht

O586HT

NUT seat mounting plate, Start Year: 01-JAN-40

1шт.

2438aa

2438AA

CHANNEL seat, with bearing, use A2438AA

1шт.

a2438aa

A2438AA

CHANNEL seat, with bearing, Start Year: 01-JAN-40

1шт.

2474aa

2474AA

SEAT operators, use A2474AA

1шт.

RIVET 3/8" x 3 - 1/2" round head, see O7993AB

1шт.

a2474aa

A2474AA

SEAT operators, Start Year: 01-JAN-40

1шт.

2881aa

2881AA

TIP special, back safety seat complete with seat mounting, consists of above items, Start Year: 01-JAN-29

1шт.
