Запчасти Case IH L-SERIES (084) - OPERATORS SEAT (09) - CHASSIS

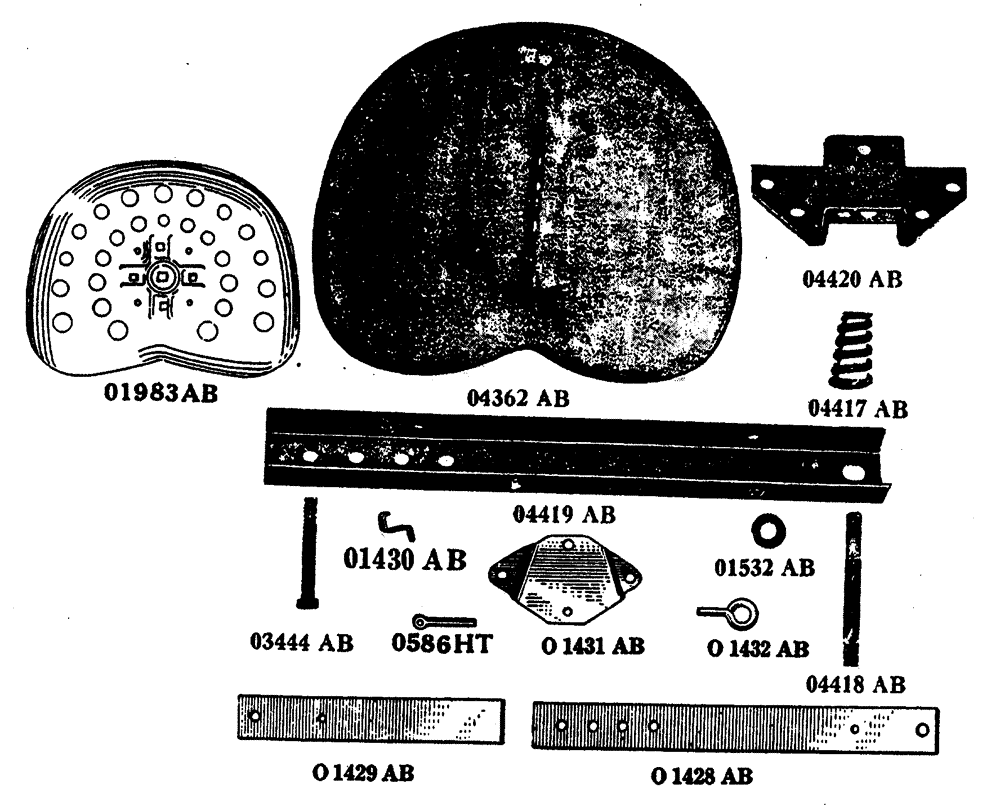

Схема запчастей Case IH L-SERIES - (084) - OPERATORS SEAT (09) - CHASSIS
01432ab
03444ab
04417ab
04420ab
01532ab
01429ab
0586ht
01431ab
01430ab
01428ab
01983ab
04362ab
04418ab
04419ab

№

Артикул

Название

Примечание

Количество

01428ab

O1428AB

LEAF seat spring, prior to tractor no. 4203338, see 04417AB, Years: 01-JAN-29-01-JAN-38

1шт.

01429ab

O1429AB

LEAF seat spring, short, prior to tractor no. 4203338, see 04417AB, Years: 01-JAN-29-01-JAN-38

1шт.

01430ab

O1430AB

CLIP seat spring, prior to tractor no. 4203338, Years: 01-JAN-29-01-JAN-38

2шт.

BOLT /16" x 1" machine, with square nut, N.C. thread

2шт.

WASHER 5/16" standard lock

2шт.

01431ab

O1431AB

PLATE seat spring, prior to tractor no. 4203338, Years: 01-JAN-29-01-JAN-38

1шт.

SCREW 5/8" x 1 - 1/4" hexagon head cap, N.C. thread

2шт.

SCREW 3/4" x 2 - 1/2" hexagon head cap, N.C. thread

1шт.

WASHER 5/8" standard lock

2шт.

WASHER 3/4" standard lock

1шт.

01432ab

O1432AB

PIN seat spring, prior to tractor no. 4203338, Years: 01-JAN-29-01-JAN-38

1шт.

01532ab

O1532AB

WASHER seat spring stud, tractor no. 4203338 and after, Start Year: 01-JAN-38

1шт.

01983ab

O1983AB

SEAT operator's, regular, see O4362AB, Years: 01-JAN-29-01-JAN-38

1шт.

BOLT 1/2" x 1 - 1/4" carriage, N.C. thread

1шт.

WASHER 1/2" standard lock

1шт.

03444ab

O3444AB

BOLT pivot, seat channel, tractor no. 4203338 and after, Start Year: 01-JAN-38

1шт.

NUT 5/8" hexagon, castle, N.F. thread

1шт.

PIN 1/8" x 1 - 1/4" cotter

1шт.

04362ab

O4362AB

SEAT operators, special, see O1983AB, Start Year: 01-JAN-38

1шт.

04417ab

O4417AB

X

SPRING seat, tractor no. 4203338 and after, see O1428AB and O1429AB, Start Year: 01-JAN-38

1шт.

04418ab

O4418AB

STUD seat spring, tractor no. 420338 and after, Start Year: 01-JAN-38

1шт.

NUT 3/4" hexagon, N.F. thread

1шт.

PIN 3/16" x 1 - 1/4" cotter

1шт.

04419ab

O4419AB

CHANNEL seat, tractor no. 4203338 and after, Start Year: 01-JAN-38

1шт.

04420ab

O4420AB

BRACKET seat mounting, tractor no. 4203338 and after, Start Year: 01-JAN-38

1шт.

SCREW 5/8" x 1 - 1/4" hexagon head cap, N.C. thread

2шт.

04946ab

O4946AB

REST back, operator's seat, Pacific Coast Special, Start Year: 01-JAN-39

1шт.

04947ab

O4947AB

SPRING operators back rest, Pacific Coast Special, Start Year: 01-JAN-39

1шт.

0586ht

O586HT

NUT handle, under seat, prior to tractor no. 4203338, Years: 01-JAN-29-01-JAN-38

1шт.

Выбрано товаров: 29
