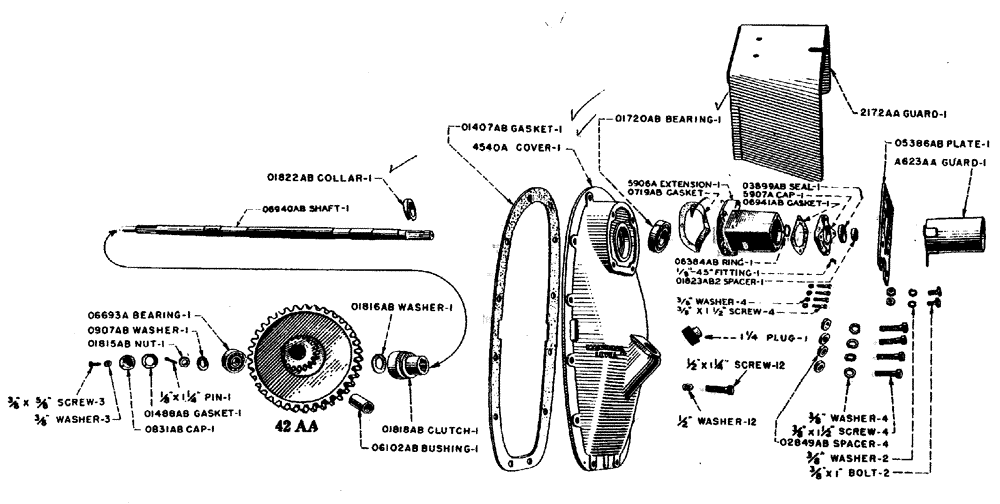

Запчасти Case IH L-SERIES (083) - POWER TAKE-OFF WITH LONG SHAFT (06) - POWER TRAIN

4540a

4540A

COVER rear, transmission case, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

PLUG 1 - 1/4" pipe, square head, ASAE standard dimensions, tractor no. L335203 and after

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread, ASAE standard dimensions, tractor no. L335203 and after

12шт.

WASHER 1/2" standard lock, ASAE dimensions, tractor no. L335203 and after

12шт.

5906a

5906A

EXTENSION power take off shaft rear bearing, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

SCREW 1/2" x 1 - 1/2" hexagon head cap, N.C. thread, ASAE standard dimensions, tractor no. L335203 and after

4шт.

WASHER 1/2" standard lock, ASAE dimensions, tractor no. L335203 and after

4шт.

5907a

5907A

CAP power take off shaft rear bearing, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

FITTING 1/8", 45 degree lubricating, Lincoln no. 5000, ASAE standard dimensions, tractor no. L335203 and after

1шт.

06693a

O6693A

BEARING power take off, front, New Departure no. 1305, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

0719ab

O719AB

GASKET for A4541A cap and 5906A extension, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

0831ab

O831AB

CAP power take off, front, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

SCREW 3/8" x 5/8" hexagon head cap, N.C. thread, ASAE standard dimensions, tractor no. L335203 and after

3шт.

WASHER 3/8" standard lock, ASAE dimensions, tractor no. L335203 and after

3шт.

0907ab

O907AB

WASHER power take off shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

01407ab

O1407AB

X

GASKET transmission case rear cover, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

01488ab

A26538

GASKET

for 0831AB front cap, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

01720ab

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING power take off shaft, rear, New Departure no. 1207, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

01815ab

A26597

NUT

power take off shaft, front, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

PIN 1/8" x 1 - 1/4" cotter, ASAE standard dimensions, tractor no. L335203 and after

1шт.

01816ab

O1816AB

WASHER power take off shaft, front, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

01818ab

O1818AB

CLUTCH gear, power take off, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

01822ab

A26604

COLLAR

power take off shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

01823ab

A26605

SPACER

power take off shaft, used with A4541A cap and 5906A extension, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

02849ab

O2849AB

SPACER for 05386AB mounting plate, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

03899ab

A26760

OIL SEAL

oil, power take off rear bearing, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

05386ab

O5386AB

PLATE mounting, power take off guard, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

BOLT 3/8" x 1" carriage, with hexagon nut, ASAE standard dimensions, tractor no. L335203 and after

2шт.

SCREW 3/8" x 1 - 1/2" hexagon head cap, N.C. thread, ASAE standard dimensions, tractor no. L335203 and after

4шт.

WASHER 3/8" standard lock, ASAE dimensions, tractor no. L335203 and after

4шт.

WASHER 3/8" standard plain, ASAE dimensions, tractor no. L335203 and after

2шт.

WASHER 3/8" type 40 no. 4020-26 shakeproof lockwasher, ASAE standard dimensions, tractor no. L335203 and after

2шт.

06102ab

O6102AB

BUSHING power take off gear, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

06384ab

O6384AB

RING snap, power take off shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

06940ab

O6940AB

SHAFT power take off, 1 - 3/8" spline x 54 29/32" long, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

PIN 1/8" x 1 - 1/4" cotter, ASAE standard dimensions, tractor no. L335203 and after

1шт.

06941ab

O6941AB

GASKET power take off rear bearing cap, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

42aa

42AA

GEAR power take off, with bushing, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

a623aa

A623AA

GUARD tubular, end of power take off shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

2172aa

A27335

GUARD

power take off, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

5906a

5906A

EXTENSION power take off shaft rear bearing, parts required to convert short shaft to long shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

SCREW 1/2" x 1 - 1/2" hexagon head cap, N.C. thread, parts required to convert short shaft to long shaft power take off, ASAE standard dimensions, tractor no. L335203 and after

4шт.

WASHER 1/2" standard lock, parts required to convert short shaft to long shaft power take off, ASAE dimensions, tractor no. L335203 and after

4шт.

5907a

5907A

CAP power take off shaft rear bearing, parts required to convert short shaft to long shaft power take off, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

FITTING 1/8", 45 degree, lubricating, Lincoln no. 5200, parts required to convert short shaft to long shaft power take off, ASAE standard dimensions, tractor no. L335203 and after

1шт.

0719ab

O719AB

GASKET for 5906A extension, parts required to convert short shaft to long shaft power take off, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

0907ab

O907AB

WASHER power take off shaft, parts required to convert short shaft to long shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

01488ab

A26538

GASKET

for 0831AB front cap, parts required to convert short shaft to long shaft power take off, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

01815ab

A26597

NUT

power take off shaft, front, parts required to convert short shaft to long shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

PIN 1/8" x 1 - 1/4" cotter, parts required to convert short shaft to long shaft power take off, ASAE standard dimensions, tractor no. L335203 and after

1шт.

01816ab

O1816AB

WASHER power take off shaft, front, parts required to convert short shaft to long shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

01823ab

A26605

SPACER

power take off shaft, parts required to convert short shaft to long shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

03899ab

A26760

OIL SEAL

oil, power take off rear bearing, parts required to convert short shaft to long shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

05386ab

O5386AB

PLATE mounting, power take off guard, parts required to convert short shaft to long shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

05386ab

O5386AB

PLATE mounting, power take off guard, parts required to convert short shaft to long shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

BOLT 3/8" x 1" carriage, with hexagon nut, parts required to convert short shaft to long shaft power take off, ASAE standard dimensions, tractor no. L335203 and after

2шт.

SCREW 3/8" x 1 - 1/2" hexagon head cap, N.C. thread, parts required to convert short shaft to long shaft power take off, ASAE standard dimensions, tractor no. L335203 and after

4шт.

WASHER 3/8" standard lock, parts required to convert short shaft to long shaft power take off, ASAE dimensions, tractor no. L335203 and after

4шт.

WASHER 3/8" standard plain, parts required to convert short shaft to long shaft power take off, ASAE dimensions, tractor no. L335203 and after

2шт.

WASHER 3/8" type 40 no. 4020-26 shakeproof lock, parts required to convert short shaft to long shaft power take off, ASAE standard dimensions, tractor no. L335203 and after

2шт.

06037ab

A26982

GASKET

transmission case top cover, parts required to convert short shaft to long shaft power take off, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

06384ab

O6384AB

RING snap, power take off shaft, parts required to convert short shaft to long shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

06940ab

O6940AB

SHAFT power take off, 1 -3/8" spline x 54 29/32" long, parts required to convert short shaft to long shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

PIN 1/8" x 1 - 1/4" cotter, parts required to convert short shaft to long shaft power take off, ASAE standard dimensions, tractor no. L335203 and after

1шт.

06941ab

O6941AB

GASKET power take off rear bearing cap, parts required to convert short shaft to long shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

a623aa

A623AA

GUARD tubular, end of power off shaft, parts required to convert short shaft to long shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.

2172aa

A27335

GUARD

power take off, parts required to convert short shaft to long shaft, ASAE standard dimensions, tractor no. L335203 and after, Start Year: 01-JAN-29

1шт.
