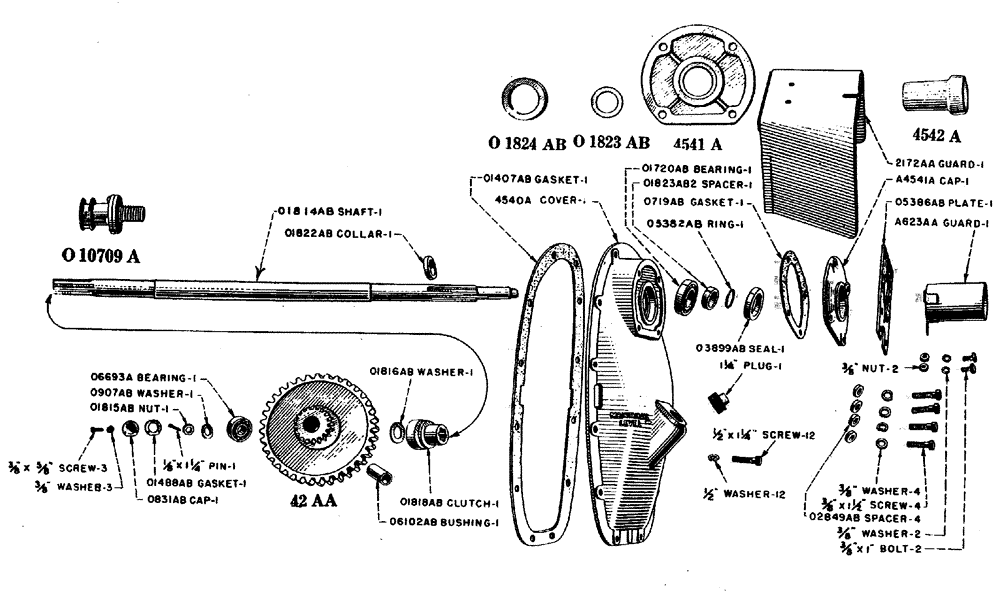

Запчасти Case IH L-SERIES (082) - POWER TAKE-OFF WITH SHORT SHAFT (06) - POWER TRAIN

4540a

4540A

COVER transmission rear, Start Year: 01-JAN-29

1шт.

PLUG 1 - 1/4" pipe, square head

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

12шт.

WASHER 1/2" standard lock

12шт.

4541a

4541A

X

CAP power take off cover, used with O1824AB felt, Years: 01-JAN-29-01-JAN-38

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N. C. thread

4шт.

WASHER 1/2" standard lock

4шт.

a4541a

A4541A

CAP power take off cover, used with O3899AB oil seal, Start Year: 01-JAN-38

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

4шт.

WASHER 1/2" standard lock

4шт.

4542a

4542A

GUARD tubular, end of power take off shaft, prior to tractor no. 4300000, see A623AA, Years: 01-JAN-29-01-JAN-39

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

1шт.

WASHER 1/2" standard lock

1шт.

4543a

4543A

BUSHING power take off gear, use O6102AB

1шт.

06693a

O6693A

BEARING power take off, front, New Departure no. 1305, Start Year: 01-JAN-29

1шт.

0719ab

O719AB

GASKET for 4541A or A4541A cap, Start Year: 01-JAN-29

1шт.

0831ab

O831AB

CAP power take off, front, Start Year: 01-JAN-29

1шт.

SCREW 3/8" x 5/8" hexagon head cap, N.C. thread

3шт.

WASHER 3/8" standard lock

3шт.

0907ab

O907AB

WASHER power take off shaft, Start Year: 01-JAN-29

1шт.

01407ab

O1407AB

X

GASKET transmission case rear cover, Start Year: 01-JAN-29

1шт.

01488ab

A26538

GASKET

for O831AB front cap, Start Year: 01-JAN-29

1шт.

01720ab

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING power take off shaft, rear, New Departure no. 1207, Start Year: 01-JAN-29

1шт.

01814ab

O1814AB

SHAFT power take off, 1 - 3/8" spline x 47 9/16" long, prior to tractor no. 4300000, used with 4542A guard, Years: 01-JAN-29-01-JAN-39

1шт.

01814ab1

O1814AB1

SHAFT power take off, 1 - 3/8" spline x 47 9/16" long, tractor no. 4300000 and after, used with A623AA guard, 01814AB can be used, Start Year: 01-JAN-39

1шт.

01815ab

A26597

NUT

power take off shaft, front, Start Year: 01-JAN-29

1шт.

PIN 1/8" x 1 - 1/4" cotter

1шт.

01816ab

O1816AB

WASHER power take off, front, Start Year: 01-JAN-29

1шт.

01818ab

O1818AB

CLUTCH gear, power take off, Start Year: 01-JAN-29

1шт.

01822ab

A26604

COLLAR

power take off shaft, Start Year: 01-JAN-29

1шт.

01823ab

A26605

SPACER

power take off shaft, used with 4541A cap, Years: 01-JAN-29-01-JAN-38

1шт.

01823ab1

O1823AB1

SPACER power take off shaft, used with A4541A cap, Years: 01-JAN-38-01-JAN-39

1шт.

01823ab2

A26606

SPACER

power take off shaft, used with A4541A cap, Start Year: 01-JAN-39

1шт.

01824ab

O1824AB

FELT end cover cap, used with 4541A cap, see O3899AB, Years: 01-JAN-29-01-JAN-38

1шт.

02849ab

O2849AB

SPACER for 05386AB mounting plate, tractor no. 4300000 and after, Start Year: 01-JAN-39

4шт.

03899ab

A26760

OIL SEAL

oil, power take off rear bearing, used with A4541A cap, see O1824AB, Start Year: 01-JAN-38

1шт.

05382ab

O5382AB

RING snap, power take off shaft, tractor no. 4300000 and after, used with O1814AB1 shaft, Start Year: 01-JAN-39

1шт.

05386ab

O5386AB

PLATE mounting, power take off guard, tractor no. 4300000 and after, Start Year: 01-JAN-39

1шт.

05386ab

O5386AB

BOLT 3/8" x 1" carriage, with hexagon nut

2шт.

SCREW 3/8" x 1 - 1/2" hexagon head cap, N.C. thread

4шт.

WASHER 3/8" standard lock

4шт.

WASHER 3/8" standard plain

2шт.

WASHER 3/8" type 40 no. 4020-26 shakeproof lock

2шт.

06102ab

O6102AB

BUSHING power take off gear, Start Year: 01-JAN-29

1шт.

010709a

O10709A

ADAPTER or coupling, used with McCormick Deering Loader, special, Start Year: 01-JAN-29

1шт.

42aa

42AA

GEAR power take off, with bushing, Start Year: 01-JAN-29

1шт.

129aa

129AA

GUARD power take off, use;

1шт.

02849ab

O2849AB

SPACER for 05386AB mounting plate, tractor no. 4300000 and after

4шт.

05386ab

O5386AB

BOLT 3/8" x 1" carriage, with hexagon nut

1шт.

2172aa

A27335

GUARD

1шт.

BOLTS 3/8" x 1", carriage

2шт.

SCREWS 3/8" x 1 - 1/2" cap

4шт.

LOCKWASHER 3/8"

4шт.

WASHER 3/8", plain

2шт.

LOCKWASHER 3/8", shakeproof

2шт.

320aa

320AA

GUARD power take off, use;

1шт.

02849ab

O2849AB

SPACER for 05386AB mounting plate, tractor no. 4300000 and after

4шт.

05386ab

O5386AB

BOLT 3/8" x 1" carriage, with hexagon nut

1шт.

2172aa

A27335

GUARD

1шт.

BOLTS 3/8" x 1" carriage

2шт.

SCREWS 3/8" x 1 - 1/2" cap

4шт.

LOCKWASHER 3/8"

4шт.

WASHER 3/8" plain

2шт.

LOCKWASHER 3/8", shakeproof

2шт.

a623aa

A623AA

GUARD tubular, end of power take off shaft, tractor no. 4300000 and after, see 4542A, Start Year: 01-JAN-39

1шт.

2172aa

A27335

GUARD

power take off

1шт.
