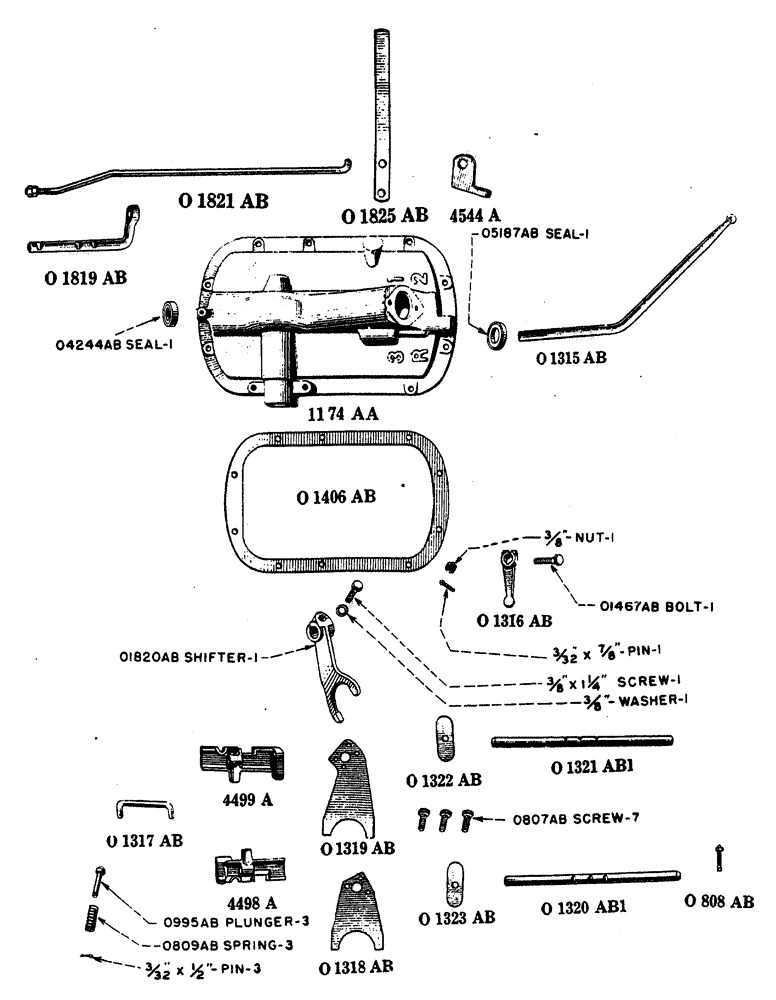

Запчасти Case IH L-SERIES (079) - GEAR SHIFT PARTS (06) - POWER TRAIN

24171/2a

24171/2A

PLUG transmission case top cover, Start Year: 01-JAN-29

1шт.

4498a

4498A

SHIFTER high and low gear, Start Year: 01-JAN-29

1шт.

4499a

4499A

SHAFTER intermediate and reverse gear, Start Year: 01-JAN-29

1шт.

4501a

4501A

COVER top, transmission case, use 1174AA

1шт.

4544a

4544A

BRACKET power take off hand lever, Start Year: 01-JAN-29

1шт.

BOLT 1/2" x 1 - 1/2" machine, with hexagon nut

1шт.

SCREW 1/2" x 1 - 3/4" hexagon head cap, N.C. thread

1шт.

WASHER 1/2" standard lock

1шт.

5491a

5491A

COVER tap, transmission case, use 2209AA

1шт.

0807ab

O807AB

SCREW cap, gear shifter, Start Year: 01-JAN-29

7шт.

0808ab

O808AB

SCREW set, gear shifter shaft, Start Year: 01-JAN-29

2шт.

NUT 3/8" hexagon, N.C. thread

2шт.

0809ab

O809AB

SPRING gear shifter and power take off, Start Year: 01-JAN-29

3шт.

0995ab

O995AB

PLUNGER gear shifter and power take off shifter, Start Year: 01-JAN-29

3шт.

PIN 3/32" x 1/2" cotter

3шт.

01315ab

O1315AB

LEVER gear shift hand, prior to tractor no. 4402720, see O5426AB, Years: 01-JAN-29-01-JAN-40

1шт.

KEY no. A Woodruff

1шт.

01316ab

O1316AB

ARM gear shifter, Start Year: 01-JAN-29

1шт.

01317ab

O1317AB

INTERLOCK gear shifter, Start Year: 01-JAN-29

1шт.

01318ab

O1318AB

FORK high and low gear, Start Year: 01-JAN-29

1шт.

01319ab

O1319AB

FORK intermediate and reverse gear, Start Year: 01-JAN-29

1шт.

01320ab1

O1320AB1

SHAFT high and low shifter, Start Year: 01-JAN-29

1шт.

01321ab1

O1321AB1

SHAFT intermediate and reverse shifter, Start Year: 01-JAN-29

1шт.

01322ab

O1322AB

PLATE shifter shaft end, Start Year: 01-JAN-29

2шт.

01323ab

A26503

GASKET

shifter shaft end plate, Start Year: 01-JAN-29

2шт.

01406ab

A26982

GASKET

transmisson case top cover, use O6037AB

1шт.

01467ab

O1467AB

BOLT gear shifter arm, Start Year: 01-JAN-29

1шт.

NUT 3/8" castle, light, N.F. thread

1шт.

PIN 3/32" x 7/8" cotter

1шт.

01819ab

O1819AB

LEVER power take off shifter, prior to tractor no. 4402720, Years: 01-JAN-29-01-JAN-40

1шт.

01819ab1

O1819AB1

LEVER power take off shifter, tractor no. 4402720 and after, Start Year: 01-JAN-40

1шт.

NUT 1/2" hexagon, jam, N.C. thread

2шт.

NUT 5/8" hexagon, jam, N.C. thread

2шт.

01820ab

O1820AB

SHIFTER power take off, Start Year: 01-JAN-29

1шт.

SCREW 3/8" x 1 - 1/4" hexagon head cap, N.C. thread

1шт.

WASHER 3/8" standard lock

1шт.

01821ab

O1821AB

ROD power take off shifter, prior to tractor no. 4402720, Years: 01-JAN-29-01-JAN-40

1шт.

NUT 1/2" hexagon, N.C. thread

2шт.

PIN 1/8" x 3/4" cotter

1шт.

01821ab1

01821AB1

ROD power take off shifter, tractor no. 4402720 and after, Start Year: 01-JAN-40

1шт.

NUT 1/2" hexagon, jam, N.C. thread

1шт.

PIN 1/8" x 3/4" cotter

1шт.

01825ab

O1825AB

LEVER power take off hand, Start Year: 01-JAN-29

1шт.

03098ab

O3098AB

PLUG power take off shifter link hole, in transmission case top cover, Start Year: 01-JAN-29

1шт.

04244ab

O4244AB

SEAL oil, power take off shifter, tractor no. 4402720 and after, Start Year: 01-JAN-40

1шт.

05187ab

A26862

OIL SEAL

SEAL oil, gear shift lever, tractor no. 4402720 and after, Start Year: 01-JAN-40

1шт.

05417ab

O5417AB

PLUG end, steering column, tractor no. 4402720 and after, Start Year: 01-JAN-40

1шт.

05426ab

O5426AB

LEVER gear shift hand, tractor no. 4402720 and after, see O1315AB, Start Year: 01-JAN-40

1шт.

06037ab

A26982

GASKET

transmission case top cover, Start Year: 01-JAN-29

1шт.

1174aa

1174AA

COVER transmission case top, prior to tractor no. 44020720, used with worm and worm wheel type steering gear, see 2209AA, Years: 01-JAN-29-01-JAN-40

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

8шт.

SCREW 1/2" x 2 - 3/4" hexagon head cap, N.C. thread

2шт.

WASHER 1/2" standard lock

10шт.

SCREW 1/2" x 2" flat dog point square head set

1шт.

NUT 1/2" hexagon, jam, N.C. thread

1шт.

2209aa

2209AA

COVER transmission case top with bushing, tractor no. 4402720 and after, used with cam and cam lever type steering gear, see 1174AA, Start Year: 01-JAN-40

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

8шт.

SCREW 1/2" x 1 - 3/4" hexagon head cap, N.C. thread

2шт.

WASHER 1/2" standard lock

10шт.
