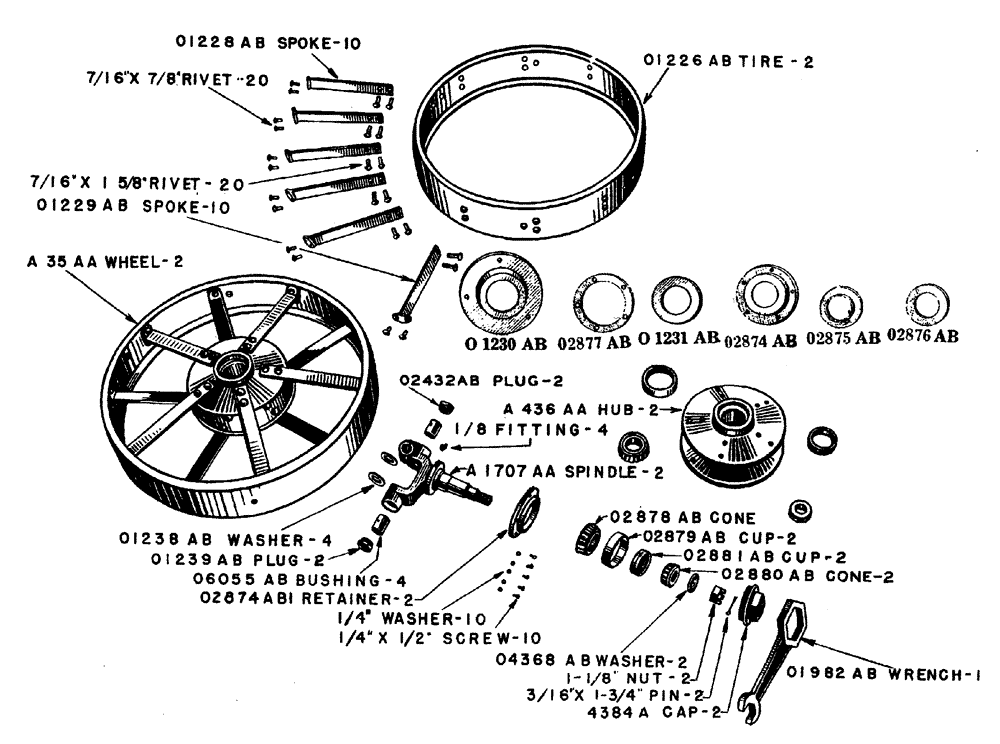

Запчасти Case IH L-SERIES (073) - FRONT WHEEL, STEEL (06) - POWER TRAIN

4384a

4384A

X

CAP front wheel hub, Start Year: 01-JAN-29

2шт.

4496a

4496A

HUB front wheel, use 436AA

1шт.

A4496A or A436AA hub, used on tractors from L324436 to L325408, L325476 to L326401 and all tractors after L326453

1шт.

a4496a

A4496A

HUB front wheel, use A436AA

1шт.

A4496A or A436AA hub, used on tractors from L324436 to L325408, L325476 to L326401 and all tractors after L326453

1шт.

4520a

4520A

BUSHING for steering spindles, use O6055AB

1шт.

0906ab

O906AB

WASHER steering spindle, L324436 and before, see O2887AB1 and O4368AB, Years: 01-JAN-29-01-JAN-31

2шт.

01226ab

O1226AB

TIRE front wheel, Start Year: 01-JAN-29

2шт.

01228ab

O1228AB

SPOKE outer front wheel, Start Year: 01-JAN-29

10шт.

RIVET 7/16" x 7/8" round head

20шт.

RIVET 7/16" x 1 - 5/8" round head

20шт.

01229ab

O1229AB

SPOKE inner, front wheel, Start Year: 01-JAN-29

10шт.

RIVET 7/16" x 7/8" round head

20шт.

RIVET 7/16" x 1 - 5/8" round head

20шт.

01230ab

O1230AB

GUARD dust for 4496A hub, L336454 and before, see O2875AB, Years: 01-JAN-29-01-JAN-31

2шт.

SCREW 1/4" x 20 x 1" countersunk head, machine

6шт.

01231ab

O1231AB

FELT

WASHER felt for 4496A hub, L326454 and before, see O2876AB, Years: 01-JAN-29-01-JAN-31

2шт.

01238ab

O1238AB

WASHER thrust, steering spindle, Start Year: 01-JAN-29

4шт.

01239ab

A7356

PLUG

lower, for A1707AAand 2874AA steering spindles, see O2432AB, Start Year: 01-JAN-29

2шт.

01461ab

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

CUP front wheel outer bearing, Timken no, 14274, L326454 and before, see O2881AB, Years: 01-JAN-29-01-JAN-31

2шт.

01462ab

13821V

CONE

front wheel outer bearing, Timken no. 14125, L326454 and before, see O2280AB, Years: 01-JAN-29-01-JAN-31

2шт.

01528ab1

A26542

LOCK WASHER

lock, steering spindle nut, Start Year: 01-JAN-29

2шт.

01543ab

O1543AB

CUP front wheel inner bearing, Timken no. 354, L326454 and before, see O2879AB, Years: 01-JAN-29-01-JAN-31

2шт.

01544ab

A26545

ROLLER BEARING,45mm ID x 21.69mm W

CONE front wheel inner bearing, Timken no. 354, L326454 and before, see O2878AB, Years: 01-JAN-29-01-JAN-31

2шт.

01669ab

O1669AB

PIN front axle king, Start Year: 01-JAN-29

2шт.

01982ab

O1982AB

WRENCH front wheel hub cap, Start Year: 01-JAN-29

1шт.

02432ab

O2432AB

PLUG upper, for A1707AA or 2874AA steering spindles, tapped for oil fitting, see O1239AB, Start Year: 01-JAN-29

2шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

2шт.

02725ab

O2725AB

GASKET front wheel hub dust guard, L326451 and before, see O2877AB, Years: 01-JAN-29-01-JAN-31

2шт.

02874ab

O2874AB

RETAINER front wheel hub, use O2874AB1

1шт.

02874ab1

O2874AB1

RETAINER front wheel hub, L326453 and above, Start Year: 01-JAN-31

2шт.

SCREW 1/4" x 1/2" round head machine, N.C. thread

10шт.

WASHER 1/4" standard lock

10шт.

02875ab

O2875AB

RETAINER front wheel felt, outer, L326453 and above to tractor no. 4203136, Years: 01-JAN-31-01-JAN-38

2шт.

02876ab

O2876AB

WASHER felt, for A4496A hub, L326453 and above to tractor no. 4203136, see O1231AB and O2876AB1, Years: 01-JAN-31-01-JAN-38

2шт.

02876ab1

O2876AB1

WASHER felt, for A4496A hub, tractor no. 4203136 and after, see O1231AB and O2876AB, Start Year: 01-JAN-38

2шт.

02877ab

O2877AB

GASKET front wheel hub dust guard, L326453 and above, see O2725AB, Start Year: 01-JAN-31

2шт.

02878ab

O2878AB

CONE front wheel inner bearing, Timken no. 3776, L326453 and above, see O1544AB, Start Year: 01-JAN-31

2шт.

02879ab

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP front wheel inner bearing, Timken no. 3720, L326453 and above, see O1543AB, Start Year: 01-JAN-31

2шт.

02880ab

482363C91

BEARING ASSY,31.75mm ID x 25.4mm W

CONE front wheel outer bearing, Timken no. 3580, L326453 and above, see O1462AB, Start Year: 01-JAN-31

2шт.

02881ab

50213V

BEARING CUP

CUP front wheel outer bearing, Timken no. 2523, L326453 and above, see O1461AB, Start Year: 01-JAN-31

2шт.

02887ab1

A26681

BEARING WASHER

WASHER steering spindle, L324435 and above to tractor no. 4203136, see O906AB and O4368AB, Years: 01-JAN-31-01-JAN-38

2шт.

04368ab

A26789

BEARING WASHER

WASHER for A1707AB steering spindle Tractor no. 4203136 and after, see O906AB or O2887AB1, Start Year: 01-JAN-38

2шт.

06055ab

O6055AB

BUSHING for A1707AA and 2874AA steering spindles, Start Year: 01-JAN-29

4шт.

35aa

35AA

WHEEL front, with bearing cups and rivets, L326454 and below, see 98AA, consists of;, Years: 01-JAN-29-01-JAN-31

2шт.

436aa

436AA

1шт.

01226ab

O1226AB

1шт.

01228ab

O1228AB

5шт.

01229ab

O1229AB

5шт.

a35aa

A35AA

WHEEL front, with bearing cups and rivets, L326453 and above, see A98AA, consists of;, Start Year: 01-JAN-31

2шт.

a436aa

A436AA

1шт.

01226ab

O1226AB

1шт.

01228ab

O1228AB

5шт.

01229ab

O1229AB

5шт.

98aa

98AA

WHEEL front, extra heavy, L326454 and below, see 35AA, Years: 01-JAN-29-01-JAN-31

2шт.

a98aa

A98AA

WHEEL front, extra heavy, L326453 and above, see A35AA, Start Year: 01-JAN-31

2шт.

436aa

436AA

HUB front wheel, with bearing cups, L326454 and below, consists of;, Years: 01-JAN-29-01-JAN-31

2шт.

4496a

4496A

1шт.

01461ab

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

1шт.

01543ab

O1543AB

1шт.

A4496A or A436AA hub, used on tractors from L324436 to L325408, L325476 to L326401 and all tractors after L326453

1шт.

a436aa

A436AA

HUB front wheel, with bearing cups, L326453 and above, consists of;, Start Year: 01-JAN-31

2шт.

a4496a

A4496A

1шт.

02879ab

ST863

BEARING CUP,93.22mm OD x 23.81mm W

1шт.

02881ab

50213V

BEARING CUP

1шт.

A4496A or A436AA hub, used on tractors from L324436 to L325408, L325476 to L326401 and all tractors after L326453

1шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

2шт.

a1707aa

A1707AA

SPINDLE steering, with bushings and Lincoln fittings, tractor no. 4203136 and after, see 2874AA, Start Year: 01-JAN-38

2шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

2шт.

NUT 1 - 1/8" light, thick, slotted

2шт.

PIN 3/16" x 1 - 3/4" cotter

2шт.

2874aa

2874AA

SPINDLE steering, with bushings and washers, prior to tractor no. 4203136, see A1707AA, Years: 01-JAN-29-01-JAN-38

2шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

2шт.

NUT 1" hexagon, jam, N.F. thread

2шт.
