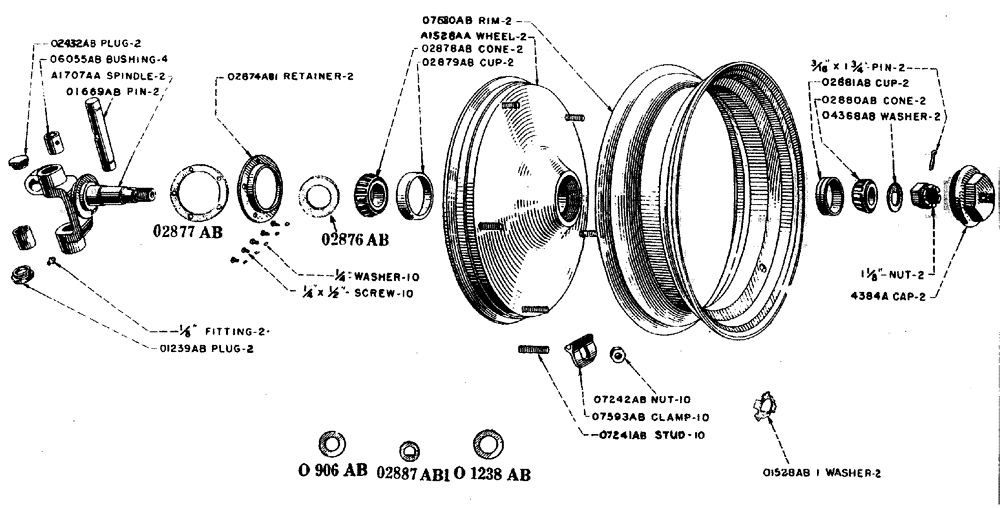

Запчасти Case IH L-SERIES (072) - FRONT WHEELS FOR PNEUMATIC FARM TIRES (06) - POWER TRAIN

4384a

4384A

X

CAP front wheel hub, Start Year: 01-JAN-29

2шт.

4520a

4520A

BUSHING for steering spindle, use O6055AB

1шт.

4948a

4948A

WHEEL front, for 4.50 x 16 drop center rim, use 1065AA

1шт.

a4948a

A4948A

WHEEL front, see A1065AA and 1528AA, Years: 01-JAN-36-01-JAN-37

2шт.

b4948a

B4948A

WHEEL front, for 5.50 F-20 full drop center rim, use B1065AA or A1528AA

1шт.

5179a

5179A

FLANGE for A1065AA front wheel, Years: 01-JAN-36-01-JAN-37

2шт.

SCREW 5/8" x 1 - 1/2" hexagon head cap, N.C. thread

12шт.

WASHER 5/8" standard lock

12шт.

0906ab

O906AB

WASHER steering spindle, L324436, see O2887AB1 and O4368AB, Years: 01-JAN-29-01-JAN-31

2шт.

01238ab

O1238AB

WASHER thrust, steering spindle, Start Year: 01-JAN-29

4шт.

01239ab

A7356

PLUG

lower, for A1707AA or 2874AA steering spindles, see O2432AB, Start Year: 01-JAN-29

2шт.

01528ab1

A26542

LOCK WASHER

lock, steering spindle nut, Start Year: 01-JAN-29

2шт.

01669ab

O1669AB

PIN front axle king, Start Year: 01-JAN-29

2шт.

01982ab

O1982AB

WRENCH front wheel hub cap, Start Year: 01-JAN-29

1шт.

02432ab

O2432AB

PLUG upper for A1707AA or 2874AA steering spindles, tapped for oil fitting, see O1239AB, Start Year: 01-JAN-29

2шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

2шт.

02874ab

O2874AB

RETAINER felt, front wheel hub, L326453 and, Years: 01-JAN-31-01-JAN-38, Serial Range: above-4203136

2шт.

SCREW 1/4" x 1/2" round head machine, N.C. thread

10шт.

WASHER 1/4" standard lock

10шт.

02874ab1

O2874AB1

RETAINER felt, front wheel hub, 4203135 and above, Start Year: 01-JAN-38

2шт.

SCREW 1/4" x 1/2" round head machine, N.C. thread

10шт.

WASHER 1/4" standard lock

10шт.

02875ab

O2875AB

RETAINER front wheel felt, outer, L326453 and above to tractor no. 4203136, Years: 01-JAN-31-01-JAN-38

2шт.

02876ab

O2876AB

WASHER felt, for A4496A hub, L326453 and above tractor no. 4203136, see O1231AB and O2876AB1, Years: 01-JAN-31-01-JAN-38

2шт.

02876ab1

O2876AB1

WASHER felt, for A4496A hub, tractor no. 4203136 and after, see O1231AB and O2876AB, Start Year: 01-JAN-38

2шт.

02877ab

O2877AB

GASKET front wheel hub dust guard, L326453 and above, see O2725AB, Start Year: 01-JAN-31

2шт.

02878ab

O2878AB

CONE front wheel inner bearing, Timken no. 3776, Start Year: 01-JAN-31

2шт.

02879ab

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP front wheel inner bearing, Timken no. 3720, Start Year: 01-JAN-31

2шт.

02880ab

482363C91

BEARING ASSY,31.75mm ID x 25.4mm W

CONE front wheel outer bearing, Timken no. 2580, Start Year: 01-JAN-31

2шт.

02881ab

50213V

BEARING CUP

CUP front wheel outer bearing, Timken no. 2523, Start Year: 01-JAN-31

2шт.

02887ab1

A26681

BEARING WASHER

WASHER steering spindle, L324435 and above to tractor no. 4203136, see O906AB and O4368AB, Years: 01-JAN-31-01-JAN-38

2шт.

03332ab1

O3332AB1

RIM front wheel, 4.50 x 16 drop center, for 1065AA wheel, Years: 01-JAN-33-01-JAN-36

2шт.

RIVET 1/2" x 1" round head

12шт.

04368ab

A26789

BEARING WASHER

WASHER for A1707AA steering spindle, tractor no. 4203136 and after, see O906AB or 2887AB1, Start Year: 01-JAN-38

2шт.

06055ab

O6055AB

BUSHING for A1707AA or 2874AA steering spindle, Start Year: 01-JAN-29

4шт.

07241ab

A27182

STUD

front wheel, Goodyear no. 46, for B1065AA wheel, Start Year: 01-JAN-37

10шт.

07242ab

O7242AB

NUT front wheel rim stud, Goodyear no. 35 for B1065AA wheel, Start Year: 01-JAN-37

10шт.

07593ab

A27228

CLAMP

for 5.50 F-20 full drop center rim, Goodyear no. 312, for B1065AA wheel, Start Year: 01-JAN-37

10шт.

07680ab

O7680AB

RIM 5.50 F-20 full drop center, without drive lugs, for B1065AA wheel, Start Year: 01-JAN-37

2шт.

1065aa

1065AA

WHEEL front, with 4.50 x 16 drop center rim and cups, Years: 01-JAN-33-01-JAN-36

2шт.

a1065aa

A1065AA

WHEEL front, with flange and cups, for 7.50 x 16 tire, see 1528AA, Years: 01-JAN-36-01-JAN-37

2шт.

b1065aa

B1065AA

WHEEL front, with 5.50 F-20 full drop center rim, for 7.50 x 20 tire, see A1528AA, Start Year: 01-JAN-37

2шт.

1528aa

1528AA

WHEEL front, with bearing cups, less flange, for 7.50 x 16 tire, see A1065AA, Years: 01-JAN-36-01-JAN-37

2шт.

a1528aa

A1528AA

WHEEL front, with bearing cups, less rim, for 7.50 x 20 tire, see B1065AA, Start Year: 01-JAN-37

2шт.

a1707aa

A1707AA

SPINDLE steering, with bushings and Lincoln fittings, tractor no. 4203136 and after, see 2874AA and 3668AA, Start Year: 01-JAN-38

2шт.

FITTING 1/8" straight lubricating Lincoln no. 5000

2шт.

NUT 1 - 1/8" light, thick, slotted

2шт.

PIN 3/16" x 1 - 3/4" cotter

2шт.

2874aa

2874AA

SPINDLE steering, with bushings, nuts and washers, prior to tractor no. 4203136, see A1707AA, Years: 01-JAN-29-01-JAN-38

2шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

2шт.

NUT 1" hexagon, jam, N.F. thread

2шт.

3668aa

3668AA

SPINDLES heavy type and spindle arms, Consists of;, Start Year: 01-JAN-38

1шт.

3613aa

3613AA

SPINDLES

2шт.

3614aa

3614AA

SPINDLE arm R.H.

1шт.

3615aa

3615AA

SPINDLE arm L.H.

1шт.

08151ab

ST783A

TAPERED BEARING,2" ID x 3.6718" OD x 1.1875"

CONES inner bearing, can be used to replace both A1707AA spindles and the arms

2шт.
