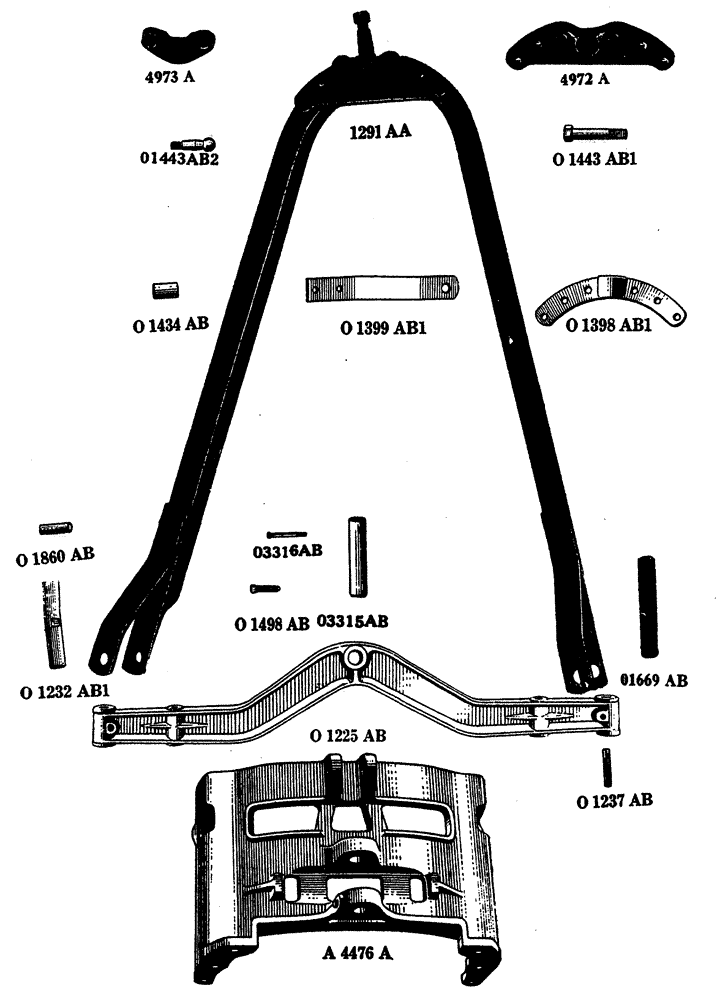

Запчасти Case IH L-SERIES (071) - FRONT AXLE AND RADIUS ROD (06) - POWER TRAIN

a4476a

A4476A

BRACKET front axle and radiator, use 1292AA

1шт.

4972a

4972A

SOCKET radius rod ball, L300889 and above, Start Year: 01-JAN-35

1шт.

BOLT 1/2" x 1 - 1/2" machine, with square head, N.C. thread

4шт.

WASHER 1/2" standard lock

4шт.

4973a

4973A

CAP radius rod ball socket, L300889 and above, Start Year: 01-JAN-35

1шт.

SCREW 5/8" x 2 - 1/2" hexagon head cap, N.C. thread

2шт.

WASHER 5/8" standard lock

2шт.

01225ab

O1225AB

AXLE front, Start Year: 01-JAN-29

1шт.

01232ab1

O1232AB1

PIN front axle king, use O1669AB

1шт.

01233ab

O1233AB

PIN pivot, front axle, L305745 and below, see O3315AB, Years: 01-JAN-29-01-JAN-34

1шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

1шт.

01237ab

O1237AB

X

LOCK front axle king pin, Start Year: 01-JAN-29

2шт.

NUT 1/2" hexagon, N.F. thread

2шт.

WASHER 1/2" standard lock

2шт.

01398ab1

O1398AB1

BRACKET pivot, radius rod, use 1421AA

1шт.

01399ab1

O1399AB1

STRAP radius rod, Start Year: 01-JAN-29

2шт.

RIVET 7/16" x 1 - 1/2" round head

4шт.

01434ab

O1434AB

SPACER radius rod bracket, L300890 and below, Years: 01-JAN-29-01-JAN-35

1шт.

0143ab1

O143AB1

BOLT radius rod straight pivot, L300890 and below, see 1421AA, Years: 01-JAN-29-01-JAN-35

1шт.

NUT 3/4" hexagon, castle, N.F. thread

1шт.

PIN 1/8" x 1 - 1/4" cotter

1шт.

01443ab2

O1443AB2

BALL radius rod tapered pivot, L300889 and above, Start Year: 01-JAN-35

1шт.

NUT 3/4" hexagon, N.F. thread

1шт.

PIN 1/8" x 1 - 1/4" cotter

1шт.

01498ab

O1498AB

SCREW set, front axle pivot pin, L305745 and below, see O3316AB, Years: 01-JAN-29-01-JAN-34

1шт.

NUT 1/2" hexagon, jam, N.C. thread

1шт.

01669ab

O1669AB

PIN front axle king, Start Year: 01-JAN-29

2шт.

03315ab

O3315AB

PIN pivot, front axle, L305744 and above, see O1233AB, Start Year: 01-JAN-34

1шт.

03316ab

O3316AB

BOLT front axle pivot pin, L305744 and above, see O1498AB, Start Year: 01-JAN-34

1шт.

NUT 1/2" hexagon, N.F. thread

1шт.

WASHER 1/2" standard lock

1шт.

121aa

121AA

ROD radius, with pivot bracket and straps, see 1291AA

1шт.

a121aa

A121AA

ROD radius, with straps, L300889 and above, see 1291AA, Years: 01-JAN-33-01-JAN-35

1шт.

b121aa

B121AA

ROD radius, with ball socket and straps, L300889 and above, see 1291AA, Start Year: 01-JAN-35

1шт.

BOLT 3/4" x 5 - 1/4" machine, with hexagon nut, N.C. thread

2шт.

WASHER 3/4" standard lock

2шт.

1291aa

1291AA

ROD radius, with pivot ball, ball socket and cap, L300889 and above, Start Year: 01-JAN-35

1шт.

1291AA radius rod, ball and socket design, will replace 121AA radius rod by reaming tapered hole in transmission housing to fit 01443AB2 pivot ball.

1шт.

SCREW 5/8" x 2 - 1/2" hexagon head cap, N.C. thread

2шт.

WASHER 5/8" standard lock, consists of;

2шт.

a121aa

A121AA

1шт.

1421aa

1421AA

1шт.

1292aa

1292AA

BRACKET front axle and radiator, with pivot pin and ball, Start Year: 01-JAN-29

1шт.

BOLT 5/8" x 2" machine, with hexagon nut

6шт.

WASHER 5/8" standard lock, consists of;

6шт.

a4476a

A4476A

1шт.

03315ab

O3315AB

1шт.

03316ab

O3316AB

1шт.

1421aa

1421AA

BALL AND SOCKET radius rod, consists of;, Years: 01-JAN-29-01-JAN-34

1шт.

Used when replacing 01443AB1 straight bolt to 01443AB2 tapered ball. Where this is dome 1424AA reamer is used to ream trasmission case to take 01443AB2 taper pivot ball.

1шт.

4972a

4972A

1шт.

4973a

4973A

1шт.

01443ab2

O1443AB2

BOLTS nuts, washers and cotter pins

1шт.

1242aa

1242AA

REAMER to ream transmission case for O1443AB2 radius rod taper pivot pin, Start Year: 01-JAN-35

1шт.

Used when changing from 121AA to 1291AA radius rod, or 01443AB1 straight pin to 01443AB2 taper pin.

1шт.
