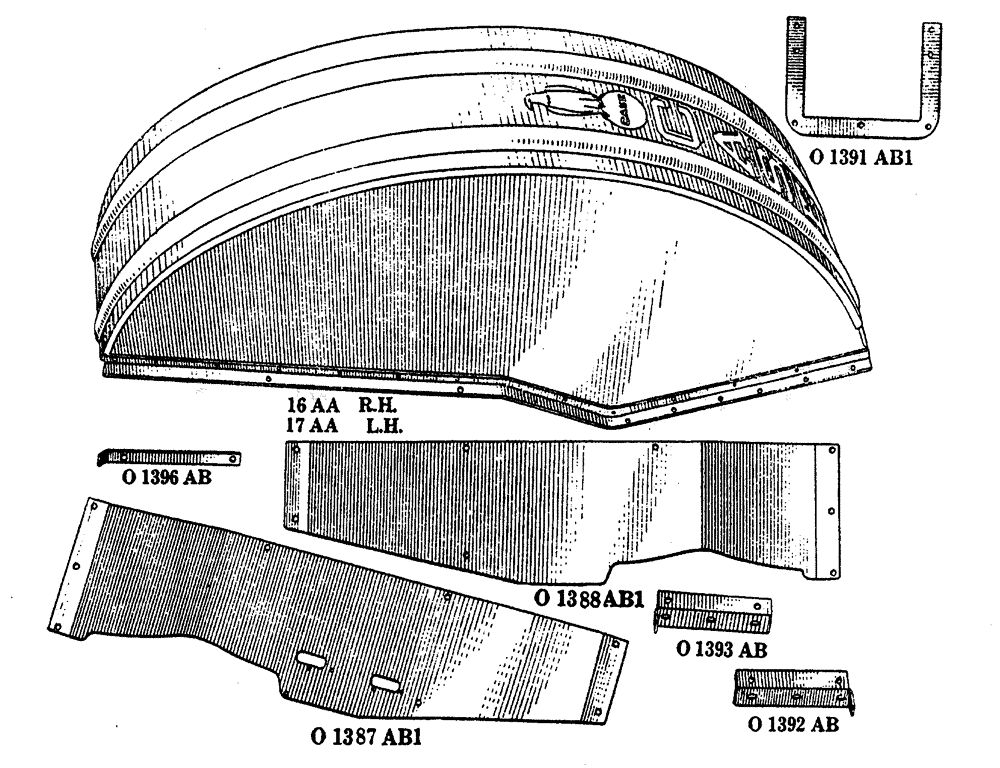

Запчасти Case IH L-SERIES (068) - FENDERS (06) - POWER TRAIN

01387ab1

O1387AB1

APRON fender, R.H., regular, see O3991AB and O5130AB, Start Year: 01-JAN-29

1шт.

BOLT 3/8" x 3/4" machine, with square nut, N.C. thread

2шт.

WASHER 3/8" standard lock

2шт.

01388ab1

O1388AB1

APRON fender, L.H., regular, see O5131AB, Start Year: 01-JAN-29

1шт.

BOLT 3/8" x 3/4" machine, with square nut, N.C. thread

2шт.

WASHER 3/8" standard lock

2шт.

01391ab1

O1391AB1

SUPPORT, fender, rear, Start Year: 01-JAN-29

2шт.

BOLT 3/8" x 1" machine, with square nut, N.C. thread

6шт.

WASHER 3/8" standard lock

6шт.

RIVET 3/8" x 1 - 3/8" round head

8шт.

01392ab

O1392AB

SUPPORT fender, front, R.H., Start Year: 01-JAN-29

1шт.

BOLT 3/8" x 3/4" machine, with square nut, N.C. thread

3шт.

BOLT 3/8" x 7/8" machine, with square nut, N.C. thread

1шт.

WASHER 3/8" standard lock

4шт.

01393ab

O1393AB

SUPPORT fender, front, L.H., Start Year: 01-JAN-29

1шт.

BOLT 3/8" x 3/4" machine, with square nut, N.C. thread

3шт.

BOLT 3/8" x 7/8" machine, with square nut, N.C. thread

1шт.

WASHER 3/8" standard lock

4шт.

01396ab

O1396AB

BRACE fender, Start Year: 01-JAN-29

2шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

4шт.

WASHER 1/2" standard lock

4шт.

03991ab

O3991AB

APRON fender, R.H., used with mechanical rear wheel brakes, see O1387AB1 and O5130AB, Start Year: 01-JAN-36

1шт.

BOLT 3/8" x 3/4" machine, with square nut, N.C. thread

2шт.

WASHER 3/8" standard lock

2шт.

05130ab

O5130AB

APRON fender, R.H., used with independent rear wheel brakes, see O1387AB1 and O3991AB, Start Year: 01-JAN-39

1шт.

BOLT 5/16" x 1/2" machine, with hexagon nut, N.C. thread

1шт.

WASHER 5/16" standard lock

1шт.

05131ab

O5131AB

APRON fender L.H., used with independent rear wheel brakes, see O1388AB1, Start Year: 01-JAN-39

1шт.

BOLT 5/16" x 1/2" machine, with hexagon nut, N.C. thread

1шт.

WASHER 5/16" standard lock

1шт.

05132ab

O5132AB

PLATE fender apron extension, used with independent rear wheel brakes, Start Year: 01-JAN-39

2шт.

BOLT 5/16" x 1/2" machine, with hexagon nut, N.C. thread

2шт.

WASHER 5/16" standard lock

2шт.

16aa

16AA

FENDER RH, Start Year: 01-JAN-29

1шт.

BOLT 5/16" x 1 - 1/2" carriage, with square nut, N.C. thread

3шт.

BOLT 5/16" x 1 - 3/4" carriage, with square nut, N.C. thread

1шт.

BOLT 3/8" x 1" machine, with square nut, N.C. thread

1шт.

WASHER 5/16" standard lock

4шт.

WASHER 3/8" standard lock

1шт.

17aa

17AA

FENDER L.H., Start Year: 01-JAN-29

1шт.

BOLT 5/16" x 1 - 1/2" carriage, with square nut, N.C. thread

3шт.

BOLT 5/16" x 1 - 3/4" carriage, with square nut, N.C. thread

1шт.

BOLT 3/8" x 1" machine, with square nut, N.C. thread

1шт.

WASHER 5/16" standard lock

4шт.

WASHER 3/8" standard lock

1шт.

02476ab

O2476AB

SHEET front, extension fender, R.H., orchard side fenders, Start Year: 01-JAN-30

1шт.

BOLT 5/16" x 5/8" machine, with square nut, N.C. thread

3шт.

WASHER 5/16" standard lock

3шт.

WASHER 5/16" standard plain

3шт.

02477ab

O2477AB

SHEET front, extension fender, L.H., orchard side fenders, Start Year: 01-JAN-30

1шт.

BOLT 5/16" x 5/8" machine, with square nut, N.C. thread

3шт.

WASHER 5/16" standard lock

3шт.

WASHER 5/16" standard plain

3шт.

02479ab

O2479AB

BRACE extension fender, side, Start Year: 01-JAN-30

2шт.

BOLT 3/8" x 7/8" machine, with square nut, N.C. thread

6шт.

BOLT 3/8" x 1 - 1/2" machine, with square nut, N.C. thread

6шт.

WASHER 3/8" standard lock

12шт.

02480ab

O2480AB

BRACE extension fender, front, Start Year: 01-JAN-30

4шт.

353aa

353AA

SET of orchard side fenders, machinery item, Start Year: 01-JAN-30

1шт.

354aa

354AA

FENDER, orchard side, R.H., Start Year: 01-JAN-30

1шт.

BOLT 3/8" x 1 - 1/2" machine, with square nut, N.C. thread

4шт.

WASHER 3/8" standard lock

4шт.

RIVET 5/16" x 1" wagon box head

8шт.

355aa

355AA

FENDER orchard side, L.H., Start Year: 01-JAN-30

1шт.

BOLT 3/8" x 1 - 1/2" machine, with square nut, N.C. thread

4шт.

WASHER 3/8" standard lock

4шт.

RIVET 5/16" x 1" wagon box head

8шт.

02466ab

O2466AB

SUPPORT extension fender, front, Start Year: 01-JAN-30

2шт.

BOLT 3/8" x 7/8" machine, with square nut, N.C. thread

6шт.

BOLT 3/8" x 1 - 18" machine, with square nut, N.C. thread

6шт.

WASHER 3/8" standard lock

6шт.

02467ab

O2467AB

SUPPORT extension fender, rear, Start Year: 01-JAN-30

2шт.

BOLT 3/8" x 7/8" machine, with square nut, N.C. thread

4шт.

BOLT, 3/8" x 1 - 1/4" machine, with square nut, N.C. thread

6шт.

WASHER 3/8" standard lock

4шт.

345aa

345AA

SET of 2 extension fenders for extension rims, machinery item, Start Year: 01-JAN-30

1шт.

349aa

349AA

FENDER extension, R.H., Start Year: 01-JAN-30

1шт.

BOLT 5/16" x 5/8" machine, with square nut, N.C. thread

3шт.

WASHER 5/16" standard lock

3шт.

WASHER 5/16" standard plain

3шт.

350aa

350AA

FENDER extension, L.H., Start Year: 01-JAN-30

1шт.

BOLT 5/16" x 5/8" machine, with square nut, N.C. thread

3шт.

WASHER 5/16" standard lock

3шт.

WASHER 5/16" standard plain

3шт.
