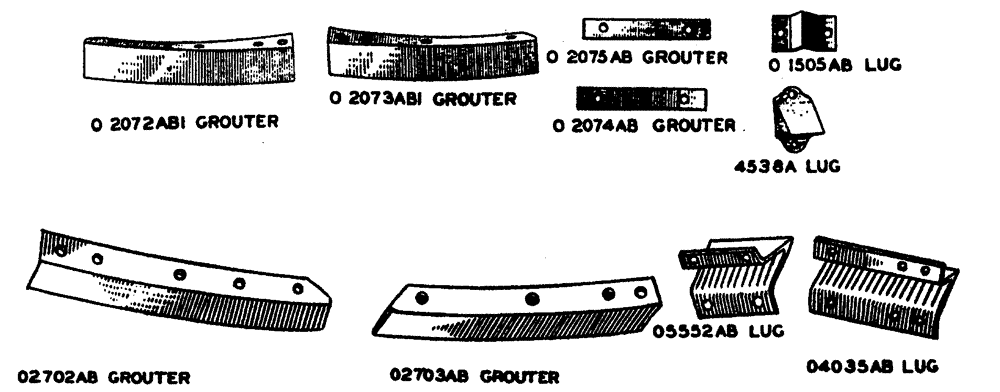

Запчасти Case IH L-SERIES (066) - GROUTERS AND LUGS FOR REAR WHEELS (06) - POWER TRAIN

4538a

4538A

LUG 6" cast iron spade, see 43AA and 45AA, rear wheel, Start Year: 01-JAN-29

56шт.

BOLT 3/4" x 2" machine, with hexagon nut, for lug to rear wheel, without extension rim

112шт.

BOLT 3/4" x 2" machine, with hexagon nut, for lug to rear wheel, with extension rim

42шт.

BOLT 3/4" x 2 - 1/2" machine, with hexagon nut, for lug to rear wheel, with extension rim

14шт.

WASHER 3/4" standard lock, one washer per bolt, rear wheel lugs

1шт.

4819a

4819A

LUG 7" cast spade lug, see 572AA and 573AA, rear wheel, Start Year: 01-JAN-31

56шт.

BOLT 3/4" x 2" machine, with hexagon nut, for lug to rear wheel, without extension rim

112шт.

BOLT 3/4" x 2" machine, with hexagon nut, for lug to rear wheel, with extension rim

42шт.

BOLT 3/4" x 2 - 1/2" machine, with hexagon nut, for lug to rear wheel, with extension rim

14шт.

WASHER 3/4" standard lock, one washer per bolt, rear wheel lugs

1шт.

01505ab

O1505AB

LUG steel spade, 5" high x 3 - 1/2" wide, see 44AA and 46AA, rear wheel, Start Year: 01-JAN-29

56шт.

BOLT 3/4" x 1 - 1/2" machine, with hexagon nut, for lug to rear wheel, without extension rim

112шт.

BOLT 3/4" x 1 - 1/2" machine, with hexagon nut, for lug to rear wheel, with extension rim

42шт.

BOLT 3/4" x 2" machine, with hexagon nut, for lug to rear wheel, with extension rim

14шт.

WASHER 3/4" standard lock, one per bolt, rear wheel lugs

1шт.

02802ab

O2802AB

LUG 6" steel spade, see 489AA and 557AA, rear wheel, Start Year: 01-JAN-31

56шт.

BOLT 3/4" x 1 - 1/2" machine, with hexagon nut, for lug to rear wheel, without extension rim

112шт.

BOLT 3/4" x 1 - 1/2" machine, with hexagon nut, for lug to rear wheel, with extension rim

42шт.

BOLT 3/4" x 2" machine, with hexagon nut, for lug to rear wheel, with extension rim

14шт.

WASHER 3/4" standard lock, one washer per bolt, rear wheel lugs

1шт.

04035ab

O4035AB

LUG steel spade, 5" high x 10" long, and tie strap, for rear wheel with extension rim, used in rice fields, see 1338AA and O5092AB, Years: 01-JAN-36-01-JAN-39

14шт.

BOLT 3/4" x 1 - 1/2" machine, with hexagon nut, rear wheel lugs

56шт.

WASHER 3/4" standard lock, rear wheel lugs

56шт.

05092ab

O5092AB

LUG steel spade, 6" high x 10 - 1/2" long, and tie strap, for rear wheel with extension rim, used in rice fields, see A1338AA and O4035AB, Start Year: 01-JAN-39

14шт.

BOLT 3/4" x 1 - 1/2" machine, with hexagon nut, rear wheel lugs

56шт.

WASHER 3/4" standard lock, rear wheel lugs

56шт.

05552ab

O5552AB

LUG steel spade, 6" high x 7" long, see 2733AA, rear wheel, Start Year: 01-JAN-41

48шт.

BOLT 3/4" x 1 - 1/2" machine, with hexagon nut, rear wheel lugs

192шт.

WASHER 3/4" standard lock, rear wheel lugs

192шт.

LUGS set of 28 cast iron spade, for rear wheels with extension rims, consists of;, Start Year: 01-JAN-29

1шт.

4538a

4538A

LUGS with bolts, nuts and washers, rear wheel

28шт.

44aa

44AA

LUGS set of 28 steel spade, for rear wheels with extension rims, consists of;, Start Year: 01-JAN-29

1шт.

01505ab

O1505AB

LUGS with bolts, nuts, and washers, rear wheel

28шт.

45aa

45AA

LUGS set of 56 cast iron spade, for rear wheels, consists of;, Start Year: 01-JAN-29

1шт.

4538a

4538A

LUGS with bolts, nuts and washers, rear wheel

56шт.

46aa

46AA

LUGS set of 56 steel spade, for rear wheels, consists of;, Start Year: 01-JAN-29

1шт.

01505ab

O1505AB

LUGS with bolts, nuts and washers, rear wheel

56шт.

489aa

489AA

LUGS set of 56 steel spade, for rear wheels, consists of;, Start Year: 01-JAN-31

1шт.

02802ab

O2802AB

LUGS with bolts, nuts and washers, rear wheel

56шт.

557aa

557AA

LUGS set of 28 steel spade, for rear wheels, with extension rims, consists of;, Start Year: 01-JAN-31

1шт.

02802ab

O2802AB

LUGS with bolts, nuts and washer, rear wheel

28шт.

572aa

572AA

LUGS set of 56 cast spade, for rear wheels, consists of;, Start Year: 01-JAN-31

1шт.

4819a

4819A

LUGS with bolts, nuts and washers, rear wheel

56шт.

573aa

573AA

LUGS set of 28 cast spade, for rear wheels with extension rims, consists of;, Start Year: 01-JAN-31

1шт.

4819a

4819A

LUGS with bolts, nuts and washers, rear wheel

28шт.

1338aa

1338AA

LUGS set of 14 steel spade and tie straps, for rear wheel with extensions rims, used in rice fields, consists of;, Years: 01-JAN-36-01-JAN-39

1шт.

04035ab

O4035AB

LUGS with bolts, nuts and washers, rear wheel

14шт.

a1338aa

A1338AA

LUGS set of 14 steel spade and tie straps, for rear wheels with extension rims, used in rice fields, consists of;, Start Year: 01-JAN-39

1шт.

05092ab

O5092AB

LUGS with bolts, nuts and washers, rear wheel

14шт.

2733aa

2733AA

LUGS set of 48 steel spade, for rear wheels, consists of;, Start Year: 01-JAN-41

1шт.

05552ab

O5552AB

LUGS with bolts, nuts and washers, rear wheel

48шт.

02072ab1

O2072AB1

GROUTER angle iron, R.H., 3 - 1/2" x 2 - 1/2" x 3/8" x 21 - 1/2", see A137AA, rear wheel, Start Year: 01-JAN-29

14шт.

BOLT 3/4" x 1 - 1/2" machine, with hexagon nut, rear wheel grouters

28шт.

WASHER 3/4" standard lock, rear wheel grouters

28шт.

02073ab1

O2073AB1

GROUTER angle iron, L.H., 3 - 1/2" x 2 - 1/2" x 3/8" x 21 - 1/2", see A137AA, rear wheel, Start Year: 01-JAN-29

14шт.

BOLT 3/4" x 1 - 1/2" machine, with hexagon nut, rear wheel grouters

28шт.

WASHER 3/4" standard lock, rear wheel grouters

28шт.

02074ab

O2074AB

GROUTER road, R.H., 2" x 1" x 12 - 13/16", see 138AA, rear wheel, Start Year: 01-JAN-29

28шт.

BOLT 3/4" x 2 - 1/4" no. 7 key head plow, with hexagon nut, rear wheel grouters

112шт.

WASHER 3/4" standard lock, rear wheel grouters

112шт.

02075ab

O2075AB

GROUTER road, L.H., 2" x 1" x 12 - 13/16", see 138AA, rear wheel, Start Year: 01-JAN-29

28шт.

BOLT 3/4" x 2 - 1/4" no. 7 key head plow, with hexagon nut, rear wheel grouters

112шт.

WASHER 3/4" standard lock, rear wheel grouters

112шт.

02702ab

O2702AB

GROUTER Pennsylvania angle iron, R.H., 2 - 1/2" x 2" x 3/8" x 21 - 1/2", see 414AA, rear wheel, Start Year: 01-JAN-30

14шт.

BOLT 3/4" x 1 - 1/2" machine, with hexagon nut, rear wheel grouters

56шт.

WASHER 3/4" standard lock, rear wheel grouters

56шт.

02703ab

O2703AB

GROUTER Pennsylvania angle iron, L.H., 2 - 1/2" x 2" x 3/8" x 21 - 1/2", see 414AA, rear wheel, Start Year: 01-JAN-30

14шт.

BOLT 3/4" x 1 - 1/2" machine, with hexagon nut, rear wheel grouters

56шт.

WASHER 3/4" standard lock, rear wheel grouters

56шт.

a137aa

A137AA

GROUTERS set of 28, 3 - 1/2" angle iron, for rear wheels, consists of;, Start Year: 01-JAN-29

1шт.

02072ab1

O2072AB1

GROUTER with bolts, nuts and washers, rear wheel grouters

14шт.

02075ab

O2075AB

GROUTER with bolts, nuts and washers, rear wheel grouters

28шт.

138aa

138AA

GROUTER set of 56 rear wheel road, for rear wheels, consists of;

1шт.

02074ab

O2074AB

GROUTER with bolts, nuts and washers, rear wheel grouters

28шт.

02075ab

O2075AB

GROUTER with bolts, nuts and washers, rear wheel grouters

28шт.

414aa

414AA

GROUTER set of 28 Pennsylvania angle iron, for rear wheels, consists of;, Start Year: 01-JAN-30

1шт.

02702ab

O2702AB

GROUTER with bolts, nuts and washers

14шт.

02703ab

O2703AB

GROUTER with bolts, nuts and washers, rear wheel grouters

14шт.

02239ab

O2239AB

BAND angle iron road, see 259AA, rear wheel, bands, Start Year: 01-JAN-30

2шт.

02240ab

O2240AB

SUPPORT angly iron road, see 259AA, rear wheel, Start Year: 01-JAN-30

14шт.

BOLT 5/8" x 1 - 3/4" machine, with hexagon nut, N.C. thread, rear wheel road bands

28шт.

BOLT 3/4" x 2" machine, with hexagon nut, N.C. thread, rear wheel road bands

14шт.

WASHER 5/8" standard lock, rear wheel road bands

28шт.

WASHER 3/4" standard lock, rear wheel road bands

14шт.

259aa

259AA

BANDS set of angle iron road, machinery item, rear wheel, consists of;, Start Year: 01-JAN-30

1шт.

02239ab

O2239AB

BOLTS nuts and washers, rear wheel road bands

2шт.

02240ab

O2240AB

BOLTS nuts and washers, rear wheel road bands

14шт.
