Запчасти Case IH L-SERIES (065) - EXTENSION RIMS FOR REAR WHEELS (06) - POWER TRAIN

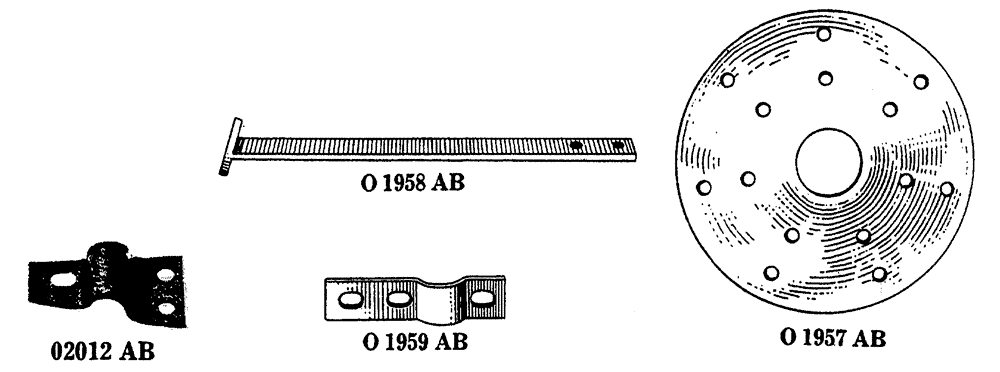

Схема запчастей Case IH L-SERIES - (065) - EXTENSION RIMS FOR REAR WHEELS (06) - POWER TRAIN
01957ab
01958ab
01959ab
02012ab

Артикул

Название

Примечание

Количество

01956ab

O1956AB

RIM 8" x 48" extension, Start Year: 01-JAN-29

2шт.

01957ab

O1957AB

HUB extension, Start Year: 01-JAN-29

2шт.

01958ab

O1958AB

SPOKE extension rim, Start Year: 01-JAN-29

14шт.

RIVET 5/8" x 1 - 1/4" round head

28шт.

RIVET 5/8" x 1 - 3/4" round head

28шт.

01959ab

O1959AB

STRAP extension rim for 8" x 48", Start Year: 01-JAN-29

14шт.

BOLT 3/4" x 1 - 1/2" machine, with hexagon nut

42шт.

BOLT 3/4" x 1 - 3/4" machine, with hexagon nut, tie strap extension rim

14шт.

BOLT 3/4" x 2" machine, with hexagon nut, tie strip to rear wheel, with steel spade lugs

28шт.

BOLT 3/4" x 2 - 1/2" machine, with hexagon nut, tie strap to rear wheel with cast spade lugs

28шт.

WASHER 3/4" standard lock

84шт.

41aa

41AA

RIMS set of 8" x 48" extension, with tie straps, for rear wheels with steel spade lugs, Start Year: 01-JAN-29

1шт.

464aa

464AA

RIMS set of 8" x 48" extension, with tie straps, for rear wheels with cast spade lugs, Start Year: 01-JAN-29

1шт.

02011ab

O2011AB

RIM 6" x 48" extension, Start Year: 01-JAN-29

2шт.

02012ab

O2012AB

STRAP 6" extension rim tie, Start Year: 01-JAN-29

14шт.

BOLT 3/4" x 1 - 1/2" machine, with hexagon nut

28шт.

BOLT 3/4" x 2" machine, with hexagon nut, tie strap to rear wheel, with steel spade lugs

14шт.

BOLT 3/4" x 2 - 1/2" machine, with hexagon nut, tie strap to rear wheel, with cast spade lugs

14шт.

WASHER 3/4" standard lock

28шт.

96aa

96AA

RIMS set of 6" x 48" extension, with tie strap, for rear wheels, with steel spade lugs, Start Year: 01-JAN-29

1шт.

465aa

465AA

RIMS set of 6" x 48" extension, with tie strap, for rear wheels with cast spade lugs, Start Year: 01-JAN-29

1шт.

02011aa

O2011AA

RIM 6" x 48" extension, for rear wheels with angle iron grouters, Start Year: 01-JAN-29

2шт.

BOLT 3/4" x 1 - 1/2" machine, with hexagon nut

28шт.

WASHER 3/4" standard lock

28шт.

180aa

180AA

RIMS set of 6" x 48" extension, for rear wheels with angle iron grouters, Start Year: 01-JAN-29

1шт.

01956ab

O1956AB

RIM 8" x 48" extension, for rear wheels with angle iron grouter, Start Year: 01-JAN-29

2шт.

BOLT 3/4" x 1 - 1/2" machine, with hexagon nut

28шт.

WASHER 3/4" standard lock

28шт.

01957ab

O1957AB

HUB extension rim, Start Year: 01-JAN-29

2шт.

01958ab

O1958AB

SPOKE extension rim, Start Year: 01-JAN-29

14шт.

RIVET 5/8" x 1 - 1/4" round head

28шт.

RIVET 5/8" x 1 - 3/4" round head

28шт.

181aa

181AA

RIMS set of 8" x 48" extension, for rear wheels with angle iron grouters, Start Year: 01-JAN-29

1шт.

Выбрано товаров: 33
