(062) - REAR WHEEL WEIGHTS FOR PNEUMATIC TIRED WHEEL

Запчасти Case IH L-SERIES (062) - REAR WHEEL WEIGHTS FOR PNEUMATIC TIRED WHEEL (06) - POWER TRAIN

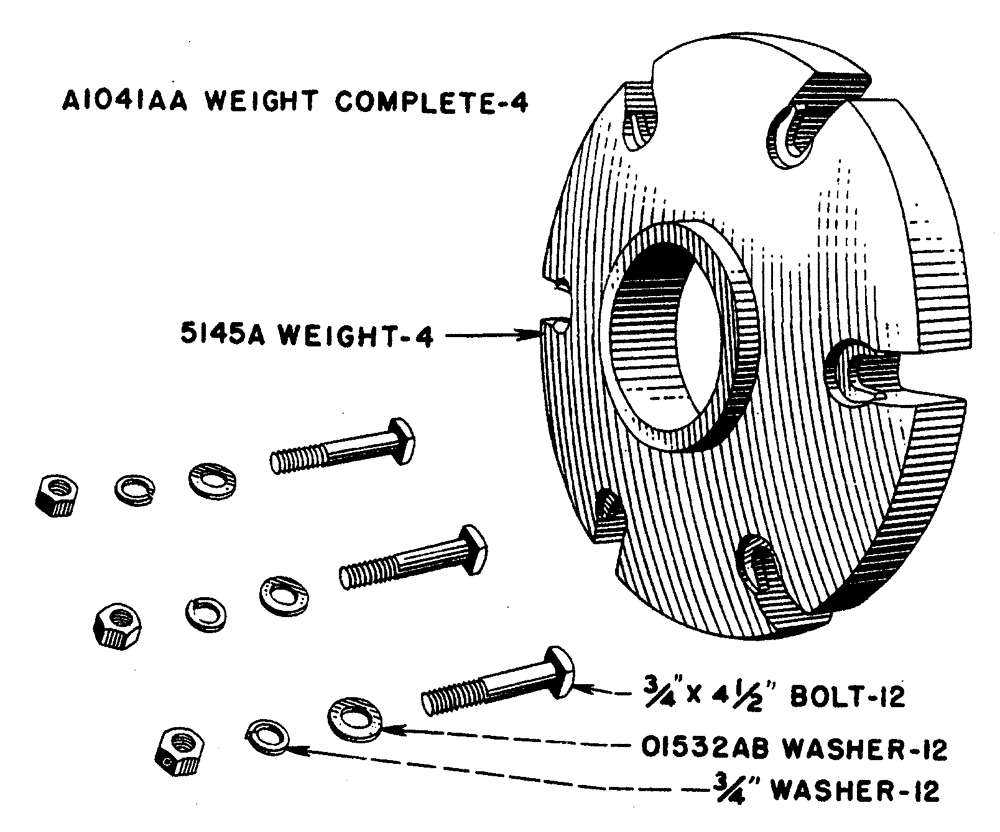

Схема запчастей Case IH L-SERIES - (062) - REAR WHEEL WEIGHTS FOR PNEUMATIC TIRED WHEEL (06) - POWER TRAIN
01532ab
a1041aa
5145a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

4935a

4935A

WEIGHTrear wheel, use 1040AA

1шт.

5145a

5145A

WEIGHT rear wheel, use A1041AA

1шт.

01532ab

O1532AB

WASHER rear wheel weight bolt, Start Year: 01-JAN-33

6шт.

1041aa

1041AA

WEIGHT rear wheel, for 1068AA rear wheel, consists of;, Years: 01-JAN-33-01-JAN-36

2шт.

4935a

4935A

WEIGHTrear wheel

1шт.

01532ab

O1532AB

WASHER rear wheel weight bolt

3шт.

BOLT 3/4" x 3 - 1/2" machine, with hexagon nut

3шт.

a1041aa

A1041AA

WEIGHT rear wheel, for A1068AA, B1068AA, 1551AA and A1551A, consists of;, Start Year: 01-JAN-36

2шт.

5145a

5145A

WEIGHT rear wheel

1шт.

01532ab

O1532AB

WASHER rear wheel weight bolt

3шт.

BOLTS 3/4" x 4 - 1/2' machine, with hexagon nuts

3шт.

WASHERS 3/4" lock

3шт.
