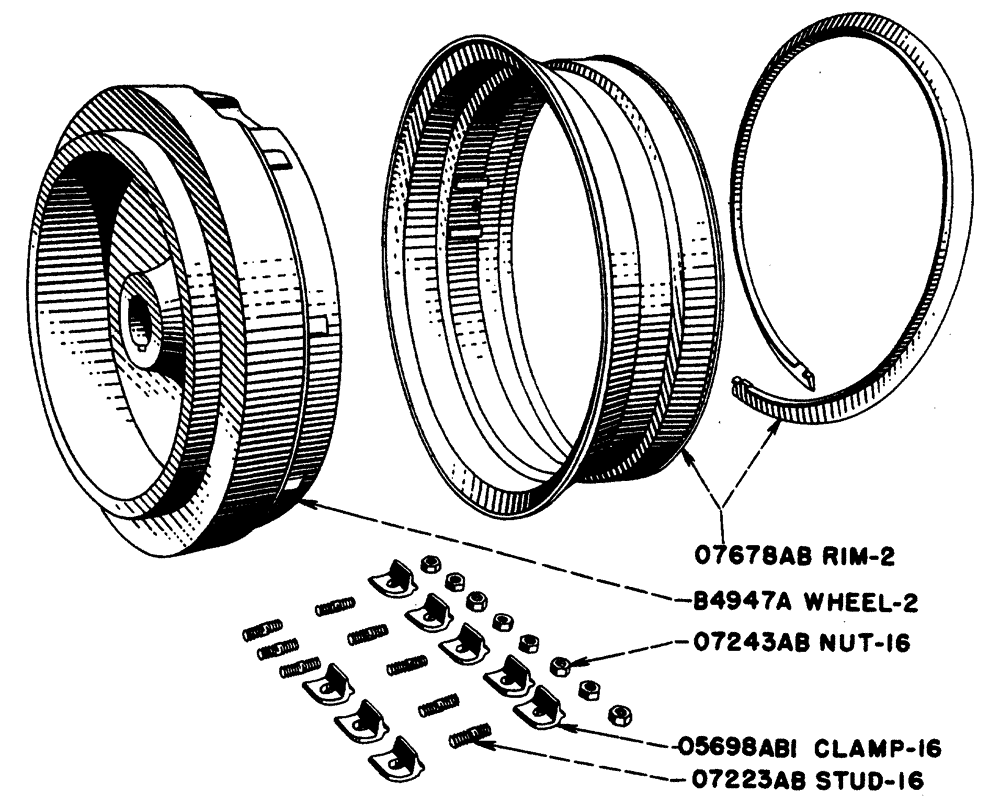

Запчасти Case IH L-SERIES (061) - REAR WHEELS FOR PNEUMATIC FARM TIRES (TRACTOR NO. 4200000 AND AFTER) (06) - POWER TRAIN

4947a

4947A

WHEEL rear, for 8.00 x 28 drop center rim, see 1068AA, prior to tractor no. L300900, Years: 01-JAN-33-01-JAN-36

2шт.

03354ab

O3354AB

RIM rear wheel, 8.00 x 28 full drop center, prior to tractor no. L300900, Years: 01-JAN-33-01-JAN-36

2шт.

RIVET 1/2" x 3 round head, prior to tractor no. L300900

12шт.

1068aa

1068AA

WHEEL rear, with 8.00 x 28 full drop center rim, 12.75 x 28 tire, prior to tractor no. L300900, Years: 01-JAN-33-01-JAN-36

2шт.

a4947a

A4947A

WHEEL rear, for tractors equipped with wheel brakes, see A1068AA, using cast flanges, tractor no. L300900 to tractor no. 4200000, Years: 01-JAN-36-01-JAN-37

2шт.

5144a

5144A

FLANGE rear wheel, using cast, tractor no. L300900 to tractor no. 4200000, Years: 01-JAN-36-01-JAN-37

2шт.

SCREW 5/8" x 1 - 3/4" hexagon head cap, N.C. thread, using cast flanges, tractor no. L300900 to tractor no. 4200000

20шт.

WASHER 5/8" standard lock, using cast flanges, tractor no. L300900 to tractor no. 4200000

20шт.

5231a

5231A

WHEEL rear, for tractors without rear wheel brakes, see 1551AA, using cast flanges, tractor no. L300900 to tractor no. 4200000, Years: 01-JAN-36-01-JAN-37

2шт.

a1068aa

A1068AA

WHEEL rear, with flange, for tractors equipped with rear wheel brakes, for 12.75 x 28" or 13.50 x 28 tires, using cast, tactor no. L300900 to tractor no. 4200000, Years: 01-JAN-36-01-JAN-37

2шт.

1551aa

1551AA

WHEEL rear with flange, for tractors without rear wheel brakes, for 12.75 x 28 or 13.50 x 28 tires, using cast, tractor no. L300900 to tractor no. 4200000, Years: 01-JAN-36-01-JAN-37

2шт.

b4947a

B4947A

WHEEL rear, for tractors equipped with rear wheel brakes, see B1068AA, tractor no. 4200000 and after, Start Year: 01-JAN-38

2шт.

a5231a

A5231A

WHEEL rear, for tractors without rear wheel brakes, see A1551AA, tractor no. 4200000 and after, Start Year: 01-JAN-38

2шт.

05698ab1

A26908

CLAMP

rear wheel rim, tractor no. 4200000 and after, Start Year: 01-JAN-38

16шт.

07223ab

O7223AB

X

STUD rear wheel rim, Goodyear no. 69, tractor no. 4200000 and after, Start Year: 01-JAN-38

16шт.

07243ab

A27183

NUT

rear wheel rim stud, Goodyear no. 65, tractor no. 4200000 and after, Start Year: 01-JAN-38

16шт.

07678ab

O7678AB

RIM rear wheel, 8.00T - 28 semi drop center, for B1068AA or A1551AA wheel, tractor no. 4200000 and after, Start Year: 01-JAN-38

2шт.

b1068aa

B1068AA

WHEEL rear, with 8.00T - 28 semi drop center rim, for tractors equipped with rear wheel brakes, for 12.75 x 28 or 13.50 x 28 6 ply tires, tractor no. 4200000 and after, Start Year: 01-JAN-38

2шт.

a1551a

A1551A

WHEEL rear, with 8.00T - 28 semi drop center rim, for tractors without real wheel brakes, for 12.75 x 28 or 13.50 x 28 6 ply tires, tractor no. 4200000 and after, Start Year: 01-JAN-38

2шт.

5393a

5393A

WHEEL rear, for 15 - 28 wide base rim, Pacific Coast Special, Start Year: 01-JAN-39

2шт.

RING slipt side, Goodyear print no. 803776, Pacific Coast Special, Start Year: 01-JAN-39

4шт.

STRIPS rim, for 15 - 28 wide base rim, Pacific Coast Special, Start Year: 01-JAN-39

2шт.
