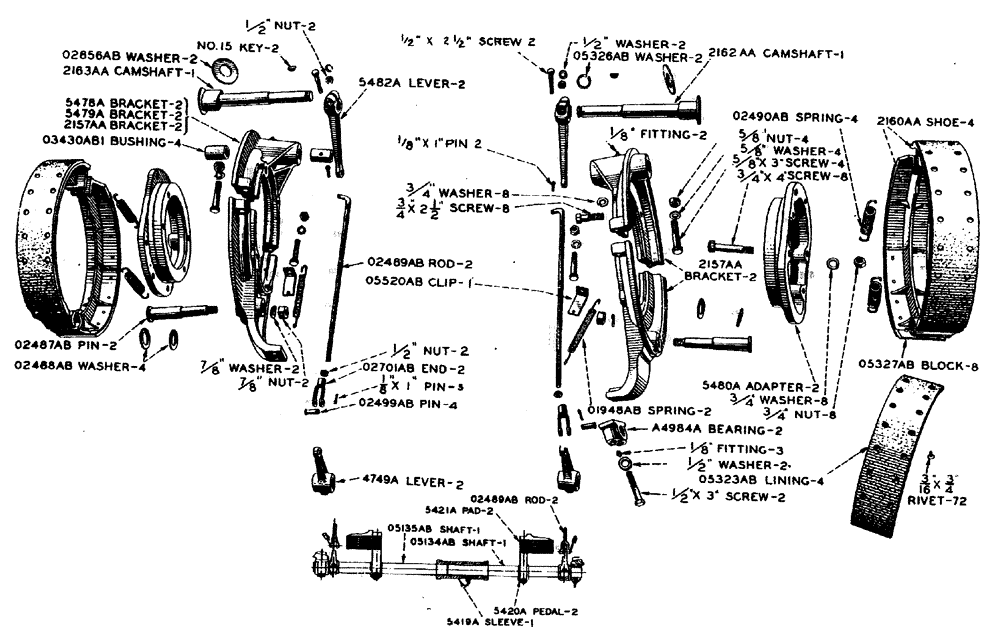

Запчасти Case IH L-SERIES (060) - INDEPENDENT REAR WHEEL BRAKES (06) - POWER TRAIN

25031/2a

25031/2A

BOARD platform, front, Start Year: 01-JAN-39

1шт.

BOLT 5/16" x 1 - 1/2" carriage, with square nut, N.C. thread

2шт.

WASHER 5/16" standard lock

2шт.

4520a

4520A

BUSHING rear wheel brake bracket, use with A634AA bracket, see O3430AB1, Start Year: 01-JAN-39

4шт.

a4744a

A4744A

BRACKET rear wheel brake, use A634AA

1шт.

4746a

4746A

SHOE brake, use A635AA

1шт.

4748a

4748A

LEVER cam shaft, used with A634AA bracket, see 5482A, Start Year: 01-JAN-39

2шт.

BOLT 1/2" x 2 - 1/2" machine, with hexagon nut, N.C. thread

2шт.

WASHER 1/2" standard lock

2шт.

4749a

4749A

LEVER cross shaft, Start Year: 01-JAN-39

2шт.

SCREW 1/2" x 2 - 1/2" hexagon head cap, N.F. thread

2шт.

NUT 1/2" hexagon, light, N.F. thread

2шт.

WASHER 1/2" standard lock

2шт.

4984a

4984A

BEARING cross shaft, A4984A

1шт.

a4984a

A4984A

BEARING cross shaft, Start Year: 01-JAN-39

2шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

2шт.

SCREW 1/2" x 3" hexagon head cap, N.C. thread

2шт.

WASHER 1/2" standard lock

2шт.

5419a

5419A

SLEEVE cross shaft, Start Year: 01-JAN-39

1шт.

FITTING 1/8", 45 degree, lubricating, Lincoln no. 5200

2шт.

5420a

5420A

PEDAL foot, Start Year: 01-JAN-39

2шт.

SCREW 1/2" x 2" hexagon head cap, N.F. thread

2шт.

SCREW 1/2" x 2 - 1/2" hexagon head cap, N.F. thread

2шт.

NUT 1/2" hexagon, light, N.F. thread

4шт.

WASHER 1/2" standard lock

4шт.

5421a

5421A

PAD foot pedal, Start Year: 01-JAN-39

2шт.

5478a

5478A

BRACKET rear wheel, front, use 2157AA

1шт.

5479a

5479A

BRACKET rear wheel, rear, use 2157AA

1шт.

5480a

5480A

ADAPTER bracket, Start Year: 01-JAN-39

2шт.

5481a

5481A

SHOE brake, use 2160AA

1шт.

5482a

5482A

LEVER camshaft, used with 2157AA bracket, see 4748A, Start Year: 01-JAN-39

2шт.

SCREW 1/2" x 2 - 1/2" hexagon head cap, N.F. thread

2шт.

NUT 1/2" hexagon, light, N.F. thread

2шт.

WASHER 1/2" standard lock

2шт.

01198ab2

A26476

WASHER

camshaft shim, Start Year: 01-JAN-39

8шт.

01948ab

O1948AB

SPRING brake pedal return, Start Year: 01-JAN-39

2шт.

02487ab

O2487AB

PIN anchor, brake shoe, Start Year: 01-JAN-39

2шт.

NUT 7/8" hexagon, light, N.F. thread

2шт.

WASHER 7/8" standard lock

2шт.

02488ab

O2488AB

WASHER brake shoe anchor, Start Year: 01-JAN-39

4шт.

02489ab

O2489AB

ROD brake lever, Start Year: 01-JAN-39

2шт.

NUT 1/2" hexagon, light, N.F. thread

2шт.

02490ab

O2490AB

SPRING brake shoe, Start Year: 01-JAN-39

4шт.

02498ab1

O2498AB1

LINING brake shoe, used with A635AA, see O5323AB, Start Year: 01-JAN-39

4шт.

RIVET 3/16" x 3/4" belt head copper

56шт.

02499ab

O2499AB

X

PIN brake rod yoke end, Start Year: 01-JAN-39

4шт.

PIN 1/8" x 1" cotter

4шт.

02701ab

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

END yoke, brake rod, Start Year: 01-JAN-39

2шт.

02856ab

O2856AB

WASHER camshaft, Start Year: 01-JAN-39

2шт.

03430ab

O3430AB

BUSHING rear wheel brake bracket, use O3430AB1

1шт.

03430ab1

O3430AB1

BUSHING rear wheel brake bracket, used with 2157AA bracket, see 4520A, Start Year: 01-JAN-39

4шт.

05134ab

O5134AB

SHAFT brake cross, R.H., Start Year: 01-JAN-39

1шт.

KEY no. 15 Woodruff

2шт.

05135ab

O5135AB

SHAFT brake cross, L.H., Start Year: 01-JAN-39

1шт.

KEY no. 15 Woodruff

2шт.

05323ab

O5323AB

LINING brake shoe, used with 2160AA, see O2498AB1, Start Year: 01-JAN-39

4шт.

RIVET 3/16" x 3/4" belt head copper

72шт.

05326ab

O5326AB

WASHER camshaft, Start Year: 01-JAN-39

2шт.

05327ab

O5327AB

BLOCK brake lining stop, Start Year: 01-JAN-39

8шт.

RIVET 5/16" x 1" countersunk head

16шт.

05520ab

O5520AB

CLIP brake pedal return spring, Start Year: 01-JAN-39

2шт.

a565aa

A565AA

GUARD rear wheel brake, with bracket, R.H. top and L.H. bottom, used with A634AA bracket only, Start Year: 01-JAN-39

2шт.

RIVET 1/4" x 1/2" wagon box head

8шт.

SCREW 3/8" x 7/8" hexagon head cap, N.C. thread

4шт.

WASHER 3/8" standard lock

4шт.

a566aa

A566AA

GUARD rear wheel brake, with bracket, L.H. top and R.H. bottom, used with A643AA bracket, Start Year: 01-JAN-39

2шт.

RIVET 1/4" x 1/2' wagon box head

8шт.

SCREW 3/8" x 7/8" hexagon head cap, N.C. thread

4шт.

WASHER 3/8" standard lock

4шт.

630aa

630AA

CAMSHAFT brake, with washer, used with A634AA bracket, see 2162AA and 2163AA, Start Year: 01-JAN-39

2шт.

KEY no. 15 Wooduff

2шт.

a634aa

A634AA

BRACKET rear wheel brake, with bushing, one piece, see 2157AA, Start Year: 01-JAN-39

2шт.

SCREW 3/4 x 4" hexagon head cap, N.C. thread

8шт.

WASHER 3/4" standard lock

8шт.

a635aa

A635AA

SHOE brake, with lining, used with A634AA bracket, see 2160AA, consists of;, Start Year: 01-JAN-39

4шт.

4746a

4746A

SHOE brake

1шт.

02498ab1

O2498AB1

LINING brake shoe

1шт.

RIVETS 3/16" x 3/4"

14шт.

2157aa

2157AA

BRACKET rear wheel brake, front and rear, see A634AA, Start Year: 01-JAN-39

2шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

2шт.

SCREW 5/8" x 3" hexagon head cap, N.F. thread

4шт.

SCREW 3/4" x 2 - 1/2" hexagon head cap, N.C. thread

8шт.

NUT 5/8" hexagon, light, N.F. thread

4шт.

WASHER 5/8" standard lock

4шт.

WASHER 3/4" standard lock

8шт.

2160aa

2160AA

SHOE brake, with lining, used with 2157AA bracket, see A635AA, consists of;, Start Year: 01-JAN-39

4шт.

5481a

5481A

SHOE brake

1шт.

05323ab

O5323AB

LINING brake shoe

1шт.

05327ab

O5327AB

BLOCK brake lining stop

1шт.

RIVETS 3/16" x 3/4", belt head

18шт.

RIVETS 5/16" x 1", copper head

4шт.

2162aa

2162AA

CAMSHAFT brake, R.H., with washer, used with 2157AA bracket, see 630AA, Start Year: 01-JAN-39

1шт.

NUT 7/8" light, castle, N.F. thread

1шт.

PIN 1/8" x 1 - 1/4" cotter

1шт.

2163aa

2163AA

CAMSHAFT brake, L.H., with washer, used with 2157AA bracket, see 630AA, Start Year: 01-JAN-39

1шт.

NUT 7/8" light, castle, N.F. thread

1шт.

PIN 1/8" x 1 - 1/4' cotter

1шт.
