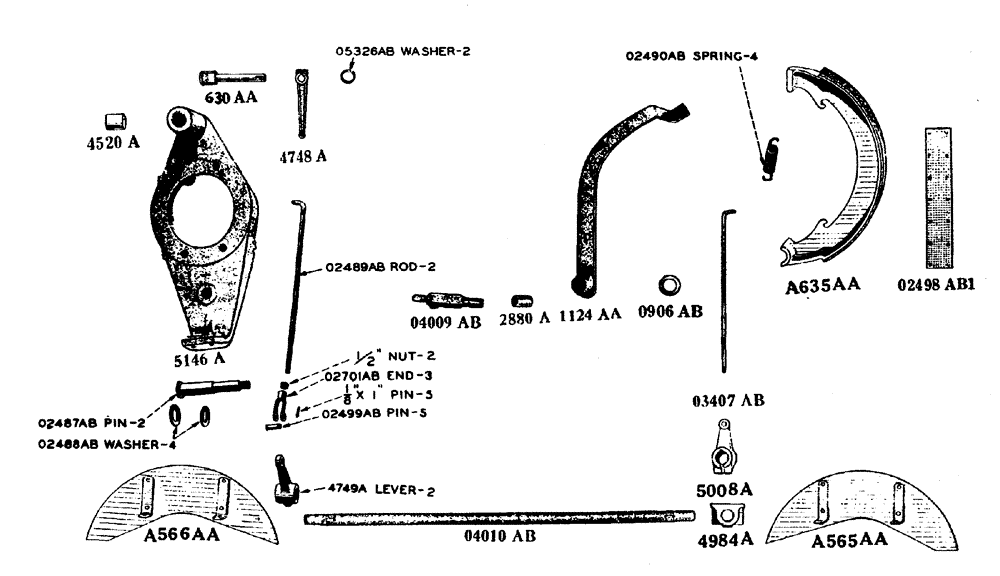

Запчасти Case IH L-SERIES (059) - REAR WHEEL BRAKES FOR TRACTORS EQUIPPED WITH PNEUMATIC TIRES (06) - POWER TRAIN

2880a

2880A

BUSHING foot lever, Start Year: 01-JAN-36

1шт.

4520a

4520A

BUSHING rear wheel bracket, Start Year: 01-JAN-36

4шт.

4746a

4746A

SHOE rear wheel brake, use A635AA

1шт.

4748a

4748A

LEVER rear wheel brake camshaft, Start Year: 01-JAN-36

2шт.

BOLT 1/2" x 2 - 1/2" machine, with hexagon nut, N.C. thread

2шт.

WASHER 1/2" standard lock

2шт.

4749a

4749A

LEVER cross shaft, Start Year: 01-JAN-36

2шт.

BOLT 1/2" x 2 - 1/2" machine, with hexagon nut, N.C. thread

2шт.

WASHER 1/2" standard lock

2шт.

4984a

4984A

BEARING cross shaft, use A4984A

1шт.

a4984a

A4984A

BEARING cross shaft, Start Year: 01-JAN-36

2шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

2шт.

SCREW 1/2" x 3" hexagon head cap, N.C. thread

2шт.

WASHER 1/2" standard lock

2шт.

5008a

5008A

LEVER cross shaft, Start Year: 01-JAN-36

1шт.

BOLT 1/2" x 2 - 1/2" machine, with hexagon nut, N.C. thread

1шт.

WASHER 1/2" standard lock

1шт.

5146a

5146A

BRACKET brake, Start Year: 01-JAN-36

2шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

2шт.

SCREW 3/4" x 4" hexagon head cap, N.C. thread

8шт.

NUT 3/4" hexagon, N.C. thread

8шт.

0906ab

O906AB

WASHER foot lever stud, Start Year: 01-JAN-36

1шт.

02487ab

O2487AB

PIN anchor, brake shoe, Start Year: 01-JAN-36

2шт.

NUT 7/8" hexagon, light, N.F. thread

2шт.

WASHER 7/8" standard lock

2шт.

02488ab

O2488AB

WASHER brake shoe anchor pin, Start Year: 01-JAN-36

4шт.

02489ab

O2489AB

ROD brake lever, see 631AA, Start Year: 01-JAN-36

2шт.

NUT 1/2" hexagon, light, N.F. thread

2шт.

02490ab

O2490AB

SPRING brake shoe, Start Year: 01-JAN-36

4шт.

02498ab1

O2498AB1

LINING brake shoe, Start Year: 01-JAN-36

4шт.

RIVET 3/16" x 3/4" belt band copper

56шт.

02499ab

O2499AB

X

PIN brake rod yoke end, Start Year: 01-JAN-36

5шт.

PIN 1/8" x 1" cotter

5шт.

02701ab

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

END brake rod adjustable yoke, Start Year: 01-JAN-36

3шт.

03407ab

O3407AB

ROD foot lever, Start Year: 01-JAN-36

1шт.

NUT 1/2" hexagon, N.F. thread

1шт.

PIN 1/8" x 1" cotter

2шт.

04009ab

O4009AB

STUD foot lever, Start Year: 01-JAN-36

1шт.

PIN 1/4" x 1/2" cotter

1шт.

04010ab

O4010AB

SHAFT rear wheel brake cross, Start Year: 01-JAN-36

1шт.

KEY no. 15 Woodruff

3шт.

05326ab

O5326AB

WASHER brake camshaft, Start Year: 01-JAN-36

4шт.

a565aa

A565AA

GUARD rear wheel brake, with bracket, R.H. top and L.H. bottom, Start Year: 01-JAN-36

2шт.

RIVET 1/4" x 1/2" wagon box head

8шт.

SCREW 3/8" x 7/8" hexagon head cap, N.C. thread

4шт.

WASHER 3/8" standard lock

4шт.

a566aa

A566AA

GUARD rear wheel bracket, L.H. top and R.H. bottom, Start Year: 01-JAN-36

2шт.

RIVET 1/4" x 1/2" wagon box head

8шт.

SCREW 3/8" x 7/8" hexagon head cap, N.C. thread

4шт.

WASHER 3/8" standard lock

4шт.

630aa

630AA

CAMSHAFT rear wheel brake, R.H. and L.H., Start Year: 01-JAN-36

2шт.

KEY no. 15 Woodruff

2шт.

631aa

631AA

ROD brake lever, with adjustable yoke end, consists of;, Start Year: 01-JAN-36

2шт.

02489ab

O2489AB

ROD

1шт.

02701ab

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

END

1шт.

a635aa

A635AA

SHOE brake, with lining, consists of;, Start Year: 01-JAN-36

4шт.

4746a

4746A

SHOE

1шт.

02498ab1

O2498AB1

LINING

1шт.

RIVETS 3/16" x 3/4"

14шт.

1124aa

1124AA

LEVER foot, with collar

1шт.
