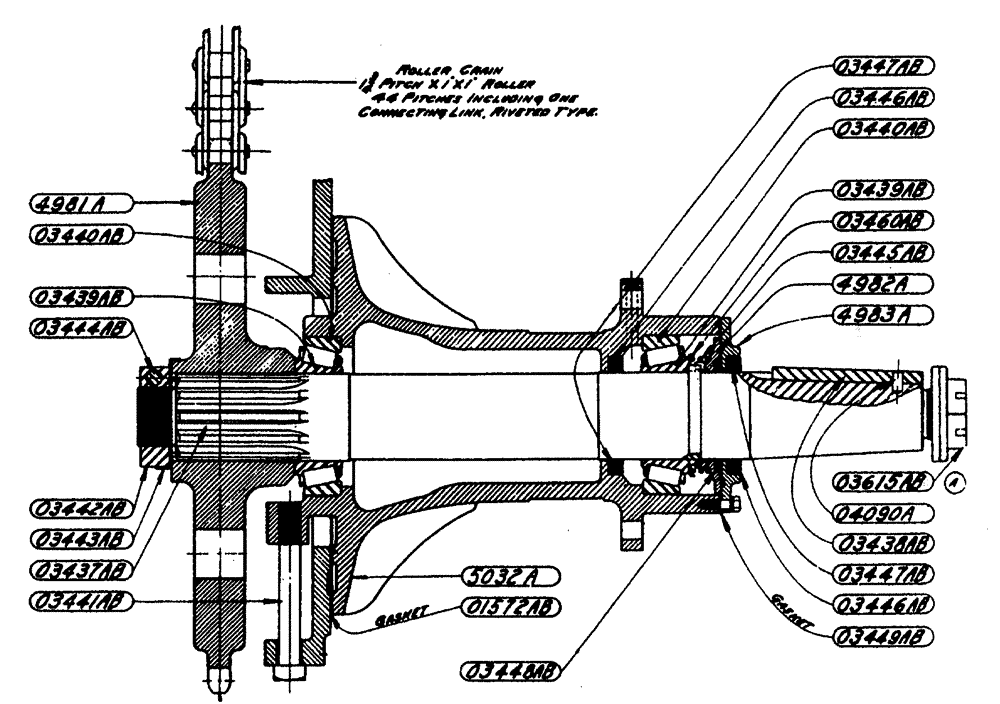

Запчасти Case IH L-SERIES (058) - 3-1/2 REAR AXLE ASSEMBLY (06) - POWER TRAIN

4981a

4981A

SPROCKET rear axle, 38 teeth, Start Year: 01-JAN-39

2шт.

4982a

4982A

PLATE oil seal pressure, Start Year: 01-JAN-39

2шт.

4983a

4983A

COVER end, rear axle, Start Year: 01-JAN-39

2шт.

SCREW 3/8" x 1" hexagon head cap, N.C. thread

6шт.

WASHER 3/8" standard lock

6шт.

5032a

5032A

HOUSING rear axle, Start Year: 01-JAN-39

2шт.

FITTING 1/4", 67 - 1/2" degree, lubricating, Lincoln no. 5350

2шт.

PLUG 1/4" pipe, square head

2шт.

04090a

O4090A

DOWEL rear axle key, Start Year: 01-JAN-39

2шт.

01255ab

O1255AB

STUD rear axle housing, Start Year: 01-JAN-39

10шт.

NUT 3/4" hexagon, light, N.F. thread

10шт.

WASHER 3/4" standard lock

10шт.

01532ab

O1532AB

WASHER rear axle housing, Start Year: 01-JAN-39

10шт.

01572ab

O1572AB

GASKET rear axle housing, Start Year: 01-JAN-39

1шт.

02093ab1

O2093AB1

CHAIN roller, rear axle drive, 43 links, Start Year: 01-JAN-39

2шт.

02094ab1

O2094AB1

LINK roller, rear axle drive chain, Start Year: 01-JAN-39

1шт.

02095ab1

O2095AB1

LINK connecting, with detachable plate and cotter pins, Start Year: 01-JAN-39

1шт.

03437ab

O3437AB

SHAFT 3 - 1/2" rear axle, Start Year: 01-JAN-39

2шт.

03438ab

A11333

KEY

rear axle, Start Year: 01-JAN-39

2шт.

03439ab

O3439AB

CONE rear axle bearing, inner and outer, Timken no. 759, Start Year: 01-JAN-39

4шт.

03440ab

O3440AB

CUP rear axle bearing, inner and outer, timken no. 752, Start Year: 01-JAN-39

4шт.

03441ab

O3441AB

SCREW adjusting, rear axle, Start Year: 01-JAN-39

2шт.

03442ab

O3442AB

NUT adjusting, rear axle bearing, Start Year: 01-JAN-39

2шт.

03443ab

O3443AB

PLATE lock, rear axle shaft, Start Year: 01-JAN-39

2шт.

03444ab

O3444AB

BOLT to lock rear axle shaft adjusting nut, Start Year: 01-JAN-39

2шт.

NUT 5/8" light, castle, N.F. thread

2шт.

PIN 1/8" x 1 - 1/4" cotter

2шт.

03445ab

O3445AB

SPRING rear axle pressure plate, Start Year: 01-JAN-39

2шт.

03446ab

O3446AB

RETAINER rear axle felt washer, Start Year: 01-JAN-39

4шт.

03447ab

O3447AB

WASHER felt, rear axle, Start Year: 01-JAN-39

4шт.

03448ab

O3448AB

RING cork, rear axle oil seal, Start Year: 01-JAN-39

2шт.

03449ab

O3449AB

GASKET rear axle housing end cover, Start Year: 01-JAN-39

2шт.

03460ab

O3460AB

RETAINER rear axle spring, Start Year: 01-JAN-39

2шт.

03615ab

O3615AB

NUT rear axle shaft, Start Year: 01-JAN-39

2шт.
