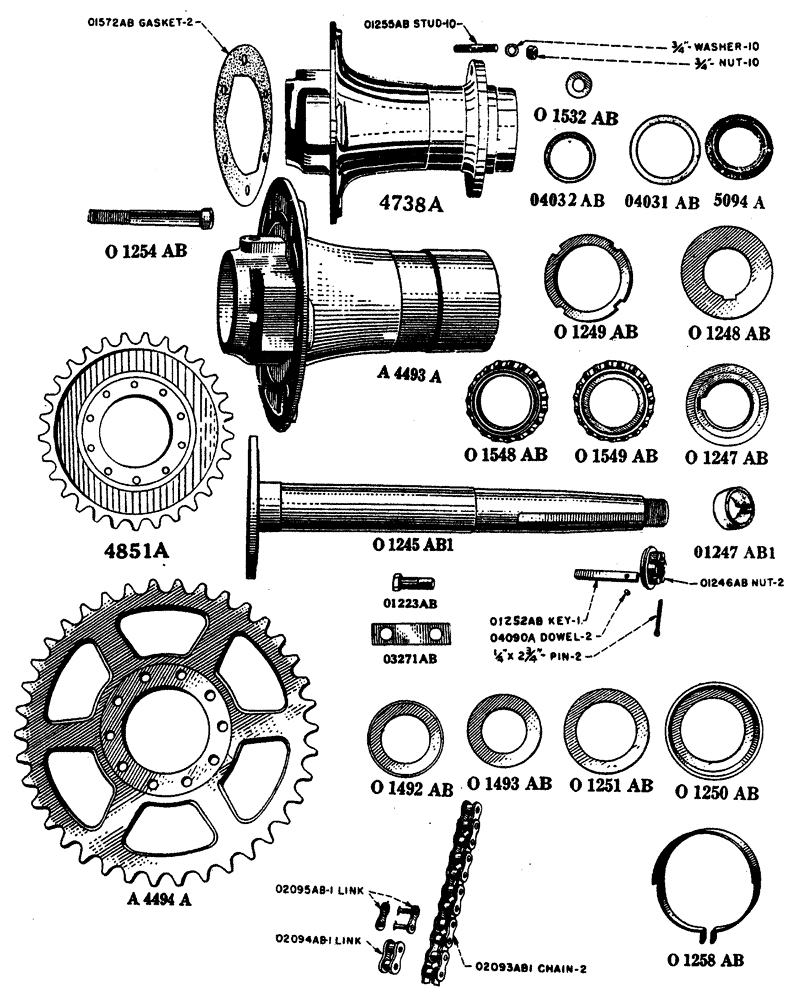

Запчасти Case IH L-SERIES (056) - REAR AXLE (06) - POWER TRAIN

a4493a

A4493A

HOUSING rear axle, see 4738A, Start Year: 01-JAN-29

2шт.

CUP 1/4" male, 2 ounce grease

2шт.

a4494a

A4494A

SPROCKET rear axle, 38 teeth, see 4851A, Start Year: 01-JAN-29

2шт.

4738a

4738A

HOUSING rear axle, used with rear wheel brakes, see A4493, Start Year: 01-JAN-36

2шт.

CUP 1/4", 2 ounce female grease

2шт.

NIPPLE 1/8" close

2шт.

4851a

4851A

SPROCKET rear axle, 29 teeth, for pneumatic tire tractor, see A449A, Start Year: 01-JAN-29

2шт.

5094a

5094A

RETAINER rear axle oil seal, L326931 and above, Start Year: 01-JAN-36

2шт.

SCREW 5/16" x 7/8" hexagon head cap, N.C. thread

6шт.

WASHER 5/16" standard lock

6шт.

04090a

O4090A

DOWEL rear axle key, L300601 and above, Start Year: 01-JAN-33

2шт.

01223ab

O1223AB

BOLT rear axle sprocket, Start Year: 01-JAN-29

6шт.

NUT 5/8" hexagon, N.F. thread

6шт.

WASHER 5/8" standard lock

6шт.

01245ab1

O1245AB1

SHAFT rear axle, Start Year: 01-JAN-29

2шт.

01246ab

O1246AB

NUT rear axle, Start Year: 01-JAN-29

2шт.

PIN 1/2" x 2 - 3/4" cotter

2шт.

01247ab

O1247AB

NUT rear axle bearing, L326932 and below, use 209AA

1шт.

01247ab1

O1247AB1

NUT rear axle bearing, L326931 and above, use A209AA

1шт.

01248ab

O1248AB

WASHER lock, rear axle bearing nut, Start Year: 01-JAN-29

2шт.

01249ab

O1249AB

NUT lock, rear axle bearing, use 209AA or A209AA

1шт.

01250ab

O1250AB

RETAINER rear axle felt washer, outer, L326932 and below, see O4032AB, Years: 01-JAN-29-01-JAN-36

2шт.

01251ab

O1251AB

WASHER felt, rear axle, outer, L326932 and below, see O4031AB

2шт.

01252ab

O1252AB

KEY rear axle, Start Year: 01-JAN-29

2шт.

01254ab

O1254AB

SCREW adjusting, rear axle housing, Start Year: 01-JAN-29

2шт.

01255ab

O1255AB

STUD rear axle housing, Start Year: 01-JAN-29

10шт.

NUT 3/4" hexagon, light, N.F. thread

10шт.

WASHER 3/4" standard lock

10шт.

01258ab

O1258AB

GUARD rear axle, dust, Start Year: 01-JAN-29

2шт.

BOLT 3/8" x 1 - 1/4" machine, with square nut

2шт.

01492ab

O1492AB

RETAINER rear axle felt washer, inner, Start Year: 01-JAN-29

2шт.

01493ab

O1493AB

WASHER felt, rear axle inner, Start Year: 01-JAN-29

2шт.

01532ab

O1532AB

WASHER rear axle housing stud, Start Year: 01-JAN-29

10шт.

01549ab

O1549AB

CUP rear axle bearing, inner and outer, Timken no. 572, Start Year: 01-JAN-29

4шт.

01548ab

O1548AB

CONE rear axle bearing, inner, Timken no. 580, Start Year: 01-JAN-29

2шт.

01549ab

O1549AB

CONE rear axle bearing, outer, Timken no. 575, Start Year: 01-JAN-29

2шт.

01572ab

O1572AB

GASKET rear axle housing, Start Year: 01-JAN-29

2шт.

02093ab1

O2093AB1

CHAIN roller, rear axle drive, 43 links, see O3055AB1, Start Year: 01-JAN-29

2шт.

02094ab1

O2094AB1

LINK roller, rear axle drive, Start Year: 01-JAN-29

1шт.

02095ab1

O2095AB1

LINK connecting, with detachable plate and cotter pins, Start Year: 01-JAN-29

1шт.

PIN 1/8" x 7/8" hardened cotter, for O2095AB1 link

2шт.

03055ab1

O3055AB1

CHAIN roller, rear axle drive, 37 links, for pneumatic tire tractors, see O2093AB1, Start Year: 01-JAN-29

2шт.

03271ab

O3271AB

PLATE locking, rear axle sprocket bolt, L301640 and above, Start Year: 01-JAN-33

10шт.

03317ab

O3317AB

WRENCH socket, rear axle nut, Start Year: 01-JAN-29

1шт.

03946ab

O3946AB

WRENCH for adusting 209AA or A209AA lock nut, Start Year: 01-JAN-29

1шт.

04031ab

A26769

GASKET

rear axle oil seal retainer, L326931 and above, see O1251AB, Start Year: 01-JAN-36

2шт.

04032ab

O4032AB

SEAL oil, rear axle, L326931 and above, see O1250AB, Start Year: 01-JAN-36

2шт.

209aa

209AA

NUT with lock nut for rear axle bearing, L326932 and below, consists of;, Years: 01-JAN-29-01-JAN-36

2шт.

01247ab

O1247AB

NUT rear axle bearing

1шт.

01249ab

O1249AB

NUT rear axle bearing

1шт.

a209aa

A209AA

NUT with lock nut for rear axle bearing, L326931 and above, consists of;, Start Year: 01-JAN-36

2шт.

01247ab1

O1247AB1

NUT rear axle bearing

1шт.

01249ab

O1249AB

NUT lock, rear axle bearing

1шт.

4851a

4851A

SPROCKET rear axle, 29 teeth, chains for tractors with pneumatic tires, Start Year: 01-JAN-29

2шт.

The above combination will give the following speeds: 12.75 x 28 pneumatic, 3.44 low, 4.37 intermediate, 5.44 high; 13.50 x 28 pneumatic, 3.53 low, 4.47 intermediate, 5.55 high

1шт.

03055ab1

O3055AB1

CHAIN roller, rear axle drive, 37 links, sprockets and chains for tractors with pneumatic tires, Start Year: 01-JAN-29

2шт.

The above combination will give the following speeds: 12.75 x 28 pneumatic, 3.44 low, 4.37 intermediate, 5.44 high; 13.50 x 28 pneumatic, 3.53 low, 4.47 intermediate, 5.55 high

1шт.

4851a

4851A

SPROCKET rear axle, 29 teeth, chains with high speed gears for tractors with pneumatic tires, Start Year: 01-JAN-29

2шт.

The above combination will give the following speeds: 12.75 x 28 pneumatic, 3.44 low, 4.37 intermediate, 8.80 high; 13.50 x 28 pneumatic, 3.53 low, 4.47 intermediate, 9.05 high

1шт.

02779ab

O2779AB

PINION high speed, 29 teeth, sprockets and chains with high speed gears for tractors with pneumatic tires, Start Year: 01-JAN-29

1шт.

The above combination will give the following speeds: 12.75 x 28 pneumatic, 3.44 low, 4.37 intermediate, 8.80 high; 13.50 x 28 pneumatic, 3.53 low, 4.47 intermediate, 9.05 high

1шт.

02780ab

O2780AB

GEAR high and low, 32 teeth, sprockets and chains, high, for tractors with pneumatic tires, Start Year: 01-JAN-29

1шт.

The above combination will give the following speeds: 12.75 x 28 pneumatic, 3.44 low, 4.37 intermediate, 8.80 high; 13.50 x 28 pneumatic, 3.53 low, 4.47 intermediate, 9.05 high

1шт.

03055ab1

O3055AB1

CHAIN roller, rear axle drive, 37 links, sprockets with high speed gears for tractors with pneumatic tires, Start Year: 01-JAN-29

2шт.

The above combination will give the following speeds: 12.75 x 28 pneumatic, 3.44 low, 4.37 intermediate, 8.80 high; 13.50 x 28 pneumatic, 3.53 low, 4.47 intermediate, 9.05 high

1шт.

4851a

4851A

SPROCKET rear axle, 29 tooth, sprockets and chains with special high speed gears for tractors with pneumatic tires, Start Year: 01-JAN-29

2шт.

The above combination will give the following speeds: 12.75 x 29 pneumatic, 3.44 low, 4.37 intermediate, 13 high; 13.50 x 28 pneumatic, 3.53 low, 4.47 intermediate, 13.3 high

1шт.

02145ab

O2145AB

GEAR high speed, 45 teeth and 26 teeth, sprockets and chains, special, for tractors with pneumatic tires, Start Year: 01-JAN-29

1шт.

The above combination will give the following speeds: 12.75 x 29 pneumatic, 3.44 low, 4.37 intermediate, 13 high; 13.50 x 28 pneumatic, 3.53 low, 4.47 intermediate, 13.3 high

1шт.

02146ab

O2146AB

PINION high speed, 35 teeth, sprockets and chains with special gears for tractors with pneumatic tires, Start Year: 01-JAN-29

1шт.

The above combination will give the following speeds: 12.75 x 29 pneumatic, 3.44 low, 4.37 intermediate, 13 high; 13.50 x 28 pneumatic, 3.53 low, 4.47 intermediate, 13.3 high

1шт.

03055ab1

O3055AB1

CHAIN roller, rear axle drive, 37 links, sprockets with high speed gears for tractors with pneumatic tires, Start Year: 01-JAN-29

2шт.

The above combination will give the following speeds: 12.75 x 29 pneumatic, 3.44 low, 4.37 intermediate, 13 high; 13.50 x 28 pneumatic, 3.53 low, 4.47 intermediate, 13.3 high

1шт.
