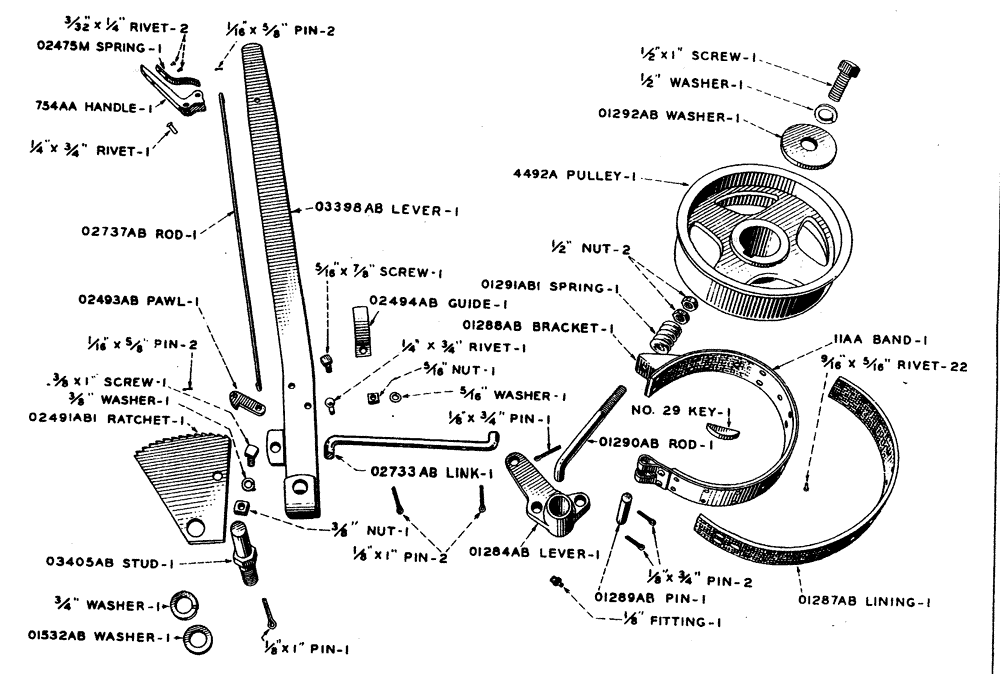

Запчасти Case IH L-SERIES (053) - TRANSMISSION HAND BRAKE FOR TRACTORS EQUIPPED WITH REAR WHEEL BRAKES (06) - POWER TRAIN

4492a

4492A

PULLEY brake, Start Year: 01-JAN-29

1шт.

KEY no. 29 Woodruff

1шт.

01284ab

O1284AB

LEVER brake, Start Year: 01-JAN-29

1шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

1шт.

01287ab

O1287AB

LINING brake, Start Year: 01-JAN-29

1шт.

RIVET 9/64" x 5/16" brass tubular, no. 2561

22шт.

01288ab

O1288AB

BRACKET brake band, Start Year: 01-JAN-29

1шт.

RIVET 1/4" x 1/2" wagon box head

2шт.

01289ab

O1289AB

PIN brake band, Start Year: 01-JAN-29

1шт.

PIN 1/8" x 3/4" cotter

2шт.

01290ab

O1290AB

ROD brake band adjusting, Start Year: 01-JAN-29

1шт.

PIN 1/8" x 3/4" cotter

1шт.

NUT 1/2" hexagon, jam, N.C. thread

2шт.

01291ab1

O1291AB1

SPRING brake band adjusting rod, Start Year: 01-JAN-29

1шт.

01292ab

O1292AB

WASHER thrust, brake pulley, Start Year: 01-JAN-29

1шт.

SCREW 1/2" x 1" hexagon head cap, N.C. thread

1шт.

WASHER 1/2" standard lock

1шт.

01532ab

O1532AB

WASHER brake lever stud, Start Year: 01-JAN-29

1шт.

02491ab

O2491AB

RATCHET hand brake lever, prior tp tractor no. 4301950, see O2491AB1, Years: 01-JAN-29-01-JAN-39

1шт.

02491ab1

O2491AB1

RATCHET hand brake lever, tractor no. 4301950 and after, Start Year: 01-JAN-39

1шт.

SCREW 3/8" x 1" hexagon head cap, N.F. thread

1шт.

NUT 3/8" hexagon, light, N.F. thread

1шт.

WASHER 3/8" standard lock

1шт.

02493ab

O2493AB

PAWL hand brake lever, Start Year: 01-JAN-36

1шт.

RIVET 1/4" x 3/4" round head

1шт.

02494ab

O2494AB

GUIDE hand brake lever, Start Year: 01-JAN-36

1шт.

SCREW 5/16" x 7/8" hexagon head cap, N.F. thread

1шт.

NUT 5/16" hexagon, light, N.F. thread

1шт.

WASHER 5/16" standard lock

1шт.

02733ab

O2733AB

LINK hand brake lever, Start Year: 01-JAN-36

1шт.

PIN 1/8" x 1" cotter

2шт.

02737ab

O2737AB

ROD hand brake lever, Start Year: 01-JAN-36

1шт.

PIN 1/16" x 5/8" cotter

2шт.

02739ab

O2739AB

STOP hand brake lever ratchet, prior to tractor no. 4301950, see O5138AB, Years: 01-JAN-36-01-JAN-39

1шт.

03398ab

O3398AB

LEVER hand brake, Start Year: 01-JAN-36

1шт.

03405ab

O3405AB

STUD hand brake lever, Start Year: 01-JAN-36

1шт.

PIN 1/8" x 1" cotter

1шт.

WASHER 3/4" standard lock

1шт.

05138ab

O5138AB

BRACE hand lever ratchet, tractor no. 4301950 and after, see O2739AB, Start Year: 01-JAN-39

1шт.

SCREW 1/2" x 1 - 3/4" hexagon head cap, N.C. thread

1шт.

02475m

O2475M

SPRING hand brake lever handle pawl, Start Year: 01-JAN-36

1шт.

RIVET 3/32" x 1/4" flat head

2шт.

a11aa

A11AA

BAND brake, with lining, Start Year: 01-JAN-36

1шт.

754aa

754AA

HANDLE brake lever, with spring, Start Year: 01-JAN-36

1шт.

RIVET 1/4" x 3/4" round head

1шт.
