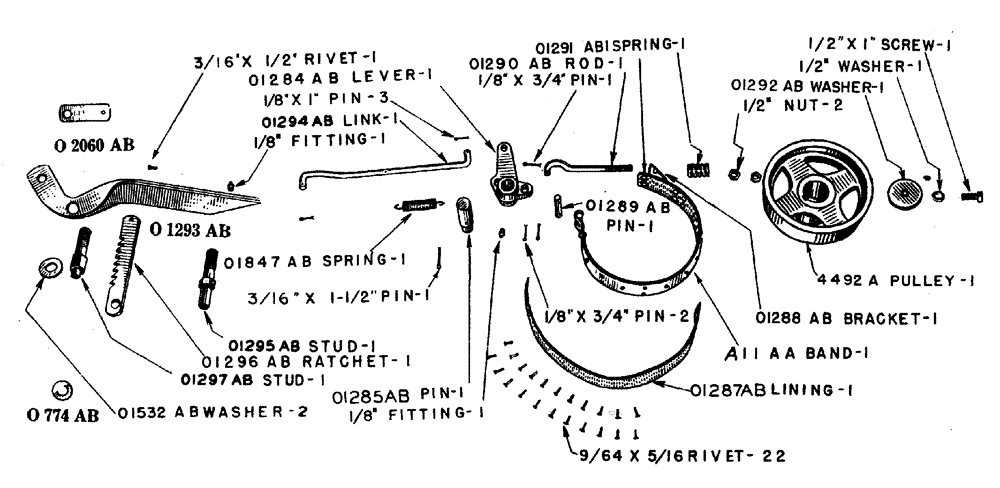

Запчасти Case IH L-SERIES (051) - TRANSMISSION FOOT BRAKE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
4492a
4492A
PULLEY brake, Start Year: 01-JAN-29
1шт.
KEY no. 29 Woodruff
1шт.
0774ab
A26411
WASHER
foot pedal ratchet stud, Start Year: 01-JAN-29
1шт.
01284ab
O1284AB
LEVER brake, Start Year: 01-JAN-29
1шт.
FITTING 1/8" straight lubricating, Lincoln no. 5000
1шт.
01285ab
O1285AB
PIN brake lever hub, Start Year: 01-JAN-29
1шт.
PIN 3/16" x 1 - 1/2" cotter
1шт.
01287ab
O1287AB
LINING brake, Start Year: 01-JAN-29
1шт.
RIVET 9/64" x 5/16" brass tubular no. 2561
22шт.
01288ab
O1288AB
BRACKET brake band, Start Year: 01-JAN-29
1шт.
RIVET 1/4" x 1/2" wagon box head
2шт.
01289ab
O1289AB
PIN brake band, Start Year: 01-JAN-29
1шт.
PIN 1/8" x 3/4" cotter
2шт.
01290ab
O1290AB
ROD brake band adjusting, Start Year: 01-JAN-29
1шт.
PIN 1/8" x 3/4" cotter
1шт.
NUT 1/2" hexagon, jam, N.C. thread
2шт.
01291ab
O1291AB
SPRING brake band adjusting rod, use O1291AB1
1шт.
01291ab1
O1291AB1
SPRING brake band adjusting rod, Start Year: 01-JAN-29
1шт.
01292ab
O1292AB
WASHER thrust, brake pulley, Start Year: 01-JAN-29
1шт.
SCREW 1/2" x 1" hexagon head cap, N.C. thread
1шт.
WASHER 1/2" standard lock
1шт.
01293ab
O1293AB
PEDAL transmission brake foot, Start Year: 01-JAN-29
1шт.
01294ab
O1294AB
LINK foot brake pedal, Start Year: 01-JAN-29
1шт.
PIN 1/8" x 1" cotter
2шт.
01295ab
O1295AB
STUD foot brake pedal, Start Year: 01-JAN-29
1шт.
PIN 3/16" x 1 - 1/4" cotter
1шт.
WASHER 3/4" standard lock
1шт.
01296ab
O1296AB
RATCHET foot pedal, Start Year: 01-JAN-29
1шт.
RIVET 3/16" x 1/2" round head
1шт.
01297ab
O1297AB
STUD foot pedal ratchet, Start Year: 01-JAN-29
1шт.
PIN 1/8" x 1" cotter
1шт.
WASHER 3/4" standard lock
1шт.
01532ab
O1532AB
WASHER foot brake pedal and ratchet studs, Start Year: 01-JAN-29
2шт.
01847ab
O1847AB
SPRING foot pedal, Start Year: 01-JAN-29
1шт.
02060ab
O2060AB
CLIP spring, foot brake pedal, Start Year: 01-JAN-29
1шт.
a11aa
A11AA
BAND brake, with lining, Start Year: 01-JAN-29
1шт.
Выбрано товаров: 36
