(048) - RESILIENT BELT PULLEY / BELT PULLEY PULLER

Запчасти Case IH L-SERIES (048) - RESILIENT BELT PULLEY / BELT PULLEY PULLER (06) - POWER TRAIN

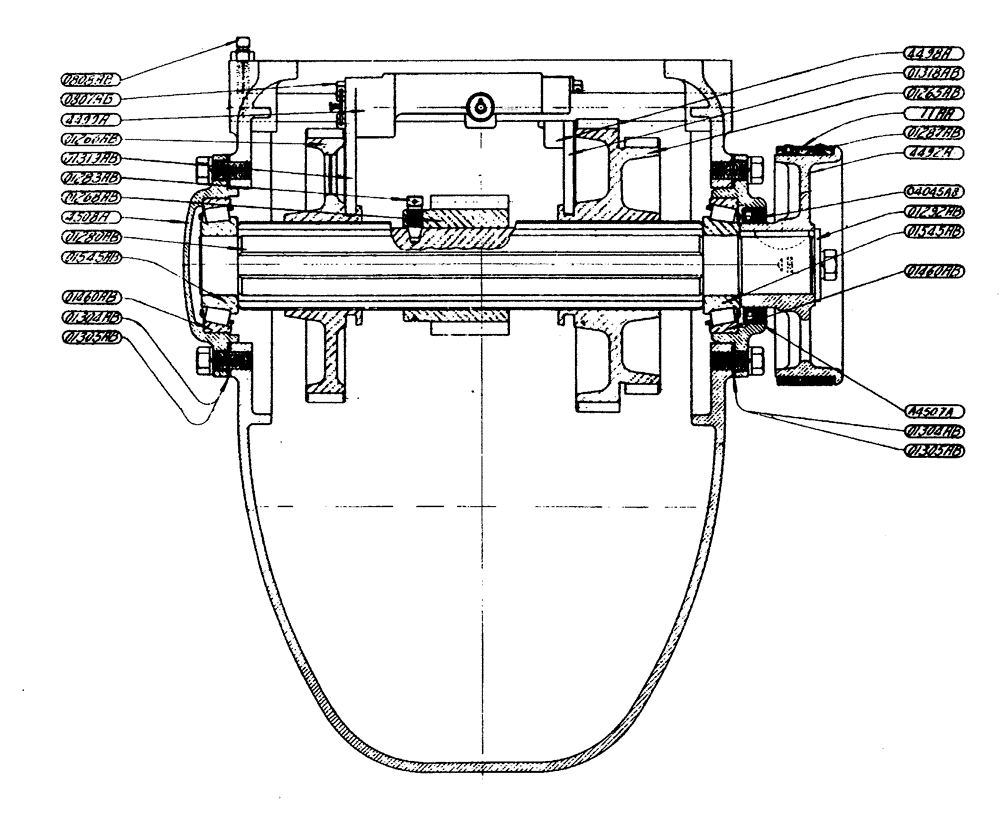

Схема запчастей Case IH L-SERIES - (048) - RESILIENT BELT PULLEY / BELT PULLEY PULLER (06) - POWER TRAIN
01268ab
01304ab
01305ab
01305ab
a4507a
04045ab
01283ab
01545ab
01460ab
0808ab
4492a
01292ab
01304ab
0707ab
01287ab
01545ab
01313ab
11aa
01265ab
01280ab
4508a
01318ab
01460ab
4498a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

5926a

5926A

PULLEY belt, see 3419AA, Start Year: 01-JAN-44

1шт.

5931a

5931A

HUB belt pulley, Start Year: 01-JAN-44

1шт.

07642ab

O7642AB

PLATE belt pulley, Start Year: 01-JAN-44

1шт.

SCREW 3/8" x 7/8" hexagon head cap, N.C. thread

4шт.

WASHER 3/8" standard lock

4шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

1шт.

07643ab

O7643AB

PIN belt pulley driving, Start Year: 01-JAN-44

4шт.

07644ab

O7644AB

RUBBER belt pulley, Start Year: 01-JAN-44

8шт.

3419aa

3419AA

PULLEY belt, with hub, 13" dia. x 8 - 1/4" face, for tractors with O1300AB1 tapered belt pulley shaft

1шт.

01974ab

O1974AB

PLATE belt pulley puller, Start Year: 01-JAN-29

1шт.

01975ab

O1975AB

SPACER belt pulley puller, Start Year: 01-JAN-29

2шт.

0197ab

O197AB

BOLT belt pulley puller, Start Year: 01-JAN-29

2шт.

NUT 3/4" hexagon, N.C. thread, belt pulley puller

2шт.

60aa

60AA

PULLER belt pulley, Start Year: 01-JAN-29

1шт.
