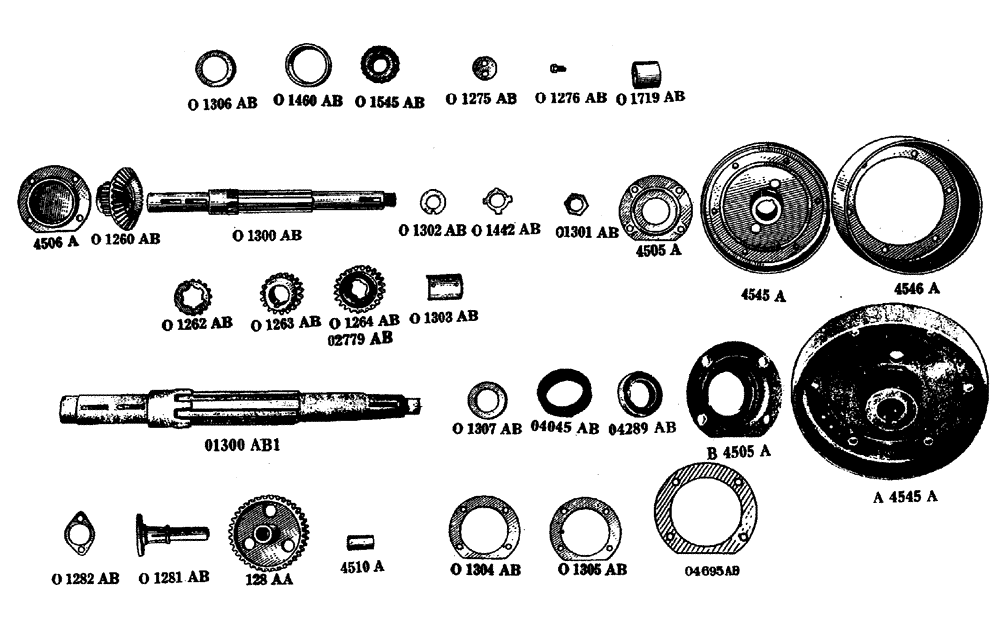

Запчасти Case IH L-SERIES (047) - BELT PULLEY SHAFT (06) - POWER TRAIN

4490a

4490A

PULLEY belt, use 4545A and 4546A

1шт.

4505a

4505A

CARRIER belt pulley shaft bearing, R.H., L326932 and below, Years: 01-JAN-29-01-JAN-36

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

4шт.

WASHER 1/2" standard lock

4шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

1шт.

a4505a

A4505A

CARRIER belt pulley shaft bearing, R.H., L326931 and above to tractor no. L415003 and below, Years: 01-JAN-36-01-JAN-37

1шт.

b4505a

B4505A

CARRIER belt pulley shaft bearing, R.H., L415022 and above, Start Year: 01-JAN-37

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

4шт.

WASHER 1/2" standard lock

4шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

1шт.

4506a

4506A

CARRIER belt pulley shaft bearing, L.H., Start Year: 01-JAN-29

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

4шт.

WASHER 1/2" standard lock

4шт.

4510a

4510A

BUSHING reverse idler gear, Start Year: 01-JAN-29

1шт.

4539a

4539A

SPACER bevel and reverse gear, L305201 and below, Start Year: 01-JAN-29

1шт.

4545a

4545A

PULLEY belt, inner half, for straight end shaft, L308243 to L415003, see A4545A, Years: 01-JAN-29-01-JAN-37

1шт.

KEY no. TX Woodruff

1шт.

a4545a

A4545A

PULLEY belt, inner half, for tapered end shaft, L415002 and above, see 3419AA, Start Year: 01-JAN-37

1шт.

KEY no. TX Woodruff

1шт.

4546a

4546A

PULLEY belt, outer half, L308243 and above, see 4490A and 4790A, Start Year: 01-JAN-29

1шт.

SCREW 1/2" x 1 - 1/2" hexagon head cap, N.F. thread

6шт.

NUT 1/2" hexagon, N.F. thread

6шт.

4709a

4709A

PULLEY belt, outer half, special 16" for driving hammer mills, see 4546A, Start Year: 01-JAN-29

1шт.

01260ab

O1260AB

GEAR transmission bevel and reverse, Start Year: 01-JAN-29

1шт.

KEY no. TX Woodruff

1шт.

01262ab

O1262AB

PINION low speed, Start Year: 01-JAN-29

1шт.

01263ab

O1263AB

PINION intermediate, Start Year: 01-JAN-29

1шт.

KEY no. TX Woodruff

1шт.

01264ab

O1264AB

PINION high speed, see O2779AB, Start Year: 01-JAN-29

1шт.

01275ab

O1275AB

PLATE belt pulley shaft bearing, Start Year: 01-JAN-29

1шт.

01276ab

O1276AB

SCREW belt pulley shaft bearing plate, Start Year: 01-JAN-29

2шт.

01281ab

O1281AB

STUD reverse idler gear, Start Year: 01-JAN-29

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

2шт.

WASHER 1/2" standard lock

2шт.

01282ab

O1282AB

GASKET reverse idler gear stud, Start Year: 01-JAN-29

1шт.

01300ab

O1300AB

SHAFT belt pulley, with straight end, L415003 and below, Years: 01-JAN-29-01-JAN-37

1шт.

To change from 01300AB shaft with straight edge to 01300AB1 shaft with tapered end, will require 1 - 01300AB1 shaft, 1 - B4505A carrier, 1 - 04289AB oil seal and 1 - A4545A belt pulley, inner half

1шт.

KEY no. TX Woodruff

3шт.

01300ab1

O1300AB1

SHAFT belt pulley, with tapered end, L415002 and above, Start Year: 01-JAN-37

1шт.

To change from 01300AB shaft with straight edge to 01300AB1 shaft with tapered end, will require 1 - 01300AB1 shaft, 1 - B4505A carrier, 1 - 04289AB oil seal and 1 - A4545A belt pulley, inner half

1шт.

KEY no. TX Woodruff

3шт.

NUT 1 - 1/8" hexagon, jam, N.F. thread, see O1301AB

1шт.

WASHER 1 - 1/8" light lock, see O1302AB

1шт.

01301ab

O1301AB

NUT for 01300AB belt pulley shaft, L415003 and below, Years: 01-JAN-29-01-JAN-37

1шт.

01303ab

O1303AB

SPACER belt pulley shaft, Start Year: 01-JAN-29

2шт.

01304ab

O1304AB

SHIM belt pulley shaft bearing carrier, no. 30 gauge, Start Year: 01-JAN-29

16шт.

01305ab

O1305AB

SHIM belt pulley shaft bearing carrier, .005" thick, Start Year: 01-JAN-29

18шт.

01306ab

O1306AB

RETAINER belt pulley shaft bearing carrier felt, L326932 and below, see O4045AB, Years: 01-JAN-29-01-JAN-36

2шт.

01307ab

O1307AB

WASHER felt, belt pulley shaft bearing carrier, L326932 and below, see O4045AB, Years: 01-JAN-29-01-JAN-36

2шт.

01442ab

O1442AB

WASHER lock, for O1300AB belt pulley shaft, L415003 and below, Years: 01-JAN-29-01-JAN-37

1шт.

01460ab

412776A1

BEARING CUP

CUP belt pulley shaft, Timken no. 453A, Start Year: 01-JAN-29

2шт.

01545ab

O1545AB

CONE belt pulley shaft, Timken no. 463, Start Year: 01-JAN-29

2шт.

01719ab

O1719AB

SPACER belt pulley, L415003 and below, Years: 01-JAN-29-01-JAN-37

1шт.

02779ab

O2779AB

PINION high speed, for tractors with pneumatic tires, see O1264AB, Start Year: 01-JAN-29

1шт.

04045ab

A27838

OIL SEAL,66.67mm ID x 92.2mm OD x 11.89mm Thk

oil, belt pulley shaft, L326931 and above to L415003 and below, see O1306AB and O4289AB, Years: 01-JAN-36-01-JAN-37

1шт.

04289ab

O4289AB

SEAL oil, belt pulley shaft, L415002 and above, see O1306AB and O4045AB, Start Year: 01-JAN-37

1шт.

04695ab

O4695AB

SHIM belt pulley shaft bearing carrier, .003" thick, Start Year: 01-JAN-38

4шт.

60aa

60AA

PULLER belt pulley, Start Year: 01-JAN-29

1шт.

128aa

128AA

GEAR reverse idler, with bushing, Start Year: 01-JAN-29

1шт.
