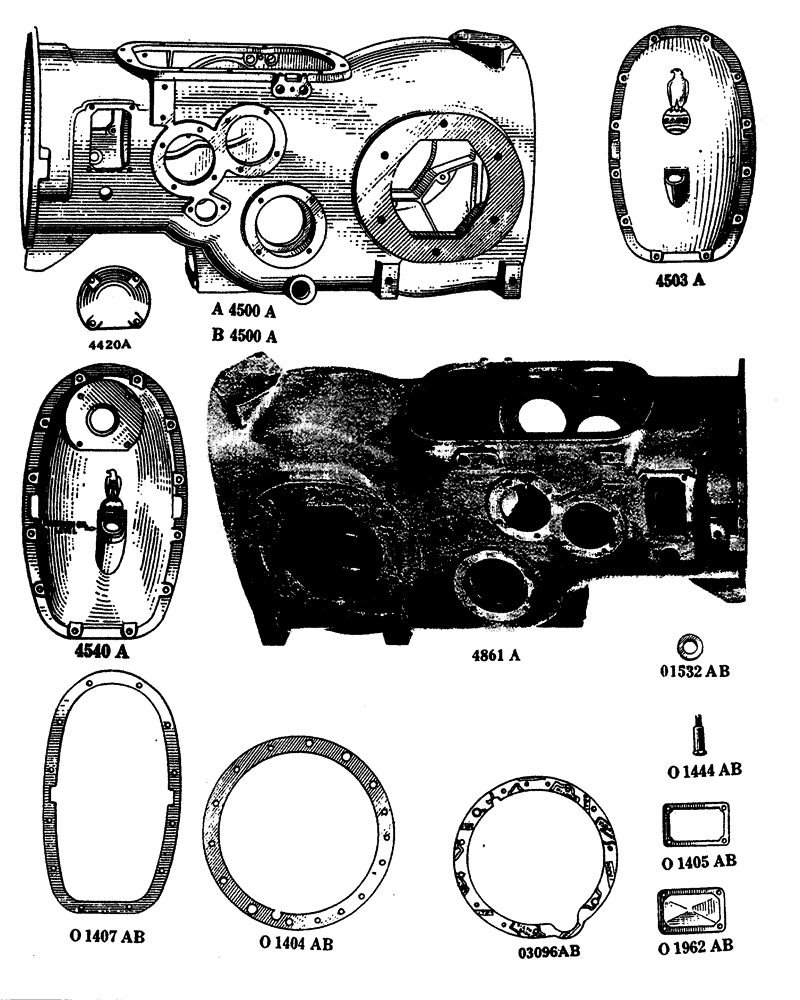

Запчасти Case IH L-SERIES (044) - TRANSMISSION CASE (06) - POWER TRAIN

4420a

4420A

CAP for 4540A transmission case rear cover, Start Year: 01-JAN-29

1шт.

SCREW 1/2" x 1 - 1/4" hex. head cap N.C. thread

4шт.

WASHER 1/2" standard lock

4шт.

a4500a

A4500A

X

CASE transmission, L300768 and below, for repairs furnish;, Years: 01-JAN-29-01-JAN-34

1шт.

b4500a

B4500A

CASE

1шт.

03298ab

O3298AB

BUSHING

4шт.

3/4" x 1 - 3/4" cap screw, N.C. thread

4шт.

The holes in the platform side channels are to be reamed out to dimension 1.248" - 1.250" to take the bushings. If 01443AB1 straight bolt is used to fasten radius rod to transmission case, then furnish 01443AB2 tapered pivot ball with 1 - 4972A and 1 - 4973A ball socket and cap with bolts, nuts and washers

1шт.

PLUG 3/8" pipe, square head

1шт.

PLUG 1/2" pipe, square head

1шт.

PLUG 1" pipe, square head

1шт.

PLUG 1 - 1/2" pipe, square head

1шт.

b4500a

B4500A

CASE transmission, L300767 and above to tractor no. 4206422, see 4861A or 5034A, Years: 01-JAN-34-01-JAN-38

1шт.

PLUG 3/8" pipe, square head

1шт.

PLUG 1/2" pipe, square head

1шт.

PLUG 1" pipe, square head

1шт.

PLUG 1 - 1/2" pipe, square head

1шт.

4503a

4503A

COVER rear, transmission case, see 450A, Start Year: 01-JAN-29

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

12шт.

WASHER 1/2" standard lock

12шт.

PLUG 1 - 1/4" pipe, square head

1шт.

4504a

4504A

COVER transmission hand hole, use O1962AB

1шт.

4504a

4504A

COVER rear, transmission case, used when tractor is equipped with power take off, see 4503A, Start Year: 01-JAN-29

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

12шт.

WASHER 1/2" standard lock

12шт.

PLUG 1 - 1/4" pipe, square head

1шт.

4861a

4861A

CASE transmission, tractor no. 4206422 and after, used with electric lighting and starting attachment, for repairs furnish;, Start Year: 01-JAN-38

1шт.

a4861a

A4861A

TRANSMISSION case

1шт.

3/4" x 2" cap screw, N.C. thread

2шт.

3/4" x 2 - 3/4" cap screw, N.C. thread

2шт.

3/4" standard lock washer

4шт.

PLUG 3/8" pipe, square head

1шт.

PLUG 1/2" pipe, square head

1шт.

PLUG 1" pipe, square

1шт.

PLUG 1 - 1/2" pipe, square head

1шт.

a4861a

A4861A

CASE transmission, tractor no. 4206422 and after, used with electric lighting and starting attachment, see A4500A, B4500A or 5034A, Start Year: 01-JAN-38

1шт.

PLUG 3/8" pipe, square head

1шт.

PLUG 1/2" pipe, square head

1шт.

PLUG 1" pipe, square head

1шт.

PLUG 1 - 1/2" pipe square head

1шт.

5034a

5034A

CASE transmission, Pacific Coast Special, see A4500A, B4500A, 4861A or A4861A, Start Year: 01-JAN-39

1шт.

PLUG 3/8" pipe, square head

1шт.

PLUG 1/2" pipe, square head

1шт.

PLUG 1" pipe, square head

1шт.

PLUG 1 - 1/2" pipe, square head

1шт.

01404ab

O1404AB

GASKET motor to transmission, prior to tractor no. 4206422, see O3096AB, Years: 01-JAN-29-01-JAN-38

1шт.

01405ab

O1405AB

X

GASKET transmission hand hole cover, Start Year: 01-JAN-29

2шт.

01407ab

O1407AB

X

GASKET transmission case rear cover, Start Year: 01-JAN-29

1шт.

0144ab

O144AB

BOLT transmission and cylinder flange, Start Year: 01-JAN-29

2шт.

NUT 5/8" hexagon, light, N.F. thread

2шт.

WASHER 5/8" standard lock

2шт.

01532ab

O1532AB

WASHER for bolts betwen cylinder and transmission, Start Year: 01-JAN-29

10шт.

01962ab

O1962AB

COVER transmission hand hole, Start Year: 01-JAN-29

2шт.

SCREW 1/2" x 3/4" hexagon head cap, N.C. thread

8шт.

WASHER 1/2" standard lock

8шт.

03096ab

O3096AB

X

GASKET motor to transmission, tractor no. 4206422 and after, see O1404AB, Start Year: 01-JAN-38

1шт.
