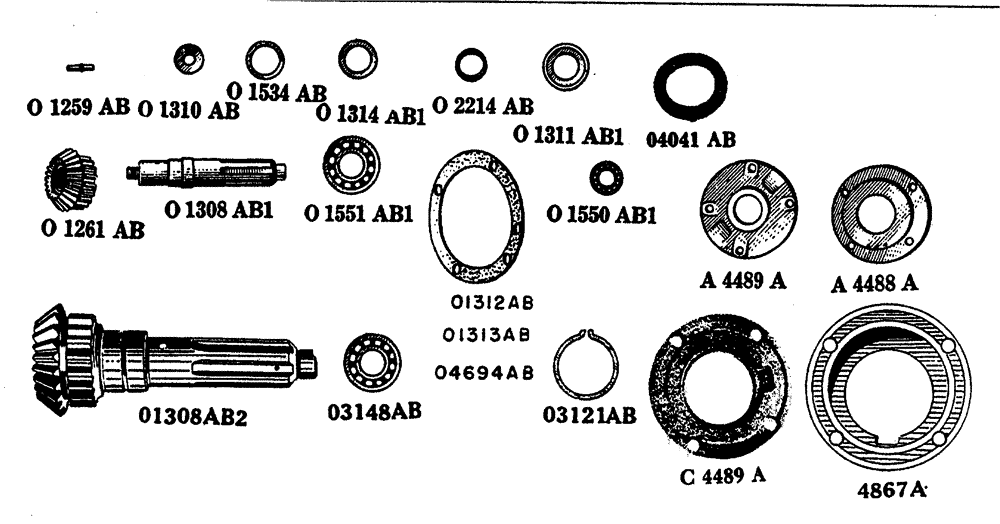

Запчасти Case IH L-SERIES (041) - CLUTCH SHAFT (06) - POWER TRAIN

a4488a

A4488A

CARRIER clutch shaft bearing, L304709 and below, see 4867A, Years: 01-JAN-29-01-JAN-34

1шт.

a4489a

A4489A

FLANGE clutch shaft bearing carrier, L304709 and below, see B4489A, Years: 01-JAN-29-01-JAN-34

1шт.

SCREW 1/2" x 1 - 3/4" hexagon head cap, N.C. thread

4шт.

WASHER 1/2" standard lock

4шт.

b4489a

B4489A

FLANGE clutch shaft bearing carrier to L326931, L304708 and above, Years: 01-JAN-34-01-JAN-36

1шт.

SCREW 1/2" x 1 - 3/4" hexagon head cap, N.C. thread

4шт.

WASHER 1/2" standard lock

4шт.

04489a

O4489A

FLANGE clutch shaft bearing carrier, L326931 and above, Start Year: 01-JAN-36

1шт.

SCREW 1/2" x 1 - 3/4" hexagon head cap, N.C. thread

4шт.

WASHER 1/2" standard lock

4шт.

4867a

4867A

CARRIER clutch shaft bearing, L304708 and above, see A4488A, Start Year: 01-JAN-34

1шт.

01259ab

O1259AB

KEY for 01261AB pinion, L304709 and below, Years: 01-JAN-29-01-JAN-34

1шт.

01261ab

O1261AB

PINION clutch shaft bevel, L304709 and below, see 01308AB2, Years: 01-JAN-29-01-JAN-34

1шт.

01308ab1

O1308AB1

SHAFT clutch, L304709 and below, Years: 01-JAN-29-01-JAN-34

1шт.

01308ab2

O1308AB2

SHAFT clutch, with pinion, L304708 and above, Start Year: 01-JAN-34

1шт.

KEY no. 141 Woodruff

1шт.

01309ab

O1309AB

NUT for 01308AB1 clutch shaft, L304709 and below, Years: 01-JAN-29-01-JAN-34

1шт.

01310ab

O1310AB

WASHER for 01308AB1 clutch shaft, L304709 and below, Years: 01-JAN-29-01-JAN-34

1шт.

01311ab1

O1311AB1

THROWER oil, for 01308AB1 clutch shaft, L304709 and below, Years: 01-JAN-29-01-JAN-34

1шт.

01312ab

O1312AB

SHIM clutch shaft bearing carrier, no. 30 gauge, Start Year: 01-JAN-29

4шт.

01313ab

O1313AB

SHIM clutch shaft bearing carrier, .005" thick, Start Year: 01-JAN-29

4шт.

01314ab1

O1314AB1

WASHER felt, for 01551AB1 clutch shaft bearing, L304709 and below, see O3521AB and 04041AB, Years: 01-JAN-29-01-JAN-34

1шт.

01534ab

O1534AB

RETAINER clutch shaft felt, L304709 and below, see O3119AB, Years: 01-JAN-29-01-JAN-34

1шт.

01550ab

O1550AB

BEARING pilot, clutch shaft, New Departure no. 1206, use O1550AB1

1шт.

01550ab1

O1550AB1

BEARING pilot clutch shaft, New Departure no. 7206, Start Year: 01-JAN-29

1шт.

01551ab1

O1551AB1

BEARING clutch shaft, New Departure no. 1310, L304709 and below, see O3148AB, Years: 01-JAN-29-01-JAN-34

1шт.

02214ab

O2214AB

THIMBLE for pressing on 01314AB1 felt washer, L304709 and below, Years: 01-JAN-29-01-JAN-34

1шт.

02890ab1

O2890AB1

GAUGE for setting clutch shaft bevel pinion, Start Year: 01-JAN-29

1шт.

03119ab

O3119AB

RETAINER clutch shaft felt, L304708 and above to L326931, see O1534AB, Years: 01-JAN-34-01-JAN-36

1шт.

03121ab

O3121AB

RING snap, for 01308AB2 clutch shaft, L304708 and above, Start Year: 01-JAN-34

1шт.

03148ab

O3148AB

BEARING clutch shaft, New Departure no. 7213, L304708 and above, see O1551AB1, Start Year: 01-JAN-34

1шт.

03521ab

O3521AB

WASHER felt, clutch shaft bearing, L304708 and above, to L326931, see O1314AB1 and 04041AB, Years: 01-JAN-34-01-JAN-36

1шт.

04041ab

O4041AB

X

SEAL oil, clutch shaft, L326931 and above, see O1314AB1 and O3521AB, Start Year: 01-JAN-36

1шт.

04696ab

O4696AB

SHIM clutch shaft bearing carrier, .003" thick, Start Year: 01-JAN-29

2шт.
