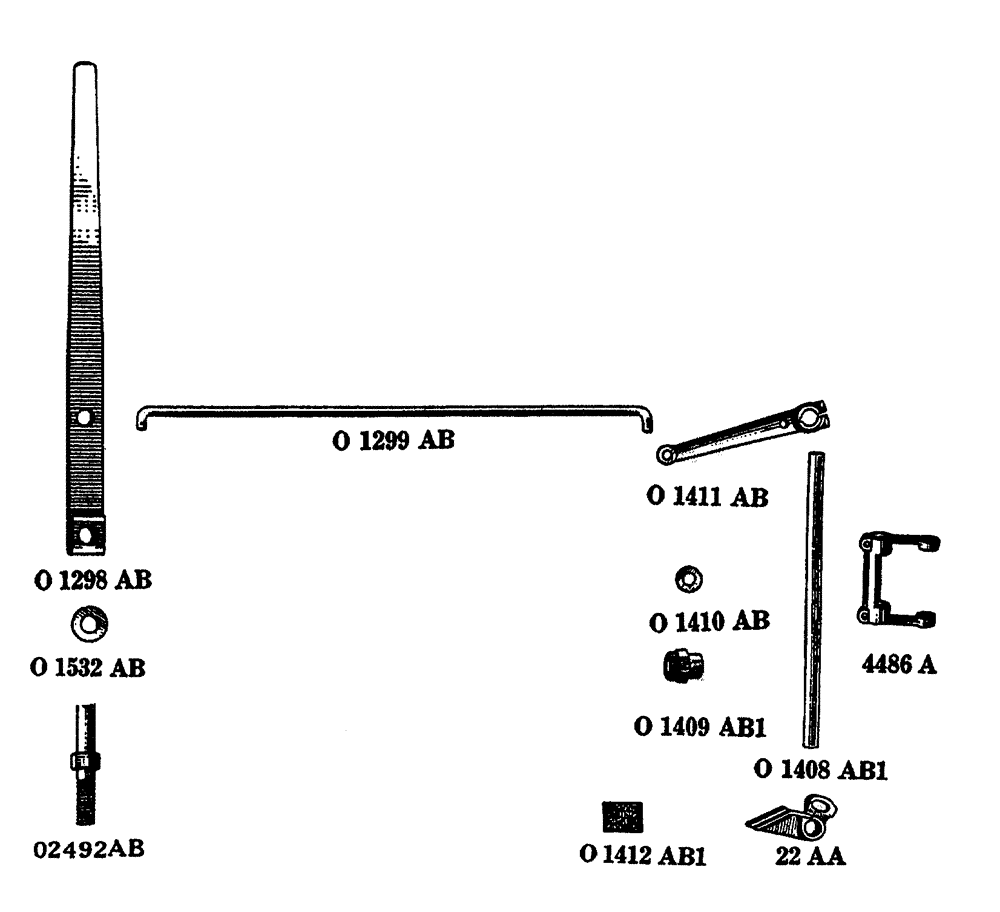

Запчасти Case IH L-SERIES (039) - CLUTCH THROWOUT PARTS (06) - POWER TRAIN

4486a

4486A

FORK clutch throwout, Start Year: 01-JAN-29

1шт.

SCREW 3/8" x 1 - 1/2" hexagon head cap, N.C. thread

2шт.

WASHER 3/8" standard lock

2шт.

a4491

A4491

SHOE belt pully brake, use 22AA

1шт.

01298ab

O1298AB

LEVER clutch throwout hand, Start Year: 01-JAN-29

1шт.

01299ab

O1299AB

ROD clutch throwout, Start Year: 01-JAN-29

1шт.

PIN 1/8" x 1" cotter

2шт.

01408ab1

O1408AB1

SHAFT clutch throwout, Start Year: 01-JAN-29

1шт.

KEY no. 15, Woodruff

3шт.

01409ab1

O1409AB1

GLAND clutch throwout shaft, Start Year: 01-JAN-29

1шт.

01410ab

O1410AB

WASHER felt, clutch throwout shaft, Start Year: 01-JAN-29

1шт.

01411ab

O1411AB

ARM clutch throwout shaft, Start Year: 01-JAN-29

1шт.

BOLT 3/8" x 2 - 1/4" machine, with square nut, N.C. thread

1шт.

WASHER 3/8" standard lock

1шт.

01412ab1

A29951

LINING

belt pulley brake shoe, Start Year: 01-JAN-29

1шт.

RIVET 9/64" x 10/16" brass tubular, no. 2561

4шт.

01532ab

O1532AB

WASHER clutch throwout hand lever stud, Start Year: 01-JAN-29

1шт.

01877ab

O1877AB

STUD clutch throwout hand lever, Start Year: 01-JAN-29

1шт.

PIN 3/16" x 1 - 1/4" cotter

1шт.

WASHER 3/4" standard lock

1шт.

02492ab

O2492AB

STUD clutch throwout hand lever, use 01877AB

1шт.

PIN 3/16" x 1 - 1/4" cotter

1шт.

WASHER 3/4" standard lock

1шт.

22aa

22AA

SHOE belt pulley brake, with lining, Start Year: 01-JAN-29

1шт.

SCREW 3/8" x 1 - 1/2" cup point set, N.C. thread

1шт.

BOLT 1/2" x 2 - 1/4" machine, with hexagon nut, N.C. thread

1шт.

NUT 3/8" hexagon, jam, N.C. thread

1шт.

WASHER 1/2" standard plain

1шт.
