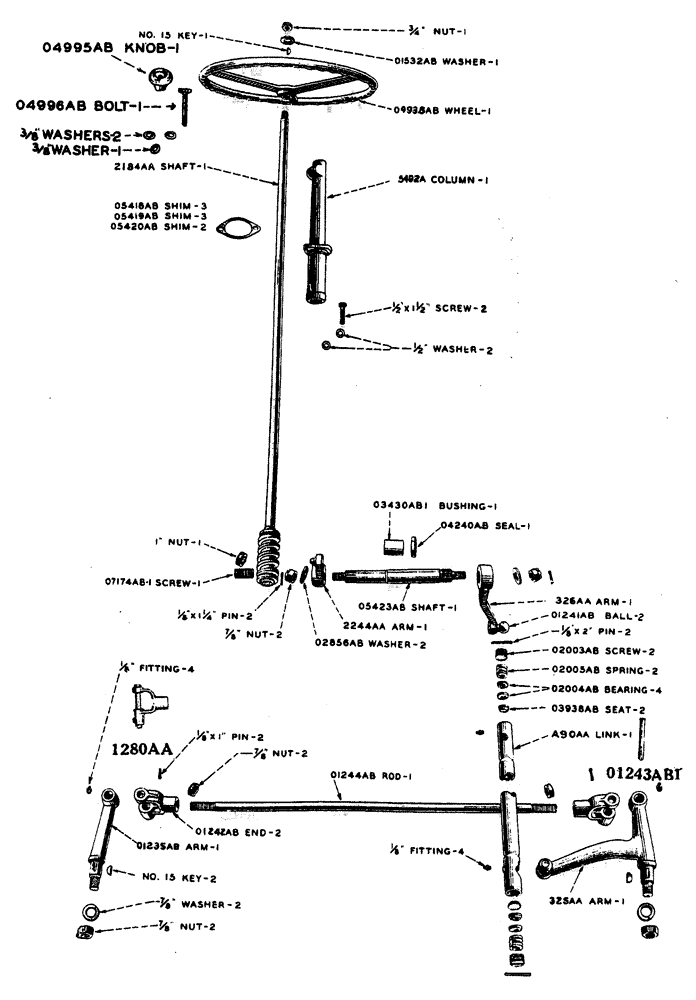

Запчасти Case IH L-SERIES (078) - STEERING GEAR, CAM & CAM LEVER TYPE (TRACTOR NO. 4402720 AND AFTER) (05) - STEERING

5492a

5492A

STAND

COLUMN steering, Start Year: 01-JAN-40

1шт.

Included in Kit 2193AA

1шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

1шт.

SCREW 1/2" x 1 - 1/2" hexagon head cap, N.C. thread

2шт.

WASHER 1/2" standard lock

2шт.

01235ab

O1235AB

ARM steering spindle, R.H., see 325AA, Start Year: 01-JAN-40

1шт.

FITTING 1/8" straight lubrication, Lincoln no. 5000

1шт.

KEY no. 15 Woodruff

1шт.

NUT 7/8" hexagon, N.F. thread

1шт.

WASHER 7/8" standard lock

1шт.

01241ab

O1241AB

BALL steering spindle, L.H., and steering drop arm, Start Year: 01-JAN-40

2шт.

01242ab

O1242AB

END yoke, tie rod, use 1280AA

1шт.

01243ab1

O1243AB1

PIN tie rod yoke end, Start Year: 01-JAN-40

2шт.

PIN 1/8" x 1" cotter

2шт.

01244ab

O1244AB

ROD tie, front axle, Start Year: 01-JAN-40

1шт.

NUT 7/8" hexagon, jam, N.F. thread

2шт.

01532ab

O1532AB

WASHER steering shaft, upper end, Start Year: 01-JAN-40

1шт.

Included in Kit 2193AA

1шт.

02003ab

O2003AB

X

SCREW steering drag link, Start Year: 01-JAN-40

2шт.

02004ab

O2004AB

BEARING steering drag link, Start Year: 01-JAN-40

4шт.

02005ab

A26630

VALVE SPRING

SPRING steering drag link, Start Year: 01-JAN-40

2шт.

02856ab

O2856AB

WASHER steering drop arm shaft, Start Year: 01-JAN-40

2шт.

Included in Kit 2193AA

1шт.

03098ab

O3098AB

PLUG for power take off shifter hole in 5491A cover, Start Year: 01-JAN-40

1шт.

Included in Kit 2193AA

1шт.

03430ab1

O3430AB1

BUSHING steering drop arm shaft, outer, Start Year: 01-JAN-40

1шт.

03938ab

A26767

SEAT

AND SPACER steering drag link, Start Year: 01-JAN-40

2шт.

04240ab

A26777

OIL SEAL

oil, steering drop arm shaft, Start Year: 01-JAN-40

1шт.

Included in Kit 2193AA

1шт.

04935ab

A7668

WHEEL

steering, Start Year: 01-JAN-40

1шт.

Included in Kit 2193AA

1шт.

04995ab

A26845

KNOB

for O4935AB wheel, Start Year: 01-JAN-40

1шт.

Included in Kit 2193AA

1шт.

04996ab

O4996AB

BOLT steering wheel knob, for O4935AB wheel, Start Year: 01-JAN-40

1шт.

Included in Kit 2193AA

1шт.

NUT 3/8" hexagon, jam, N.C. thread

1шт.

WASHER 3/8" standard lock

1шт.

WASHER 3/8" standard plain

2шт.

05417ab

O5417AB

PLUG end, steering column, Start Year: 01-JAN-40

1шт.

Included in Kit 2193AA

1шт.

05418ab

O5418AB

SHIM steering column, .003" thick, Start Year: 01-JAN-40

3шт.

Included in Kit 2193AA

1шт.

05419ab

O5419AB

SHIM steering column, .005" thick, Start Year: 01-JAN-40

3шт.

Included in Kit 2193AA

1шт.

05420ab

O5420AB

SHIM steering column, no. 30 gauge thick, Start Year: 01-JAN-40

2шт.

Included in Kit 2193AA

1шт.

05423ab

O5423AB

SHAFT steering drop arm, Start Year: 01-JAN-40

1шт.

Included in Kit 2193AA

1шт.

NUT 7/8" light, castle, N.F. thread

2шт.

PIN 1/8" x 1 - 1/4" cotter

2шт.

05424ab

O5424AB

SCREW adjusting, steering drop arm shaft, use O7174AB1

1шт.

05425ab

O5425AB

BUSHING steering drop arm shaft, use O5425AB1

1шт.

05425ab1

O5425AB1

BUSHING steering drop arm shaft, Start Year: 01-JAN-40

1шт.

Included in Kit 2193AA

1шт.

06711ab

O6711AB

X

BALL 5/16" diameter, steel, for 2184AA shaft, Start Year: 01-JAN-40

32шт.

06712ab

O6712AB

CUP ball bearing, for 2184AA shaft, Start Year: 01-JAN-40

2шт.

06713ab

O6713AB

RING ball bearing cup retainer, for 2184AA shaft, Start Year: 01-JAN-40

2шт.

07174ab1

O7174AB1

SCREW adjusting, steering drop arm shaft, Start Year: 01-JAN-40

1шт.

Included in Kit 2193AA

1шт.

NUT 1" hexagon, jam, N.F. thread

1шт.

a90aa

A90AA

LINK steering drag, Start Year: 01-JAN-40

1шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

2шт.

PIN 1/8" x 2" cotter

2шт.

325aa

325AA

ARM steering spindle, L.H., with ball, see O1235AB, Start Year: 01-JAN-40

1шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

1шт.

KEY no. 15 Woodruff

1шт.

NUT 7/8" hexagon, plain, N.F. thread

1шт.

WASHER 7/8" standard lock

1шт.

326aa

326AA

ARM steering drop, with ball, regular, see 2033AA, Start Year: 01-JAN-40

1шт.

1280aa

1280AA

END yoke, tie rod, with pins, consists of;, Start Year: 01-JAN-40

1шт.

01242ab

O1242AB

1шт.

01243ab1

O1243AB1

1шт.

1/8" cotter pins

1шт.

2033aa

2033AA

ARM steering drop, with ball, Pacific Coast Special, see 326AA, Start Year: 01-JAN-39

1шт.

2184aa

2184AA

SHAFT steering cam, with bearings and snap rings, Start Year: 01-JAN-40

1шт.

Included in Kit 2193AA

1шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

1шт.

KEY no. 15 Woodruff

1шт.

NUT 3/4" hexagon, jam, light, N.F. thread

1шт.

WASHER 3/4" standard lock

1шт.

2244aa

2244AA

ARM steering cam, Start Year: 01-JAN-40

1шт.

Included in Kit 2193AA

1шт.

2193aa

2193AA

Parts to convert steering gears built prior to tractor no. 4402720 from worm and work wheel type to cam and cam lever type. Consists of parts as indicated above and parts listed below;

1шт.

2209aa

2209AA

COVER

1шт.

24171/2a

24171/2A

PLUG

1шт.

05187ab

A26862

OIL SEAL

1шт.

05426ab

O5426AB

LEVER

1шт.

05428ab

O5428AB

BRACKET

1шт.

05429ab

O5429AB

BRACE

1шт.

1/2" x 1-1/4" hex head cap screw, N.C. thread

8шт.

1/2" x 1-1/2" hex cap screw, N.C. thread

2шт.

1/2" x 1-3/4" hex head cap screw, N.C. thread

2шт.

1/2" std. lockwashers

12шт.

1/4" x 5/8" rd. hd. stove bolt

5шт.

1/4" std. lockwashers

6шт.

1/4" std. washer

1шт.

3/8" hex jam nut

1шт.

3/8" std. lockwasher

1шт.

3/8" plain washer

2шт.

3/4" hex jam nut, N.F. thread

1шт.

1" hex jam nut, N.F. thread

1шт.

7/8" castle nut, N.F. thread

2шт.

1/8" x 1 - 1/4" cotter pins

1шт.

KEY no. 15 Woodruff

1шт.

1/8" straight Lincoln fitting, no. 5000

1шт.
