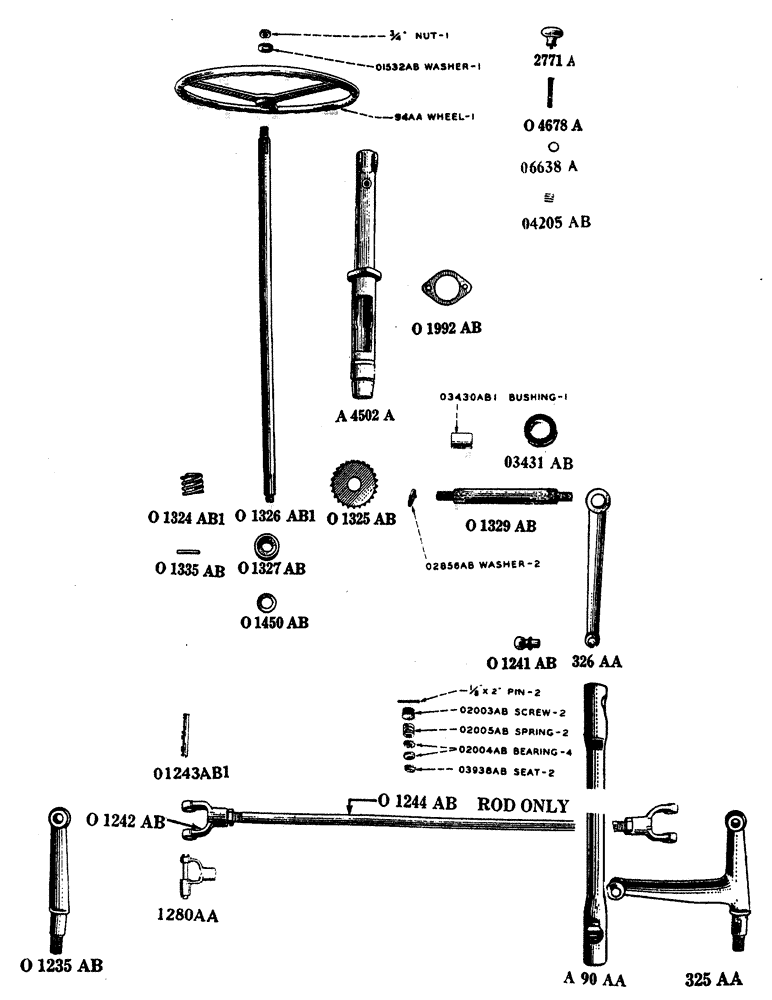

Запчасти Case IH L-SERIES (076) - STEERING GEAR WORM AND WORM WHEEL TYPE (PRIOR TO TRACTOR NO. 4402720) (05) - STEERING

2771a

2771A

KNOB steering wheel, use 1543AA

1шт.

a4395a

A4395A

WHEEL steering, use 94AA

1шт.

4502a

4502A

COLUMN steering shaft, L335203 and below, Start Year: 01-JAN-29

1шт.

CUP 1/8", 1/2 oz. male grease

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

2шт.

WASHER 1/2" standard lock

2шт.

a4502a

A4502A

COLUMN steering shaft, L335204 and above, Years: 01-JAN-29-01-JAN-40

1шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

1шт.

SCREW 1/2" x 1 - 1/2" hexagon head cap, N.C. thread

2шт.

WASHER 1/2" standard lock

2шт.

a4502a

A4502A

COLUMN, steering shaft, L335204 and above, Years: 01-JAN-29-01-JAN-40

1шт.

FITING, 1/8" straight lubricating, Lincoln no. 5000

1шт.

SCREW, 1/2" x 1 - 1/2" hexagon head cap, N.C. thread

2шт.

WASHER, 1/2" standard lock

2шт.

04678a

O4678A

PIN steering wheel handle, Years: 01-JAN-29-01-JAN-40

1шт.

06638a

O6638A

WASHER steering wheel handle spring, Years: 01-JAN-29-01-JAN-40

1шт.

01235ab

O1235AB

ARM steering spindle, R.H., see 325AA, Years: 01-JAN-29-01-JAN-40

1шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

1шт.

KEY no. 15 Woodruff

1шт.

NUT 7/8" hexagon, N.F. thread

1шт.

WASHER 7/8" standard lock

1шт.

01241ab

O1241AB

BALL steering spindle, L.H., and steering drop arm, Years: 01-JAN-29-01-JAN-40

2шт.

01242ab

O1242AB

END yoke, tie rod, use 1280AA

1шт.

01243ab

O1243AB

PIN tie rod yoke end, use O1243AB1

1шт.

01243ab1

O1243AB1

PIN tie rod yoke end, Years: 01-JAN-29-01-JAN-40

2шт.

PIN 1/8" x 1" cotter

2шт.

01244ab

O1244AB

ROD front axle tie, Years: 01-JAN-29-01-JAN-40

1шт.

NUT 7/8" hexagon, jam, N.F. thread

2шт.

01324ab

O1324AB

WORM steering, L335203 and below, Start Year: 01-JAN-29

1шт.

KEY no. 127 Woodruff

1шт.

01324ab1

O1324AB1

WORM steering, L335204 and above, Years: 01-JAN-29-01-JAN-40

1шт.

KEY no. 127 Woodruff

1шт.

01325ab

O1325AB

WHEEL steering worm, Years: 01-JAN-29-01-JAN-40

1шт.

01326ab

O1326AB

SHAFT steering, L335203 and below, Start Year: 01-JAN-29

1шт.

NUT 3/4" hexagon, castle, N.F. thread

2шт.

PIN 1/8" x 1 - 1/4" cotter

2шт.

01326ab1

O1326AB1

SHAFT steering, L335202 and above, Years: 01-JAN-29-01-JAN-40

1шт.

NUT 3/4" hexagon, light, jam, N.F. thread

1шт.

NUT 3/4" hexagon, castle, N.F. thread

1шт.

PIN 1/8" x 1 - 1/4" cotter

1шт.

01327ab

O1327AB

COLLAR steering shaft, Years: 01-JAN-29-01-JAN-40

1шт.

01329ab

O1329AB

SHAFT steering drop arm, Years: 01-JAN-29-01-JAN-40

1шт.

NUT 7/8" light, castle, N.F. thread

2шт.

PIN 1/8" x 1 - 1/4" cotter

2шт.

01335ab

O1335AB

PIN steering shaft collar, Years: 01-JAN-29-01-JAN-40

1шт.

01450ab

O1450AB

WASHER thrust, steering shaft, Years: 01-JAN-29-01-JAN-40

2шт.

01532ab

O1532AB

WASHER steering shaft, upper end, Years: 01-JAN-29-01-JAN-40

1шт.

01992ab

O1992AB

GASKET steering shaft column, Years: 01-JAN-29-01-JAN-40

2шт.

02003ab

O2003AB

X

SCREW steering drag link, Years: 01-JAN-29-01-JAN-40

2шт.

02004ab

O2004AB

BEARING steering drag link, Years: 01-JAN-29-01-JAN-40

4шт.

02005ab

A26630

VALVE SPRING

SPRING steering drag link, Years: 01-JAN-29-01-JAN-40

2шт.

02856ab

O2856AB

WASHER steering drop arm shaft, Years: 01-JAN-30-01-JAN-40

2шт.

03098ab

O3098AB

PLUG for power take off shifter link hole, in 4501A cover, Years: 01-JAN-29-01-JAN-40

1шт.

03430ab

O3430AB

BUSHING steering drop arm shaft, use O3430AB1

1шт.

03430ab1

O3430AB1

BUSHING steering drop arm shaft, outer, Years: 01-JAN-34-01-JAN-40

1шт.

03431ab

O3431AB

WASHER felt, steering drop arm shaft, L301725 and above, Years: 01-JAN-34-01-JAN-40

1шт.

03938ab

A26767

SEAT

AND SPACER steering drag link, Years: 01-JAN-29-01-JAN-40

2шт.

04205ab

O4205AB

SPRING steering wheel handle, Years: 01-JAN-29-01-JAN-40

1шт.

a90aa

A90AA

LINK steering drag, Years: 01-JAN-29-01-JAN-40

1шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

2шт.

PIN 1/8" x 2" cotter

2шт.

94aa

94AA

WHEEL steering, consists of;, Years: 01-JAN-29-01-JAN-40

1шт.

2771a

2771A

1шт.

a4395a

A4395A

1шт.

04678a

O4678A

1шт.

06638a

O6638A

1шт.

04205ab

O4205AB

1шт.

325aa

325AA

ARM steering spindle, L.H. with ball, see O1235AB, Years: 01-JAN-29-01-JAN-40

1шт.

FITTING 1/8" straight lubricating, Lincoln no. 5000

1шт.

KEY no. 15 Woodruff

1шт.

NUT 7/8" hexagon, plain, N.F. thread

1шт.

WASHER 7/8" standard lock

1шт.

326aa

326AA

ARM steering drop, with ball, Years: 01-JAN-29-01-JAN-40

1шт.

1280aa

1280AA

END yoke, tie rod, with pins, consists of 1 - 1/8" x 1" cotter pin and:, Years: 01-JAN-29-01-JAN-40

2шт.

01242ab

O1242AB

1шт.

01243ab1

O1243AB1

1шт.

1543aa

1543AA

KNOB steering wheel, with spring and washer, consists of;, Years: 01-JAN-29-01-JAN-40

1шт.

2771a

2771A

1шт.

04678a

O4678A

1шт.

06638a

O6638A

1шт.

04205ab

O4205AB

1шт.
