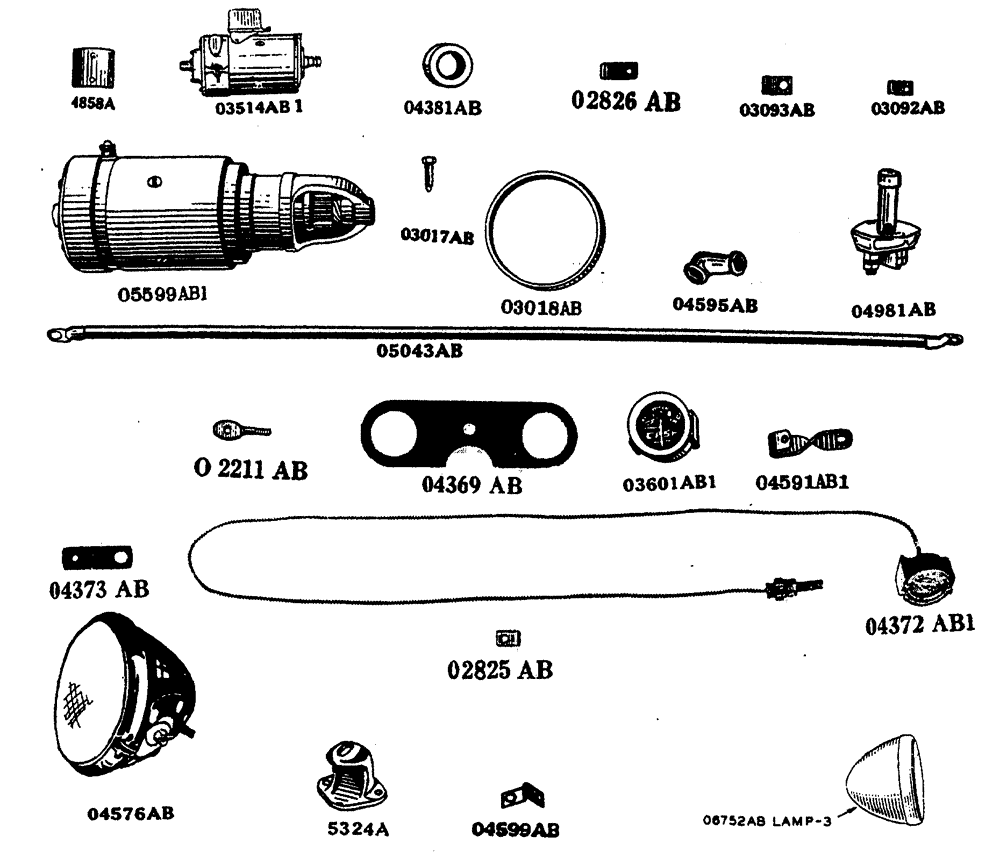

Запчасти Case IH L-SERIES (027) - ELECTRIC LIGHTING AND STARTING PARTS (TRACTOR NO. 4206422 AND AFTER) (04) - ELECTRICAL SYSTEMS

a4857a

A4857A

BRACKET generator, use 2052AA

1шт.

4858a

4858A

SLEEVE filler, generator bracket, Start Year: 01-JAN-38

1шт.

02826ab

O2826AB

CLIP generator wire, on cylinder block, Start Year: 01-JAN-38

1шт.

03001ab

O3001AB

WIRE ammeter to light switch, Start Year: 01-JAN-38

1шт.

03039ab

O3039AB

WIRE, Start Year: 01-JAN-38, Serial Range: ammeter-battery

1шт.

03514ab1

O3514AB1

GENERATOR two charge voltage control, purchased for Electric Auto-Lite Co., Toledo, Ohio, their no. GAG-4145-2, Start Year: 01-JAN-38

1шт.

For service or parts on Electric Auto-Lite generator, consult nearest Auto-Lite service station

1шт.

03601ab1

O3601AB1

X

AMMETER generator, Start Year: 01-JAN-38

1шт.

04381ab

O4381AB

SEAL oil, generator and magneto bracket, Start Year: 01-JAN-38

1шт.

04666ab

O4666AB

WIRE generator, Start Year: 01-JAN-38

1шт.

05598ab

O5598AB

WIRE ammeter to starting switch, Start Year: 01-JAN-38

1шт.

a938aa

A938AA

BRACKET generator and magneto, use B938AA

1шт.

b938aa

B938AA

BRACKET generator and magneto, with O4381AB oil seal, Start Year: 01-JAN-38

1шт.

SCREW 5/16" x - 1/4" hexagon head cap, N.C. thread

2шт.

WASHER 5/16" standard lock

2шт.

2052aa

2052AA

BRACKET generator, with O4381AB oil seal, see B938AA, Start Year: 01-JAN-38

1шт.

03017ab

O3017AB

SCREW starting motor, Start Year: 01-JAN-38

1шт.

NUT 5/8" hexagon, jam, N.C. thread

1шт.

03018ab

O3018AB

GASKET cork, Start Year: 01-JAN-38

1шт.

03092ab

O3092AB

CLIP starting cable to battery box, Start Year: 01-JAN-38

1шт.

03093ab

O3093AB

CLIP starting cable to cylinder block, Start Year: 01-JAN-38

1шт.

04595ab

A21753

CAP

NIPPLE starting cable terminal, Start Year: 01-JAN-38

1шт.

04981ab

131332C2

IGNITION SWITCH

SWITCH starting, Start Year: 01-JAN-38

1шт.

BOLT 1/4" x 3/4" round head stove, N.C. thread

2шт.

WASHER 1/4" standard lock

2шт.

05043ab

O5043AB

CABLE starting switch to starting motor, Start Year: 01-JAN-38

1шт.

05597ab

O5597AB

CABLE starting, Start Year: 01-JAN-38, Serial Range: switch-battery

1шт.

05598ab

O5598AB

WIRE starting, Start Year: 01-JAN-38, Serial Range: switch-ammeter

1шт.

05599ab1

O5599AB1

MOTOR starting, purchased from Electric Auto-Lite Co., Toledo, Ohio, their no. ML-4216, Start Year: 01-JAN-38

1шт.

BATTERY storage, 19 plate, 6 volt, exide no. X194, not furnished by J. I. Case Co., Start Year: 01-JAN-38

1шт.

02211ab

O2211AB

BOLT battery box, Start Year: 01-JAN-38

2шт.

NUT 5/16" hexagon, N.C. thread

2шт.

WASHER 5/16" standard lock

2шт.

02457ab

O2457AB

CLIP wire at battery box, Start Year: 01-JAN-38

1шт.

03034ab

O3034AB

CABLE ground, Start Year: 01-JAN-38

1шт.

03039ab

O3039AB

WIRE, Start Year: 01-JAN-38, Serial Range: ammeter-battery

1шт.

03079ab

O3079AB

BRACKET battery box, front, Start Year: 01-JAN-38

1шт.

BOLT 5/16" x 3/4" machine, with square nut

3шт.

WASHER 5/16" standard lock

3шт.

03092ab

O3092AB

CLIP starting cable to battery box, Start Year: 01-JAN-38

1шт.

05597ab

O5597AB

CABLE battery box to starting switch, Start Year: 01-JAN-38

1шт.

753aa

753AA

BOX battery, Start Year: 01-JAN-38

1шт.

BOLT 3/8" x 3/4" machine, with square nut, N.C. thread

4шт.

BOLT 3/8" x 8" carriage, with sqaure nut, N.C. thread

2шт.

WASHER 3/8" standard lock

6шт.

WASHER 3/8" standard plain

2шт.

a775aa

A775AA

COVER battery box, Start Year: 01-JAN-38

1шт.

BOLT 1/4" x 1" carriage, with square nut

2шт.

WASHER 1/4" standard lock

2шт.

2314aa

2314AA

BRACKET battery box and starting switch, Start Year: 01-JAN-38

1шт.

BOLT 5/16" x 3/4" machine, with square nut

1шт.

BOLT 5/16" x 1" machine, with square nut

2шт.

WASHER 5/16" standard lock

1шт.

02825ab

A26673

CLIP

temperature gauge, tractor no. 4202548 and after, Start Year: 01-JAN-38

3шт.

BOLT 1/4" x 1/2" round head stove, N.C. thread

3шт.

WASHER 1/4" standard lock

3шт.

03001ab

O3001AB

WIRE ammeter to light switch, Start Year: 01-JAN-38

1шт.

03083ab

O3083AB

PANEL instrument, used only with electric lighting and starting attachment, see 04369AB, Start Year: 01-JAN-38

1шт.

BOLT 1/4" x 1/2" round head stove, N.C. thread

2шт.

WASHER 1/4" standard lock

2шт.

03601ab1

O3601AB1

X

AMMETER, Start Year: 01-JAN-38

1шт.

03988ab

O3988AB

SWITCH light, Start Year: 01-JAN-38

1шт.

BOLT 3/16" x 1/2" flat head stove, N.C. thread

3шт.

WASHER no. 10 standard lock

3шт.

04369ab

O4369AB

PANEL instrument, for oil and temperature gauge, regular tractor no. 4202548 and after, see O3083AB, Start Year: 01-JAN-38

1шт.

04372ab1

O4372AB1

GAUGE

temperature, tractor no. 4202548 and after, Start Year: 01-JAN-38

1шт.

04373ab

O4373AB

BRACKET temperature gauge tube, tractor no. 4202548 and after, Start Year: 01-JAN-38

1шт.

04590ab

O4590AB

STOP flexible choke control, tractor no. 4210939 and after, Start Year: 01-JAN-38

1шт.

04591ab1

O4591AB1

CLIP flexible choke control, tractor no. 4400000 and after, see O4662AB, Start Year: 01-JAN-40

1шт.

BOLT 3/16" x 3/4" round head stove, N.C. thread

1шт.

WASHER 3/16" standard lock

1шт.

04660ab

O4660AB

BRACKET flexible choke control, tractor no. 4210939 and after, Start Year: 01-JAN-38

1шт.

BOLT 1/4" x 1/2" machine with square nut

1шт.

WASHER 1/4" standard lock

1шт.

04662ab

O4662AB

CLIP flexible choke control, tractor no. 4210939 to tractor no. 4400000, see O4591AB1, Years: 01-JAN-38-01-JAN-40

1шт.

BOLT 3/16" x 3/4" round head stove, N.C. thread

1шт.

WASHER 3/16" standard lock

1шт.

04668ab

O4668AB

ROD flexible choke control, tractor no. 4210939 and after, Start Year: 01-JAN-38

1шт.

04807ab

O4807AB

SWIVEL flexible choke control, tractor no. 4210939 and after, only for tractors with 01709AB2 carburetors, Start Year: 01-JAN-38

1шт.

04981ab

131332C2

IGNITION SWITCH

SWITCH starting, Start Year: 01-JAN-38

1шт.

BOLT 1/4" x 3/4" round head stove, N.C. thread

2шт.

WASHER 1/4" standard lock

2шт.

05598ab

O5598AB

WIRE ammeter to starting switch, Start Year: 01-JAN-38

1шт.

05636ab

O5636AB

LOOM flexible choke control, tractor no. 4400000 and after, Start Year: 01-JAN-40

1шт.

5324a

5324A

BRACKET head lamps, Start Year: 01-JAN-38

2шт.

BOLT 5/16" x 1" machine, with square nut

4шт.

WASHER 5/16" standard lock

4шт.

02547ab

O2547AB

CLIP head lamp, at battery box, Start Year: 01-JAN-38

1шт.

02825ab

A26673

CLIP

head lamp, Start Year: 01-JAN-38

8шт.

BOLT 1/4" x 1/2" round head stove, N.C. thread

8шт.

WASHER 1/4" standard lock

8шт.

04576ab

O4576AB

LAMP head, use O6752AB

1шт.

04599ab

O4599AB

CLIP head lamp, used on fender angle, Start Year: 01-JAN-38

1шт.

04658ab

O4658AB

REINFORCEMENT head lamp bracket, Start Year: 01-JAN-38

2шт.

BOLT 5/16" x 2" machine, N.C. thread

4шт.

WASHER 5/16" lock

4шт.

04663ab

O4663AB

WIRE switch to R.H. head lamp, Start Year: 01-JAN-38

1шт.

04664ab

O4664AB

WIRE switch to L.H. head lamp, Start Year: 01-JAN-38

1шт.

06752ab

O6752AB

LAMP head, Start Year: 01-JAN-38

2шт.

103321

492-11038

LOCK WASHER,3/8"

for O4596AB head lamp 3/8"

1шт.

103643

NLS

NO LONGER SERVICED

BULB 32 C.P. single contact, 6 - 8 volt, for O4596AB head lamp

1шт.

117108

117108

SCREW moulding, for O4596AB head lamp

1шт.

120377

425-106

NUT,3/8"-16, Cl 5

Mounting, for O4596AB head lamp 3/8"-16, G5

1шт.

914255

914255

SPRING lens retaining, for O4596AB head lamp

2шт.

914484

914484

MOULDING ASSEMBLY, for O4596AB head lamp

1шт.

914498

914498

WASHER bearing, for O4596AB head lamp

1шт.

914922

914922

LENS head lamp, for O4596AB

1шт.

915140

915140

NOZZLE

WIRING ASSEMBLY for O4596AB head lamp

1шт.

919238

919238

PIPE

GASKET lens and reflector, for O4596AB head lamp

1шт.

920377

920377

REFLECTOR ASSEMBLY for O4596AB head lamp

1шт.
