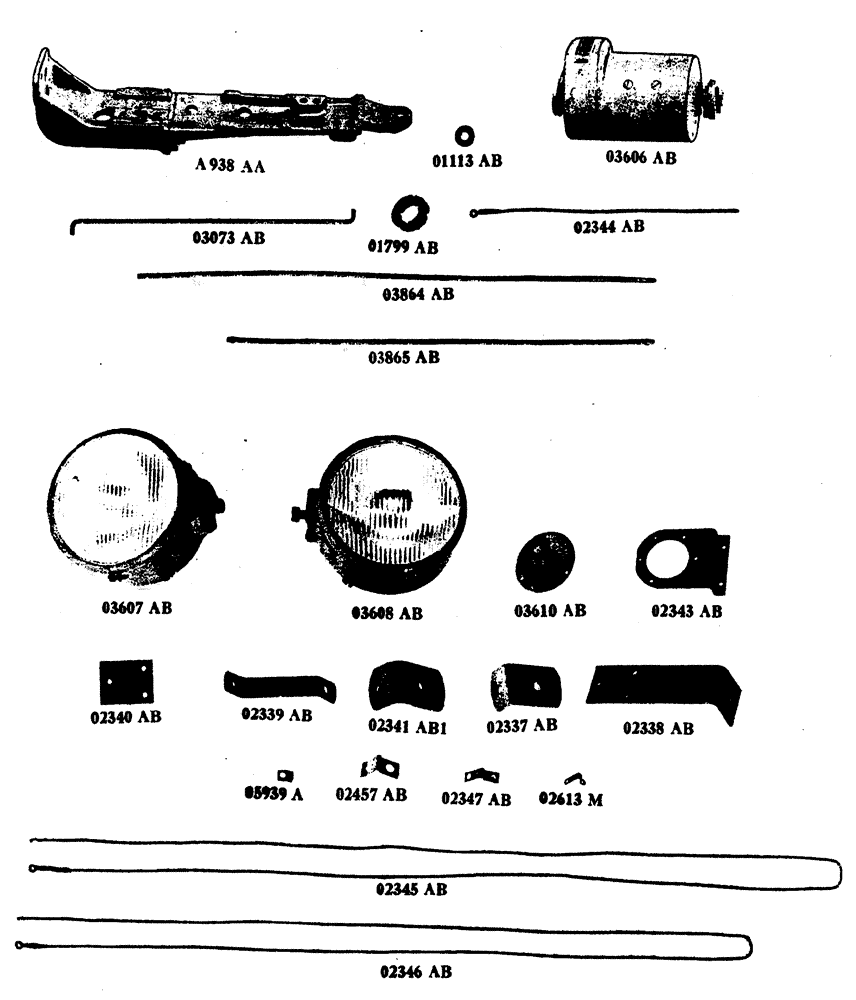

Запчасти Case IH L-SERIES (026) - ELECTRIC LIGHTING PARTS (PRIOR TO TRACTOR NO. 4206422) (04) - ELECTRICAL SYSTEMS

4844a

4844A

BRACKET magneto, use A4844A, elec. lighting w/ Bosch no. batt. generator, Serial Range: prior-4206422

1шт.

a4844a

A4844A

BRACKET magneto, see B938AA, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

a4857a

A4857A

BRACKET magneto, use 2052AA, elec. lighting w/ Bosch no. batt. generator, Serial Range: prior-4206422

1шт.

05939a

O5939A

CLIP cable, head lamp wire, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

2шт.

01113ab

O1113AB

WASHER magneto and generator brace, elec. lighting w/ Bosch no. batt., Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

2шт.

01799ab

A26596

SPARE PART

PIECE center, magneto coupling, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

02337ab

O2337AB

BRACKET upper piece for R.H. head lamp, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

BOLT 1/2" x 1 - 1/4" machine, with hexagon nut, N.C. thread, elec. lighting w/ Bosch no. batt. generator, Serial Range: prior-4206422

1шт.

80700

95-21056

WASHER,1/2"

LOCK, , elec. lighting w/ Bosch no. batt. generator, prior to 4206422 1/2"

1шт.

02338ab

O2338AB

BRACKET lower piece for R.H. head lamp, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

BOLT 5/16" x 7/8" machine, with square nut, N.C. thread, elec. lighting w/ Bosch no. batt. generator, Serial Range: prior-4206422

3шт.

80681

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Elec. lighting w/ Bosch no. batt. generator, prior to 4206422 5/16"

3шт.

02339ab

O2339AB

BRACE head lamp bracket, R.H., elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

BOLT 5/16" x 3/4" machine, with square nut, N.C. thread, elec. lighting w/ Bosch no. batt. generator, Serial Range: prior-4206422

1шт.

80681

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Elec. lighting w/ Bosch no. batt. generator, prior to 4206422 5/16"

1шт.

02340ab

O2340AB

SPACER head lamp bracket, R.H., elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

02341ab1

O2341AB1

BRACKET head lamp, L.H., elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

SCREW 1/2" x 1 - 1/2" hexagon head cap, N.C. thread, elec. lighting w/ Bosch no. batt. generator, Serial Range: prior-4206422

1шт.

02343ab

O2343AB

BRACKET head lamp switch, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

02344ab

O2344AB

WIRE generator, with terminal, elec. lighting w/ Bosch no. batt., Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

2шт.

02345ab

O2345AB

WIRE rear lamp, with connector and terminal, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

02346ab

O2346AB

WIRE front lamp, with connector, terminal and terminal sleeve, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

02347ab

O2347AB

CLIP cable, head lamp wire, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

02457ab

O2457AB

CLIP head lamp wire, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

02986ab

O2986AB

COUPLING magneto, on governor shaft, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

2шт.

SCREW 1/4" x 3/8" cup point headless set, N.C. thread, elec. lighting w/ Bosch no. batt. generator, Serial Range: prior-4206422

2шт.

03073ab

O3073AB

ROD spark, front, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

PIN 3/32" x 1/2" cotter, elec. lighting w/ Bosch no. batt. generator, Serial Range: prior-4206422

2шт.

03082ab

O3082AB

BRACE magneto bracket, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

NUT 1/2" hexagon, N.C. thread, elec. lighting w/ Bosch no. batt. generator, Serial Range: prior-4206422

2шт.

80679

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Elec. lighting w/ Bosch no. batt. generator, prior to 4206422 1/2"

2шт.

03606ab

O3606AB

GENERATOR Bosch no. battery, type K 50/6-500, elec. lighting, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

For service or parts on this generator, consult nearest American Bosch service station

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread, elec. lighting w/ Bosch no. batt. generator, Serial Range: prior-4206422

1шт.

80679

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Elec. lighting w/ Bosch no. batt. generator, prior to 4206422 1/2"

1шт.

03607ab

O3607AB

LAMP head, R.H., type 736B, black body with chrome door, 21 candle pwer bulb, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

03608ab

O3608AB

LAMP head, L.H., type 736A black body with chrome door, 21 candle power bulb, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

03610ab

O3610AB

SWITCH light, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

03610ab

O3610AB

BOLT 3/16" x 1/2" flat head stove, N.C. thread, elec. lighting w/ Bosch no. batt. generator, Serial Range: prior-4206422

3шт.

WASHER 3/16" standard lock, elec. lighting w/ Bosch no. batt. generator, Serial Range: prior-4206422

3шт.

03864ab

O3864AB

WIRE magneto to no. 1 and no. 4 spark plug, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

2шт.

03865ab

O3865AB

WIRE magneto to no. 2 and no. 3 spark plug, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

2шт.

04381ab

O4381AB

SEAL oil, for A4857A generator bracket, elec. lighting w/ Bosch no. batt., Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

02613m

O2613M

CLIP cable, head lamp wire, elec. lighting w/ Bosch no. batt. generator, Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

2шт.

BOLT 3/16" x 1/2" round head stove, N.C. thread, elec. lighting w/ Bosch no. batt. generator, Serial Range: prior-4206422

2шт.

WASHER 3/16" standard lock, elec. lighting w/ Bosch no. batt. generator, Serial Range: prior-4206422

2шт.

a938aa

A938AA

BRACKET magneto and generator, sue B938AA, elec. lighting w/ Bosch no. batt., Serial Range: prior-4206422

1шт.

b938aa

B938AA

BRACKET magneto and generator, with 04381AB oil seal, elec. lighting w/ Bosch no. batt., Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

SCREW 3/8" x 1" hexagon head cap, N.C. thread, elec. lighting w/ Bosch no. batt. generator, Serial Range: prior-4206422

2шт.

SCREW 3/8" x 1 - 3/8" hexagon head cap, N.C. thread, elec. lighting w/ Bosch no. batt. generator, Serial Range: prior-4206422

2шт.

80682

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

4шт.

2052aa

2052AA

BRACKET generator, with 04381AB oil seal, see B938AA, elec. lighting w/ Bosch no. batt., Years: 01-JAN-30-01-JAN-38, Serial Range: prior-4206422

1шт.

103323

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , For O3607-8AB head lamps 1/2"

1шт.

103642

103642

GLAND,#1129, Type C-6, 6V

BULB 21 C.P. single contact, 6 - 8 volt, for O3607-8AB head lamps

1шт.

120371

704148

NUT

for O3607-8AB head lamps

1шт.

912206

912206

WASHER bearing, for O3607-8AB head lamps

1шт.

912711

912711

SCREW moulding, for O3607-8AB head lamps

1шт.

914255

914255

SPRING lens retaining, for O3607-8AB head lamps

2шт.

914525

914525

PIN

BODY assembly, L.H., for O3607-8AB head lamps

1шт.

914526

914526

BODY assembly, R.H., for O3607-8AB head lamps

1шт.

914530

914530

LENS head lamp, for O3607-8AB

1шт.

914531

914531

MOULDING assembly, for O3607-8AB head lamps

1шт.

914533

914533

REFLECTOR assembly, for O3607-8AB head lamps

1шт.

914535

914535

GASKET lens and reflector, for O3607-8AB head lamps

1шт.

914537

914537

WIRING assembly, for O3607-8AB head lamps

1шт.
