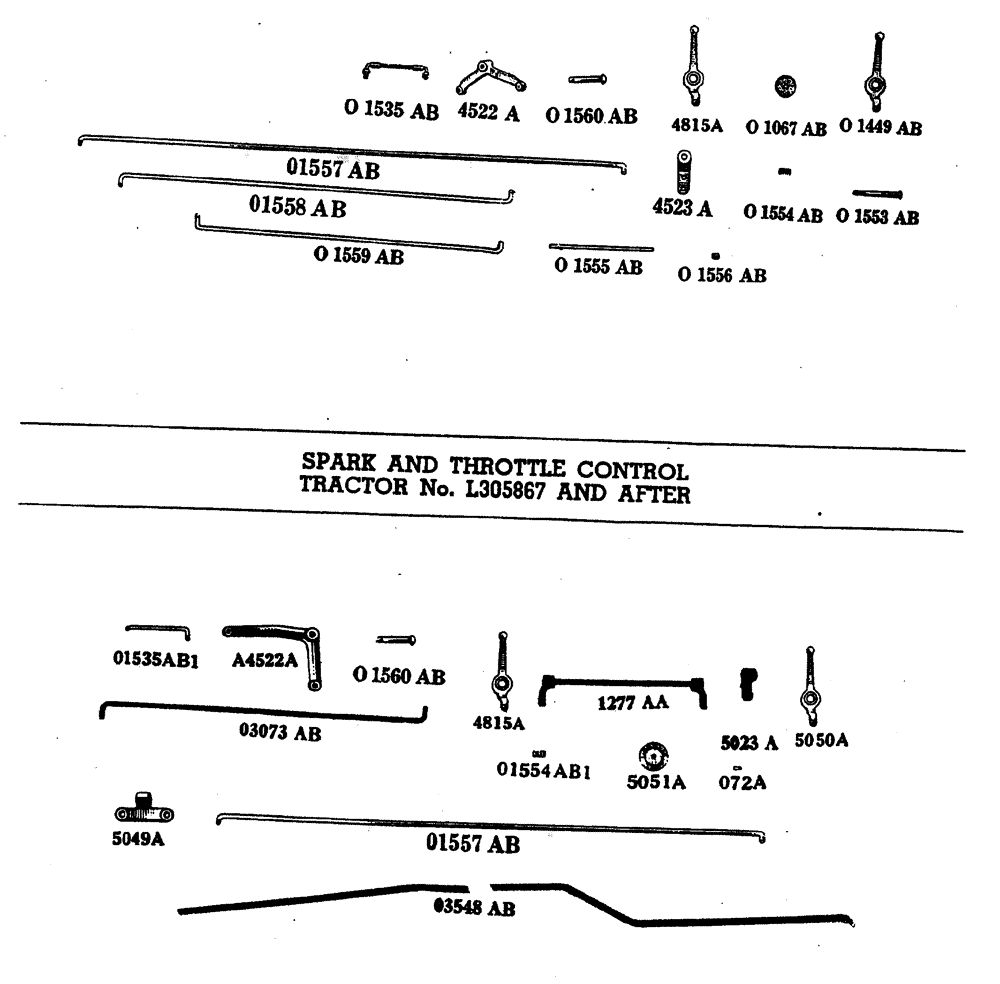

Запчасти Case IH L-SERIES (025) - SPARK AND THROTTLE CONTROL (PRIOR TO TRACTOR NO. L305867) (04) - ELECTRICAL SYSTEMS

4522a

4522A

LEVER spark, L305867 and below, Years: 01-JAN-29-01-JAN-35

1шт.

a4522a

A4522A

LEVER spark, L305866 and above, Start Year: 01-JAN-35

1шт.

4523a

4523A

LEVER throttle, L301844 and below, for kingston carburetor, Years: 01-JAN-29-01-JAN-35

1шт.

4815a

4815A

LEVER spark and throttle hand, L330496 and above to L301844 and below, for kingston carburetor, see 5050A, Years: 01-JAN-31-01-JAN-35

1шт.

4815a

4815A

LEVER spark hand, used on steering post, L300496 and above, Start Year: 01-JAN-31

1шт.

5023a

5023A

LEVER spark control, on cross shaft, use 127AA

1шт.

5049a

5049A

BRACKET throttle rod, used with zenith carburetor, L301843 and above, Start Year: 01-JAN-35

1шт.

SCREW 1/4", 20 x 1 - 1/2" round head machine, N.C. thread

2шт.

WASHER 1/4" standard plain

1шт.

5050a

5050A

LEVER throttle hand, on steering post, L301843 and above, for zenith carburetor, see 4815A, Start Year: 01-JAN-35

1шт.

BOLT 3/8" x 4 - 1/2" hexagon had machine, N.C. thread

1шт.

5051a

5051A

DISC friction, throttle hand lever, L301843 and above, for zenith carburetor, see O1068AB, Start Year: 01-JAN-35

1шт.

072a

O72A

DOWEL for 5051A disc, L301843 and above, Start Year: 01-JAN-35

1шт.

01067ab

O1067AB

DISC friction, for spark and throttle hand lever, L301844 and below, for kingston carburetor, see 5051A, Years: 01-JAN-29-01-JAN-35

1шт.

01067ab

O1067AB

DISC fricton, spark hand lever, see 5051A, Start Year: 01-JAN-35

1шт.

01449ab

O1449AB

LEVER spark and throttle hand, use 4815A, Years: 01-JAN-29-01-JAN-31

1шт.

01535ab

O1535AB

LINK magneto lever, L305867 and below, Years: 01-JAN-29-01-JAN-35

1шт.

PIN 1/16" x 3/8" cotter

2шт.

01535ab1

O1535AB1

LINK magneto lever, L305866 and above, Start Year: 01-JAN-35

1шт.

PIN 1/16" x 3/8" cotter

2шт.

01553ab

O1553AB

BOLT spark and throttle hand lever, L301844 and below, Years: 01-JAN-29-01-JAN-35

1шт.

NUT 3/8" hexagon, castle, N.F. thread

1шт.

PIN 3/32" x 7/8" cotter

1шт.

BOLT 3/8" x 4 - 1/2" hex. head machine bolt, N.C. threaded w/ double nuts for spark and throttle hand lever, L301843 and above, see 01553AB, Start Year: 01-JAN-35

1шт.

01554ab

A26546

SPRING

spark and throttle hand lever, L301844 and below, Years: 01-JAN-29-01-JAN-35

1шт.

01554ab1

A26546

SPRING

throttle hand lever, L301843 and above, Start Year: 01-JAN-35

1шт.

01555ab

O1555AB

SHAFT throttle cross, L301844 and below, for kingston carburetor, Years: 01-JAN-29-01-JAN-35

1шт.

PIN 3/32" x 1/2" cotter

2шт.

01556ab

O1556AB

SPACER throttle cross shaft, Start Year: 01-JAN-29

1шт.

01557ab

O1557AB

ROD spark and throttle, rear, Start Year: 01-JAN-29

2шт.

PIN 3/32" x 1/2" cotter

2шт.

01558ab

O1558AB

ROD spark, front, see O3073AB, Start Year: 01-JAN-29

1шт.

PIN 3/32" x 1/2" cotter

2шт.

01559ab

O1559AB

ROD front, throttle, L301844 and below, for kingston carburetor, see O3548AB, Years: 01-JAN-29-01-JAN-35

1шт.

PIN 3/32" x 1/2" cotter

2шт.

01560ab

O1560AB

PIN spark lever, Start Year: 01-JAN-29

1шт.

PIN 3/32" x 1/2" cotter

1шт.

03073ab

O3073AB

ROD spark, front, used with electric lighting and starting attachment, see O1558AB, Start Year: 01-JAN-30

1шт.

PIN 3/32" x 1/2" cotter

2шт.

03548ab

O3548AB

ROD throttle, used with zenith carburetor, L301843 and above, see O1559AB, Start Year: 01-JAN-35

1шт.

NUT 3/8" hexagon, N.C. thread

1шт.

PIN 1/8" x 3/4" cotter

1шт.

PIN no. 0 x 3/4" taper

2шт.

1277aa

1277AA

SHAFT spark control cross, with levers, L301843 and above, Start Year: 01-JAN-35

1шт.

PIN no. 0 x 3/4" cotter

2шт.
