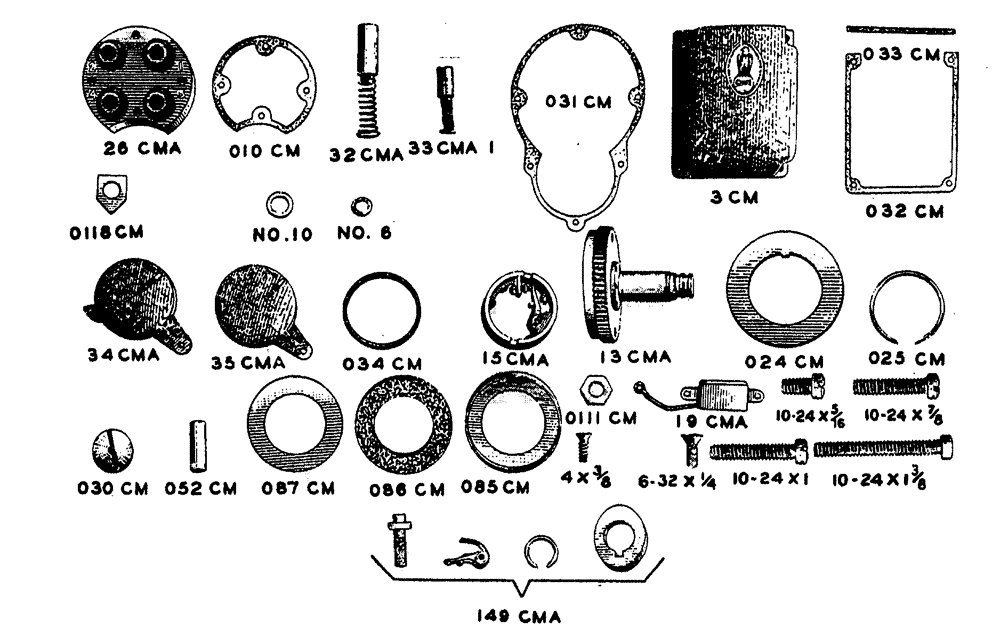

Запчасти Case IH L-SERIES (024) - PARTS FOR 4-CMA "CASE" MAGNETO (ORDER FROM AUTHORIZED "CASE" MAGNETO DISTRIBUTOR OR SERVICE STATION) (04) - ELECTRICAL SYSTEMS

3cm

3CM

COVER top

1шт.

010cm

O10CM

GASKET distributor block

1шт.

024cm

O24CM

WASHER distributor shaft thrust

1шт.

025cm

O25CM

RING snap, distributor shaft

1шт.

030cm

O30CM

PLUG distributor bearing well screw

2шт.

031cm

O31CM

GASKET magneto, frame end cap

1шт.

032cm

O32CM

GASKET frame top cover shelf

1шт.

033cm

O33CM

GASKET frame top cover strip

1шт.

034cm

O34CM

RING cork, breaker box cover

1шт.

052cm

O52CM

PIN fulcrum

1шт.

c85cm

C85CM

RING coupling, cupped

1шт.

086cm

O86CM

RING coupling felt

1шт.

087cm

O87CM

WASHER flat coupling felt ring

1шт.

0111cm

O111CM

NUT coil primary

1шт.

0118cm

O118CM

POINTER timing

1шт.

13cma

13CMA

GEAR distributor, shaft and disc

1шт.

15cma

15CMA

BOX breaker, assembly

1шт.

19cma

19CMA

CONDENSOR assembly

1шт.

26cma

26CMA

BLOCK distributor

1шт.

32cma

32CMA

BRUSH AND SPRING distributor block

4шт.

33cma-1

33CMA-1

BRUSH AND SPRING distributor disc

1шт.

34cma

34CMA

COVER breaker box, wth compression spring for 20 degree

1шт.

35cma

35CMA

COVER breaker box, with compression spring for 30 degree

1шт.

36cma

36CMA

WIRE shunt

1шт.

149cma

149CMA

CONTACT

KIT point, contains cam, cam ring, breaker bar assembly, stationary contact screw point, nut and wrench with .018" gap gauge, breaker bar spring screw, spacing and lock washers and complete directions for installing

1шт.

WASHER no. 6 standard lock

1шт.

WASHER no. 10 standard lock

1шт.

SCREW no. 10, 24 x 5/16" fillister head, for condensor

1шт.

SCREW no. 10, 24 x 7/8" fillister head, for end cap and top cover

1шт.

SCREW no. 10, 24 x 1" fillister head, for distributor block

1шт.

SCREW no. 10, 24 x 1 - 3/8" fillister head, for top cover

1шт.

SCREW no. 6, 32 x 1/4" fillister head, for shunt wire

1шт.

SCREW no. 4 x 3/8" flat head Parker-Kalon, for coupling cupped washer

1шт.
