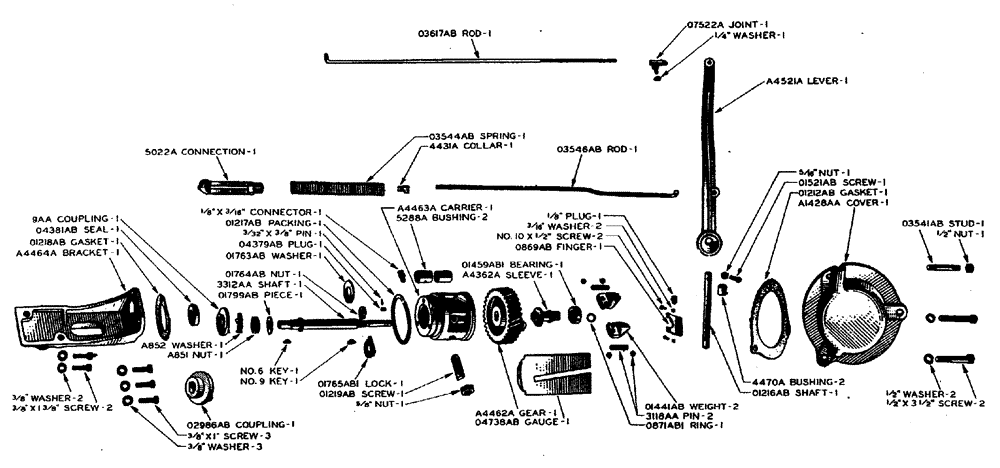

Запчасти Case IH L-SERIES (022) - GOVERNOR (TRACTOR NO. L301844 AND AFTER) (03) - FUEL SYSTEM

4362a

4362A

SLEEVE governor, use A4362A

1шт.

a4362a

A28576

SLEEVE

governor, Start Year: 01-JAN-29

1шт.

4431a

4431A

COLLAR governor rod spring, used with O1709AB2 zenith carburetor, tractor no. L301844 to no. 4210939, Years: 01-JAN-35-01-JAN-38

1шт.

SCREW 1/4" x 3/4" cup point set, N.C. thread, governor

1шт.

NUT 1/4" hexagon, N.C. thread, governor

1шт.

4461a

4461A

COVER governor housing, use 1428AA

1шт.

a4461a

A4461A

COVER governor housing, use A1428AA

1шт.

4462a

4462A

GEAR governor, prior to tractor no. 4202249, Years: 01-JAN-29-01-JAN-38

1шт.

KEY no. 6, woodruff, governor

1шт.

a4462a

A4462A

GEAR governor, tractor no. 202249 and after, Start Year: 01-JAN-38

1шт.

KEY no. 9, woodruff, governor

1шт.

4463a

4463A

CARRIER governor bearing, prior to tractor no. 4202249, Years: 01-JAN-29-01-JAN-38

1шт.

a4463a

A4463A

CARRIER governor bearing, tractor no. 4202249 and after, Start Year: 01-JAN-38

1шт.

CONNECTOR 1/8" pipe thread x 3/16" tube size, dole A3 male, with compression screw, governor

1шт.

PIN 3/32" x 3/8" type 1 taper groove, governor

1шт.

4470a

4470A

governor housing cover, Start Year: 01-JAN-29

2шт.

4521a

4521A

LEVER governor, L301844 and below, Years: 01-JAN-29-01-JAN-35

1шт.

a4521a

A4521A

LEVER governor, L301843 and above, Start Year: 01-JAN-35

1шт.

5022a

5022A

CONNECTION governor spring, L301843 and above, Start Year: 01-JAN-35

1шт.

5288a

5288A

BUSHING governor bearing carrier, tractor no. 4202249 and after, Start Year: 01-JAN-38

1шт.

07522a

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT governor lever security ball, Start Year: 01-JAN-29

1шт.

WASHER 1/4" standard lock, governor

1шт.

0869ab

O869AB

FINGER governor, Start Year: 01-JAN-29

1шт.

SCREW no. 10 x 1/2" round head machine, N.F. thread, governor

2шт.

WASHER 3/16" standard lock, governor

2шт.

0871ab

O871AB

RING snap, governor bearing, prior to tractor no. 4202249, Years: 01-JAN-29-01-JAN-38

1шт.

0871ab1

O871AB1

RING snap, governor bearing, tractor no. 4202249 and after, Start Year: 01-JAN-38

1шт.

0872ab

O872AB

PIN governor weight, use 3118AA

1шт.

01193ab

O1193AB

X

NUT lock, for 4463A governor bearing carrier, Years: 01-JAN-29-01-JAN-38

1шт.

01212ab

A26483

GASKET

governor housing cover, Start Year: 01-JAN-29

1шт.

01213ab

O1213AB

SHAFT governor, prior to tractor no. 4202249, see 3312AA, Years: 01-JAN-29-01-JAN-38

1шт.

KEY no. 11, woodruff, governor

1шт.

NUT 3/4" hexagon jam, N.C. thread, governor

1шт.

01215ab

O1215AB

WASHER lock, for 01213AB shaft, prior to tractor no. 4202249, governor, Years: 01-JAN-29-01-JAN-38

1шт.

01216ab

O1216AB

SHAFT governor lever, Start Year: 01-JAN-29

1шт.

01217ab

O1217AB

PACKING governor bearing carrier, Start Year: 01-JAN-29

1шт.

01218ab

O1218AB

GASKET governor bearing carrier, Start Year: 01-JAN-29

1шт.

01219ab

O1219AB

SCREW governor bearing carrier, Start Year: 01-JAN-29

1шт.

NUT 5/8" hexagon, jam, N.C. thread, governor

1шт.

01441ab

A26531

WEIGHT

governor, Start Year: 01-JAN-29

2шт.

01459ab

A26534

THRUST BEARING,0.747" ID x 40552" OD x 0.5625"

BEARING thrust, governor shaft, use O1459AB1

1шт.

01459ab1

A26534

THRUST BEARING,0.747" ID x 40552" OD x 0.5625"

BEARING thrust, governor shaft, nice no. 1005, Start Year: 01-JAN-29

1шт.

01515ab

O1515AB

STUD adjusting screw, governor lever, L301844 and below, Years: 01-JAN-29-01-JAN-38

1шт.

NUT 3/8" hexagon, jam, N.C. thread, governor

1шт.

01516ab

O1516AB

SCREW adjusting, governor lever, L301844 and below, Years: 01-JAN-29-01-JAN-38

1шт.

NUT 38" hexagon, N.C. thread, governor

1шт.

01521ab

O1521AB

SCREW set, governor lever, Start Year: 01-JAN-29

1шт.

NUT 5/16" hexagon, jam, N.C. thread, governor

1шт.

01541ab

O1541AB

CUP for 01213AB governor shaft, timken no. 09194, prior to tractor no. 4202249, Years: 01-JAN-29-01-JAN-38

2шт.

01542ab

13823V

CONE

for 01213AB governor shaft, timken no. 09074, prior to tractor no. 4202249, Years: 01-JAN-29-01-JAN-38

2шт.

01578ab

O1578AB

ROD governor lever to throttle valve, L301844 and below, used with kingston carburetor, see O3619AB, Years: 01-JAN-29-01-JAN-38

1шт.

01763ab

O1763AB

WASHER thrust, governor gear, tractor no. 4202249 and after, Start Year: 01-JAN-38

1шт.

01764ab

O1764AB

NUT governor shaft, tractor no. 422049 and after, Start Year: 01-JAN-38

1шт.

01765ab

O1765AB

NUT lock, governor shaft, use O1765AB1

1шт.

01765ab1

O1765AB1

NUT lock, governor shaft, Start Year: 01-JAN-29

1шт.

01847ab

O1847AB

SPRING governor L301844 and below, see O3544AB, Years: 01-JAN-29-01-JAN-35

1шт.

02819ab

O2819AB

CONNECTION governor oiling, screws into 4459A timing gear, tractor no. L300400 to no. 4202249, Years: 01-JAN-31-01-JAN-38

1шт.

02820ab

O2820AB

TUBE tee to governor, prior to tractor 4202249, see O2820AB2, Years: 01-JAN-29-01-JAN-38

1шт.

02820ab1

O2820AB1

TUBE tee to governor, use O2820AB2

1шт.

02820ab2

O2820AB2

TUBE tee to governor, tractor no. 4202249 and after, Start Year: 01-JAN-38

1шт.

02825ab

A26673

CLIP

tee to governor tube, Start Year: 01-JAN-29

3шт.

BOLT 1/4" x 1/2" round head stove, N.C. thread, governor

3шт.

WASHER 1/4" standard lock, governor

3шт.

03541ab

O3541AB

STUD governor housing cover, L301843 and above, Start Year: 01-JAN-35

1шт.

NUT 1/2" hexagon, N.C. thread, governor

1шт.

03544ab

O3544AB

SPRING governor rod, L301843 and above, see O1847AB, Start Year: 01-JAN-35

1шт.

03546ab

O3546AB

ROD governor spring, L301843 and above, Start Year: 01-JAN-35

1шт.

PIN 3/32" x 5/8" cotter, governor

1шт.

03617ab

O3617AB

ROD governor lever to zenith carburetor, L301843 and above, see O1578AB, Start Year: 01-JAN-35

1шт.

04378ab

O4378AB

RING snap, governor weight pin, Start Year: 01-JAN-29

4шт.

04379ab

O4379AB

PLUG for 3312AA governor shaft, tractor no. 4202249 and after, Start Year: 01-JAN-38

1шт.

140aa

140AA

GOVERNOR assembly, prior to tractor no. 4202249, consists of;, Years: 01-JAN-29-01-JAN-38

1шт.

a4362a

A28576

SLEEVE

governor

1шт.

4462a

4462A

governor

1шт.

4463a

4463A

governor

1шт.

0871ab

O871AB

governor

1шт.

0871ab

O871AB

governor

2шт.

01213ab

O1213AB

governor

1шт.

01215ab

O1215AB

governor

1шт.

01441ab

A26531

WEIGHT

governor

2шт.

01459ab1

A26534

THRUST BEARING,0.747" ID x 40552" OD x 0.5625"

governor

1шт.

01541ab

O1541AB

governor

2шт.

01542ab

13823V

CONE

governor

2шт.

a140aa

A140AA

GOVERNOR assembly, tractor no. 4202249 and after, consists of;, Start Year: 01-JAN-38

1шт.

a4362a

A28576

SLEEVE

governor

1шт.

a4462a

A4462A

governor

1шт.

a4463a

A4463A

governor

1шт.

5288a

5288A

governor

2шт.

0871ab1

O871AB1

governor

1шт.

01441ab

A26531

WEIGHT

governor

2шт.

01459ab1

A26534

THRUST BEARING,0.747" ID x 40552" OD x 0.5625"

governor

1шт.

01763ab

O1763AB

governor

1шт.

01764ab

O1764AB

governor

1шт.

01765ab1

O1765AB1

governor

1шт.

04378ab

O4378AB

governor

4шт.

04379ab

O4379AB

governor

1шт.

3118aa

3118AA

governor

2шт.

3312aa

3312AA

X

governor

1шт.

1428aa

1428AA

COVER governor housing, with bushing, L301844 and below, used only with kingston carburetor, Years: 01-JAN-29-01-JAN-35

1шт.

SCREW 1/2" x 3 - 1/2" hexagon head cap, N.C. thread, governor

3шт.

WASHER 1/2" standard lock, governor

3шт.

PLUG 1/8" pipe, square head, governor

1шт.

a1428aa

A1428AA

COVER governor housing, with bushing, L301843 and above, used only with zenith carburetor, Start Year: 01-JAN-35

1шт.

SCREW 1/2" x 3 - 1/2" hexagon head cap, N.C. thread, governor

2шт.

WASHER 1/2" standard lock, governor

2шт.

PLUG 1/8" pipe, square head, governor

1шт.

3118aa

3118AA

PIN governor weight, with 04378AB snap rings, Start Year: 01-JAN-29

2шт.

3312aa

3312AA

X

SHAFT governor, with plug, tractor no. 4202249 and after, see O1213AB, Start Year: 01-JAN-38

1шт.

PIN 3/32" x 3/8" full length taper groove, type 1, governor

1шт.

KEY no. 6, woodruff, governor

1шт.

KEY no. 9, woodruff, governor

1шт.

4464a

4464A

BRACKET magneto, use A4464A with O4381AB oil seal

1шт.

a4464a

A4464A

BRACKET magneto, see A4644A, Start Year: 01-JAN-29

1шт.

SCREW 3/8" x 1" hexagon head cap, N.C. thread, magneto

3шт.

SCREW 3/8" x 1 - 3/8" hexagon head cap, N.C. thread, magneto

2шт.

WASHER 3/8" standard lock, magneto

5шт.

4844a

4844A

BRACKET magneto, used with electric lighting and starting attachment, use A4844A

1шт.

a4844a

A4844A

BRACKET magneto, used with electric lighting and starting attachment, see A4464A or B938AA, Start Year: 01-JAN-30

1шт.

06645a2

O6645A2

MAGNETO Robert Bosch FU-4 C225, L305867, use 4CMA-30 Case magneto, Years: 01-JAN-29-01-JAN-35

1шт.

06645a3

O6645A3

MAGNETO American Bosch MJA4-B-112 with impulse coupling ACA2-A4, tractor no. L305866 and above to no. 4208797, use 4CMA-30 Case magneto, Years: 01-JAN-35-01-JAN-38

1шт.

0874ab

O874AB

WASHER felt, magneto bracket, prior to tractor no. 4202249, see O4381AB, Years: 01-JAN-29-01-JAN-38

1шт.

0875ab

O875AB

RETAINER magneto bracket felt, prior to tractor no. 4202249, see O4381AB, Years: 01-JAN-29-01-JAN-38

1шт.

01113ab

O1113AB

WASHER for O3082AB brace, magneto, Start Year: 01-JAN-30

2шт.

01799ab

A26596

SPARE PART

PIECE magneto coupling center, Start Year: 01-JAN-29

1шт.

02986ab

O2986AB

COUPLING magneto, on governor shaft, used with electrical lighting and starting attachment, see 9AA, Start Year: 01-JAN-30

2шт.

SCREW 1/4" x 3/8" cup point headless set, N.C. thread, magneto

2шт.

03082ab

O3082AB

BRACE magneto bracket, used with electrical lighting and starting attachment, Start Year: 01-JAN-30

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread, magneto

1шт.

NUT 1/2" hexagon, N.C. thread, magneto

2шт.

04381ab

O4381AB

SEAL oil, magneto bracket, tractor no. 4202249 and after, see O874AB and O875AB, Start Year: 01-JAN-38

1шт.

04738ab

O4738AB

GUAGE timing and assembling, for 4CMA-30 "Case" magneto, Start Year: 01-JAN-38

1шт.

a851

A851

NUT lock, for 9AA magneto coupling, Start Year: 01-JAN-29

1шт.

a852

A852

WASHER lock, for 9AA magneto coupling, Start Year: 01-JAN-29

1шт.

9aa

A28321

COUPLING, BREAK AWAY

COUPLING magneto, regular, see O2986AB, Start Year: 01-JAN-29

1шт.

136aa

136AA

COVER magneto, Years: 01-JAN-29-01-JAN-36

1шт.

a938aa

A938AA

BRACKET magneto and generator, use B938AA

1шт.

b938aa

B938AA

BRACKET magneto and generator, with 04381AB oil seal, used with electric lighting and starting attachment, see A4464A, Start Year: 01-JAN-30

1шт.

SCREW 3/8" x 1" hexagon head cap, N.C. thread, magneto

2шт.

SCREW 3/8" x 1 - 3/8" hexagon head cap, N.C. thread, magneto

2шт.

WASHER 3/8" standard lock, magneto

4шт.

4cma-30

4CMA-30

MAGNETO "Case", tractor no. 4208797 and after, see O6645A2 and O6645A3, Start Year: 01-JAN-38

1шт.
