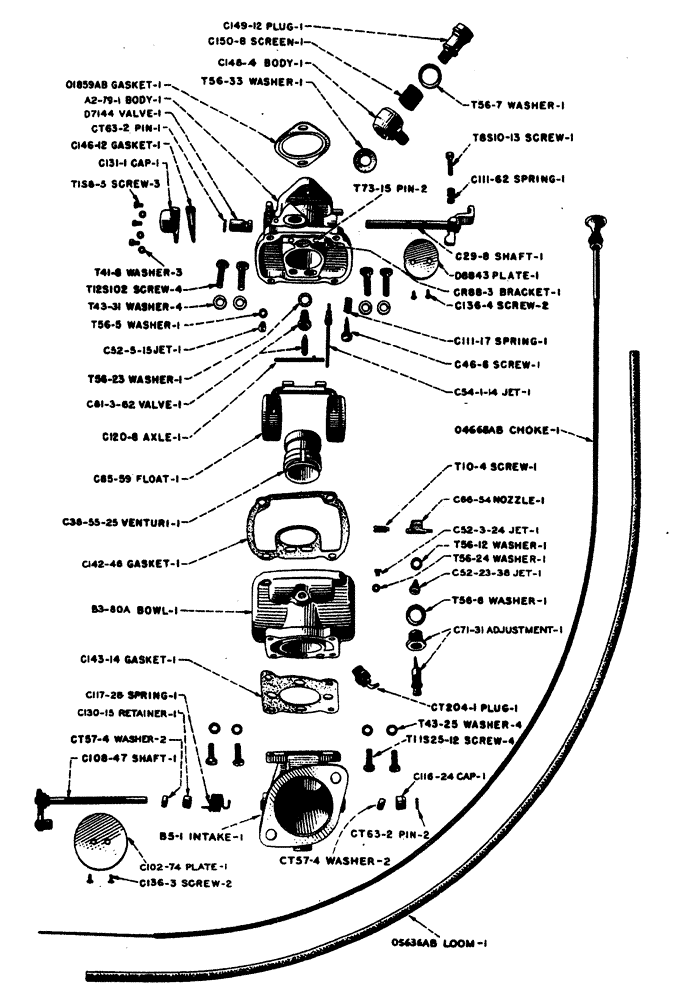

Запчасти Case IH L-SERIES (018) - O4669AB ZENITH CARBURETOR (MODEL K6A) OUTLINE NO. O8714 (03) - FUEL SYSTEM

a2-79

A2-79

BODY throttle, assembly

1шт.

a2-79-1

A2-79-1

BODY throttle, assembly, Start Year: 01-JAN-38

1шт.

b3-80a

B3-80A

BOWL fuel, Start Year: 01-JAN-38

1шт.

b5-1

B5-1

INTAKE air, assembly, Start Year: 01-JAN-38

1шт.

c29-8

C29-8

SHAFT AND LEVER throttle, Start Year: 01-JAN-38

1шт.

c38-55-25

C38-55-25

VENTURI, Start Year: 01-JAN-38

1шт.

c46-6

C46-6

SCREW idle adjusting, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

1шт.

c52-3-24

C52-3-24

JET compensating, for gasoline and low cost fuel, included in K622 or K623 service parts kit, Start Year: 01-JAN-38

1шт.

c52-3-30

C52-3-30

JET compensating, for alcohol only, Start Year: 01-JAN-38

1шт.

c52-5-15

C52-5-15

JET economizer, included in K622 or K623 service parts kit, Start Year: 01-JAN-38

1шт.

c52-23-35

C52-23-35

JET main, for gasoline and low cost fuel, included in K622 or K623 service parts kit

1шт.

c52-23-38

C52-23-38

JET main, for gasoline and low cost fuel, included in K622 or K623 service parts kit, Start Year: 01-JAN-38

1шт.

c52-23-40

C52-23-40

JET main, for alcohol only, Start Year: 01-JAN-38

1шт.

c524-1-14

C524-1-14

JET idling, included in K622 or K623 service parts kit, Start Year: 01-JAN-38

1шт.

c66-54

C66-54

NOZZLE discharge, Start Year: 01-JAN-38

1шт.

c71-31

C71-31

ADJUSTMENT main jet, consists of;, Start Year: 01-JAN-38

1шт.

c73-39

C73-39

NEEDLE adjusting

1шт.

ct50-1

CT50-1

PACKING

1шт.

c74-12

C74-12

NUT packing

1шт.

c72-19

C72-19

NUT packing, retainer

1шт.

c81-3-62

C81-3-62

VALVE fuel, assembly, included in K622 or K623 service parts list, Start Year: 01-JAN-38

1шт.

c85-59

C85-59

FLOAT assembly, Start Year: 01-JAN-38

1шт.

c102-74

C102-74

PLATE air shutter, Start Year: 01-JAN-38

1шт.

c108-13

C108-13

SHAFT AND LEVER air intake shutter

1шт.

c108-47

C108-47

SHAFT AND LEVER air intake shutter, Start Year: 01-JAN-38

1шт.

c111-17

C111-17

SPRING idle adjusting screw, Start Year: 01-JAN-38

1шт.

c111-62

C111-62

SPRING throttle lever stop screw, Start Year: 01-JAN-38

1шт.

c116-24

C116-24

CAP packing, Start Year: 01-JAN-38

1шт.

c117-29

C117-29

SPRING air shutter return, included in K622 or K623 service parts kit, Start Year: 01-JAN-38

1шт.

c120-8

C120-8

AXLE float, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

1шт.

c130-15

C130-15

RETAINER air shutter shaft packing, Start Year: 01-JAN-38

1шт.

c131-1

C131-1

CAP economizer valve, Start Year: 01-JAN-38

1шт.

c136-3

C136-3

SCREW air shutter, Start Year: 01-JAN-38

2шт.

SCREW choke rod and throttle plate, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

4шт.

PLUG nozzle screw seal, Start Year: 01-JAN-38

1шт.

c138-54

C138-54

PLUG drip, assembly

1шт.

c141-4-2

C141-4-2

GASKET flange, use 01859AB, included in K622 or K623 service parts kit

1шт.

c142-46

C142-46

GASKET bowl to body, included in K622 or K623 service parts kit, Start Year: 01-JAN-38

1шт.

c143-14

C143-14

GASKET bowl to air intake assembly, included in K622 or K623 service parts kit, Start Year: 01-JAN-38

1шт.

c146-12

C146-12

GASKET economizer cap, included in K622 or K623 service parts kit, Start Year: 01-JAN-38

1шт.

c148-4

C148-4

BODY union, Start Year: 01-JAN-38

1шт.

c149-12

C149-12

PLUG filter or union body, Start Year: 01-JAN-38

1шт.

c150-8

C150-8

SCREEN filter, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

1шт.

cr9-16

CR9-16

BUSHING throttle shaft, Start Year: 01-JAN-38

1шт.

cr78-7

CR78-7

PLUG priming hole

1шт.

cr88-3

CR88-3

BRACKET float, Start Year: 01-JAN-38

1шт.

ct57-4

CT57-4

WASHER packing, air shutter shaft, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

2шт.

ct57-11

CT57-11

PACKING drain, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

1шт.

ct57-21

CT57-21

PACKING drain, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

1шт.

ct63-2

CT63-2

PIN shutter and throttle shaft taper, Start Year: 01-JAN-38

2шт.

ct91-5

CT91-5

PLUG pipe

1шт.

ct93b-50

CT93B-50

PLUG drain, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

1шт.

ct93b-51

CT93B-51

PLUG drain, welch, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

1шт.

ct204-1

CT204-1

PLUG drain, assembly, for fuel bowl, Start Year: 01-JAN-38

1шт.

d7144

D7144

VALVE economizer, included in K622 or K623 service parts kit, Start Year: 01-JAN-38

1шт.

d8843

D8843

PLATE throttle, Start Year: 01-JAN-38

1шт.

t10-4

T10-4

SCREW nozzle set, Start Year: 01-JAN-38

1шт.

t41-8

T41-8

WASHER lock, economizer cap screw, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

3шт.

t43-25

T43-25

WASHER lock, intake assembly screw, Start Year: 01-JAN-38

4шт.

t43-31

T43-31

WASHER lock, bowl to body screw, Start Year: 01-JAN-38

4шт.

t43-103

T43-103

WASHER bowl to body screw

4шт.

t56-5

T56-5

WASHER fibre, economizer jet, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

1шт.

t56-6

T56-6

WASHER fibre, main jet adjustment, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

1шт.

t56-12

T56-12

WASHER fibre, filter plug, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

1шт.

t56-12

T56-12

WASHER fibre, main jet, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

1шт.

t56-23

T56-23

WASHER fibre, fuel valve seat, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

1шт.

t56-24

T56-24

WASHER fibre, compensating jet, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

1шт.

t56-33

T56-33

WASHER fibre, union body, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

1шт.

t56-36

T56-36

WASHER fibre, throttle stop, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

1шт.

t73-15

T73-15

PIN fastening float bracket, Start Year: 01-JAN-38

2шт.

t158-5

T158-5

SCREW economizer cap assembly, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

3шт.

t1s8-10

T1S8-10

SCREW housing cover, included in K622 or K623 service parts kit and included in C182-818 small parts kit, Start Year: 01-JAN-38

2шт.

t8s10-9

T8S10-9

SCREW clamp lever clamp

1шт.

t8s10-13

T8S10-13

SCREW throttle stop, Start Year: 01-JAN-38

1шт.

t11s25-12

T11S25-12

SCREW intake to bowl assembly, Start Year: 01-JAN-38

4шт.

SCREW bowl to body assembly, Start Year: 01-JAN-38

4шт.

KIT small parts, included in K622 or K623 service parts kit, Start Year: 01-JAN-38

1шт.

k622

K622

KIT service parts, includes items marked

1шт.

k623

K623

KIT service parts, includes items marked, Start Year: 01-JAN-38

1шт.

01859ab

O1859AB1

GASKET

, Start Year: 01-JAN-38, Serial Range: carburetor-manifold

1шт.

04668ab

O4668AB

CONTROL flexible choke, Start Year: 01-JAN-38

1шт.

05636ab

O5636AB

LOOM flexible choke, Start Year: 01-JAN-38

1шт.
