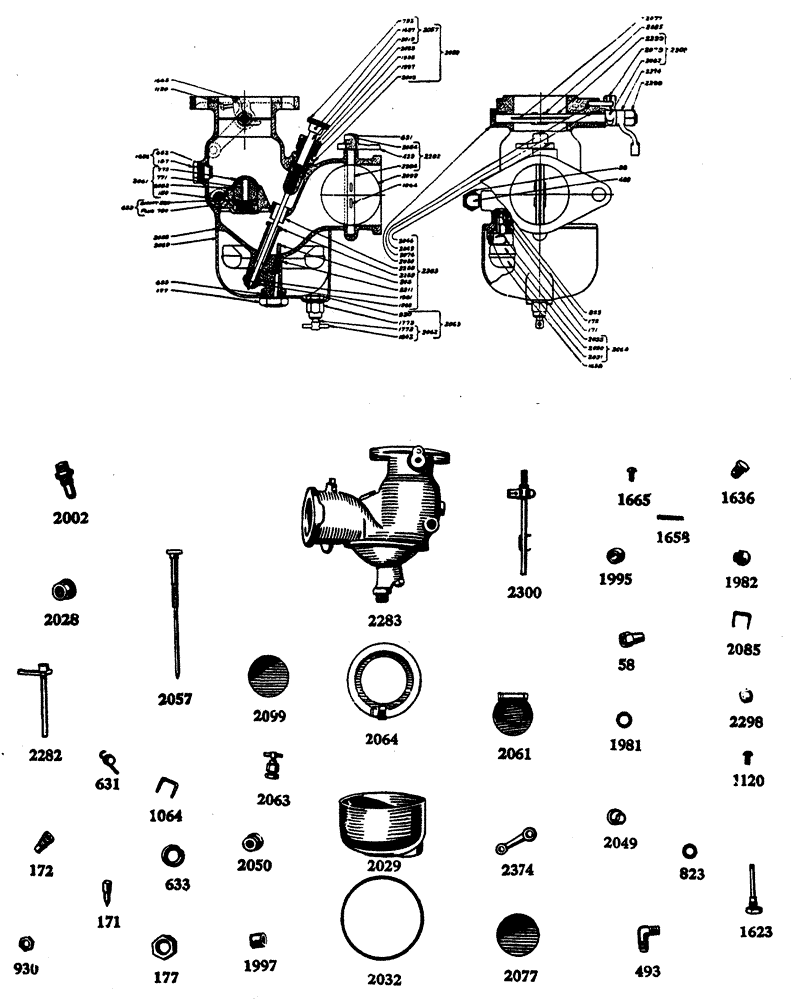

Запчасти Case IH L-SERIES (015) - O1709AB KINGSTON CARBURETOR (1-1/2 MODEL L3V) (PRIOR TO TRACTOR NO. L302744) (03) - FUEL SYSTEM

58

58

STEEL PLATE

NUT fuel connection, Years: 01-JAN-29-01-JAN-34

1шт.

171

171

VALVE float, Years: 01-JAN-29-01-JAN-34

1шт.

172

172

DISC

SEAT float valve, Years: 01-JAN-29-01-JAN-34

1шт.

177

177

NUT fuel cup clamp, Years: 01-JAN-29-01-JAN-34

1шт.

493

493

PLOW DISC

ELBOW fuel intake, Years: 01-JAN-29-01-JAN-34

1шт.

631

631

SPRING choke lever, Years: 01-JAN-29-01-JAN-34

1шт.

633

633

GASKET fuel cup lower, see 2032, Years: 01-JAN-29-01-JAN-34

1шт.

823

823

BEARING ASSY

GASKET fuel valve seat, Years: 01-JAN-29-01-JAN-34

1шт.

930

930

NUT drain body lock, Years: 01-JAN-29-01-JAN-34

1шт.

1064

1064

LAMP

STAPLE throttle disc, use 2085

1шт.

1120

1120

SCREW adjusting, throttle stop, Years: 01-JAN-29-01-JAN-34

1шт.

1623

1623

OIL SEAL

SHAFT air valve, assembly, Years: 01-JAN-29-01-JAN-34

1шт.

1636

1636

STOP air valve, assembly, Years: 01-JAN-29-01-JAN-34

1шт.

1658

1658

SHAFT float lever, Years: 01-JAN-29-01-JAN-34

1шт.

1665

1665

LIGHT, WARNING

SCREW throttle adjusting lock, L302745 and below, see X5385, Years: 01-JAN-29-01-JAN-34

1шт.

1981

1981

BULB

GASKET needle stem seat, Years: 01-JAN-29-01-JAN-34

1шт.

1982

1982

SEAT needle stem, L302745 and below, see 2328, Years: 01-JAN-29-01-JAN-34

1шт.

1995

1995

BEARING CUP,65.11mm OD x 13.97mm W

SLEEVE packing, needle stem binder nut, Years: 01-JAN-29-01-JAN-34

1шт.

1997

1997

PACKING needle stem binder nut, Years: 01-JAN-29-01-JAN-34

1шт.

2002

2002

GROMMET

POST needle stem, L302745 and below, see C6990, Years: 01-JAN-29-01-JAN-34

1шт.

2028

2028

NUT needle stem binder post, Years: 01-JAN-29-01-JAN-34

1шт.

2029

2029

LAMP

CUP fuel, Years: 01-JAN-29-01-JAN-34

1шт.

2032

NLS

NO LONGER SERVICED

GASKET fuel cup, upper, see 633, Years: 01-JAN-29-01-JAN-34

1шт.

2046

2046

LAMP

PIN choke stop, L302745 and below, Years: 01-JAN-29-01-JAN-34

1шт.

2049

2049

ELBOW

BUSHING throttle stem, open end, Years: 01-JAN-29-01-JAN-34

1шт.

2050

2050

BODY

BUSHING throttle stem, close end, Years: 01-JAN-29-01-JAN-34

1шт.

2057

2057

VALVE needle, assembly, L302745 and above, see C7001, Years: 01-JAN-29-01-JAN-34

1шт.

2058

2058

SHIM

POST with needle stem, assembly, L302745 and below, see C6985, Years: 01-JAN-29-01-JAN-34

1шт.

2061

2061

VALVE air, assembly, L302745 and below, see C6967, Years: 01-JAN-29-01-JAN-34

1шт.

2062

2062

NEEDLE drain valve, Years: 01-JAN-29-01-JAN-34

1шт.

2063

2063

LAMP

BODY drain, with stem assembly, fuel cup, Years: 01-JAN-29-01-JAN-34

1шт.

2064

2064

LAMP

FLOAT assembly, Years: 01-JAN-29-01-JAN-34

1шт.

2074

2074

PIN throttle stop, Years: 01-JAN-29-01-JAN-34

1шт.

2077

2077

DISC throttle, Years: 01-JAN-29-01-JAN-34

1шт.

2085

2085

STAPLE throttle disc, Years: 01-JAN-29-01-JAN-34

1шт.

2099

15561R1

PLOW BOLT,#3 Hd, 7/16" - 14 x 1 1/8", Gr 2

DISC choke throttle, Years: 01-JAN-29-01-JAN-34

1шт.

2282

2282

LEVER choke, assembly, L302746 and below, see C7008, Years: 01-JAN-29-01-JAN-34

1шт.

2283

2283

BODY carburetor, L302745 and below, see C7004, Years: 01-JAN-29-01-JAN-34

1шт.

2298

2298

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 2

NUT lock, throttle lever, Years: 01-JAN-29-01-JAN-34

1шт.

2300

2300

STEM throttle assembly, L302745 and below, see C7016, Years: 01-JAN-29-01-JAN-34

1шт.

2328

2328

FITTING

SEAT needle stem, L302744 and above, see 1982

1шт.

2374

2374

WASHER

LEVER throttle, L302745 and below, see C7015, Years: 01-JAN-29-01-JAN-34

1шт.

c6900

C6900

SCREW adjusting, low speed, L302744 and below

1шт.

c6967

C6967

VALVE air, assembly, L302744 and above, see 2061

1шт.

c6977

C6977

PLUG low speed adjusting hole, L302744 and above

1шт.

c6985

C6985

POST with needle stem, assembly, L302744 and above, see 2058

1шт.

c6990

C6990

POST needle stem, L302744 and above, see 2002

1шт.

c7001

C7001

VALVE needle, assembly, L302744 and above, see 2057

1шт.

c7004

C7004

BODY carburetor, L302744 and above, see 2283

1шт.

c7008

C7008

LEVER choke, assembly, L302744 and above, see 2282

1шт.

c7015

C7015

LEVER throttle, L302744 and above, see 2374

1шт.

c7016

C7016

STEM throttle, assembly, L302744 and above, see 2300

1шт.

x5385

X5385

SCREW throttle adjusting lock, L302744 and above, see 1665

1шт.
