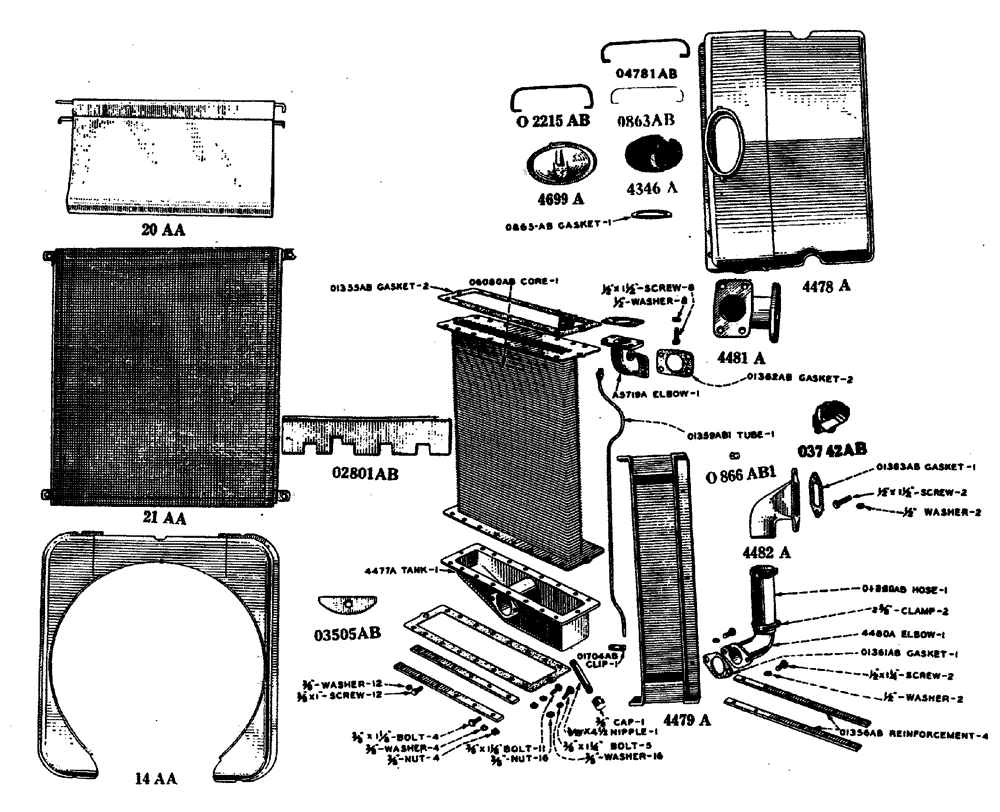

Запчасти Case IH L-SERIES (032) - RADIATOR (02) - ENGINE

4346a

4346A

CAP radiator, see 4699A, Start Year: 01-JAN-30

1шт.

4477a

4477A

TANK lower, radiator, Start Year: 01-JAN-29

1шт.

BOLT 3/8" x 1 - 1/8" machine, with square nut, N.C. thread

11шт.

BOLT 3/8" x 1 - 1/4" machine, with square nut, N.C. thread

5шт.

WASHER 3/8" standard lock

16шт.

NIPPLE 3/8" x 4 - 1/2" pipe

1шт.

CAP 3/8" hexagon pipe

1шт.

4478a

4478A

TANK top, radiator, Start Year: 01-JAN-29

1шт.

4479a

4479A

MEMBER radiator side, Start Year: 01-JAN-29

2шт.

BOLT 3/8" x 1 - 1/4" machine, with square nut

2шт.

BOLT 1/2" x 2 - 1/4" machine, with hexagon nut

2шт.

SCREW 3/8" x 1" hexagon head cap, N.C. thread

8шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

2шт.

WASHER 3/8" standard lock

8шт.

4480a

4480A

ELBOW outlet, radiator, Start Year: 01-JAN-29

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

2шт.

WASHER 1/2" standard lock

2шт.

4481a

4481A

ELBOW inlet, radiator, use 3335AA

1шт.

a4481a

A4481A

ELBOW inlet, radiator, see 3335AA, Start Year: 01-JAN-37

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

8шт.

WASHER 1/2" standard lock

8шт.

4482a

4482A

ELBOW inlet, cylinder, Start Year: 01-JAN-29

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

2шт.

WASHER 1/2" standard lock

2шт.

4699a

4699A

CAPSCREW

CAP radiator, see 4346A, Start Year: 01-JAN-29

1шт.

a5719a

A5719A

ELBOW inlet, radiator, use 3335AA

1шт.

0863ab

O4781AB

SPRING

for 4346A radiator cap, use O4781AB

1шт.

0865ab

O865AB

GASKET

radiator cap, Start Year: 01-JAN-29

1шт.

0866ab1

O866AB1

CONNECTION radiator overflow tube, Start Year: 01-JAN-29

1шт.

01355ab

O1355AB

GASKET

radiator header, Start Year: 01-JAN-29

2шт.

01356ab

O1356AB

REINFORCEMENT radiator header, Start Year: 01-JAN-29

4шт.

BOLT 3/8" x 1 - 1/8" machine, N.C. thread

4шт.

SCREW 3/8" x 1" hexagon head cap, N.C. thread

12шт.

WASHER 3/8" standard lock

12шт.

01359ab

O1359AB

TUBE radiator overflow, use 2488AA

1шт.

01359ab1

O1359AB1

TUBE radiator overflow, use 2488AA

1шт.

01360ab

O1360AB

HOSE radiator, Start Year: 01-JAN-29

1шт.

CLAMP no. 16 hose

2шт.

01361ab

O1361AB

GASKET

radiator outlet elbow, Start Year: 01-JAN-29

1шт.

01362ab

O1362AB

GASKET

radiator inlet elbow, Start Year: 01-JAN-29

2шт.

01363ab

O1363AB

GASKET

cylinder inlet elbow, Start Year: 01-JAN-29

1шт.

01704ab

O1704AB

CLIP radiator overflow tube, Start Year: 01-JAN-29

1шт.

BOLT 3/8" x 1 - 1/4" machine, N.C. thread

1шт.

WASHER 3/8" standard lock

1шт.

02215ab

O2215AB

SPRING for 469A radiator cap, see 04781AB, Start Year: 01-JAN-29

1шт.

02801ab

O2801AB

SHROUD fan housing bottom, prior to tractor no. 4400000, Years: 01-JAN-30-01-JAN-40

1шт.

BOLT 1/4" x 1/2" round head stove, N.C. thread

2шт.

WASHER 1/4" standard lock

2шт.

02801ab1

O2801AB1

SHROUD fan housing bottom, tractor no. 4400000 and after or with 20" fan, Start Year: 01-JAN-40

1шт.

BOLT 1/4" x 1/2" round head stove, N.C. thread

2шт.

WASHER 1/4" standard lock

2шт.

03505ab

O3505AB

SHIM radiator, Start Year: 01-JAN-34

2шт.

03742ab

A27563

THERMOSTAT

, Start Year: 01-JAN-37

1шт.

04781ab

O4781AB

SPRING

for 4346A radiator cap, see 02215AB, Start Year: 01-JAN-30

1шт.

05640ab

O5640AB

CORE radiator, with header, high cooling capacity, see O6080AB, Start Year: 01-JAN-40

1шт.

06080ab

O6080AB

CORE radiator, with header, regular, see 05640AB, Start Year: 01-JAN-29

1шт.

14aa

14AA

HOUSING fan, prior to tractor no. 4400000, Years: 01-JAN-29-01-JAN-40

1шт.

BOLT 1/4" x 5/8" machine, with square nut

6шт.

a14aa

A14AA

HOUSING fan, tractor no. 4400000 and after, or with 20" fan, Start Year: 01-JAN-40

1шт.

BOLT 1/4" x 5/8" machine, with square nut

6шт.

20aa

20AA

CURTAIN radiator, Start Year: 01-JAN-29

1шт.

21aa

21AA

SCREEN radiator, Start Year: 01-JAN-29

1шт.

170aa

170AA

RADIATOR complete, Start Year: 01-JAN-29

1шт.

2488aa

2488AA

TUBE radiator overflow, with connector, Start Year: 01-JAN-29

1шт.

3335aa

3335AA

ELBOW inlet, radiator, see A4481A, consists of;, Years: 01-JAN-29-01-JAN-36

1шт.

a5719a

A5719A

ELBOW

1шт.

SCREW 1/2" hexagon head cap, N.C. thread

1шт.

02825ab

A26673

CLIP

radiator shutter control, Start Year: 01-JAN-40

1шт.

BOLT 1/4" x 1/2" round head stove, N.C. thread

1шт.

WASHER 1/4" standard lock

1шт.

05320ab

O5320AB

SCREW radiator shuttle clamp, Start Year: 01-JAN-40

1шт.

05321ab

O5321AB

BODY radiator shuttle clamp screw, Start Year: 01-JAN-40

1шт.

NUT 5/8" hexagon, light, jam, N.F. thread

1шт.

WASHER 5/8" standard lock

1шт.

05641ab

O5641AB

SHUTTER radiator with guard, Start Year: 01-JAN-40

1шт.

SCREW 5/16" x 1/2" hexagon head cap, N.F. thread

4шт.

WASHER 5/16" standard lock

4шт.

05642ab

O5642AB

CONTROL radiator shutter, Start Year: 01-JAN-40

1шт.

05643ab

O5643AB

SUPPORT radiator shutter control clip, Start Year: 01-JAN-40

1шт.

05644ab

O5644AB

SCREW radiator control wire clamp, Start Year: 01-JAN-40

1шт.

05645ab

O5645AB

SUPPORT radiator shutter rod, Start Year: 01-JAN-40

1шт.

BOLT 1/4" x 1" round head stove, N.C. thread

2шт.

WASHER 1/4" standard lock

2шт.

05646ab

O5646AB

CLAMP radiator shutter rod support, Start Year: 01-JAN-40

1шт.

2213aa

2213AA

SHANK radiator shutter, with handle and snap ring, Start Year: 01-JAN-40

1шт.

2364aa

2364AA

SHUTTER radiator, consists of;, Start Year: 01-JAN-40

1шт.

02825ab

A26673

CLIP

radiator shutter control

1шт.

05320ab

O5320AB

SCREW radiator shuttle clamp

1шт.

05321ab

O5321AB

BODY radiator shuttle clamp screw

1шт.

05641ab

O5641AB

SHUTTER radiator with guard

1шт.

05642ab

O5642AB

CONTROL radiator shutter

1шт.

05643ab

O5643AB

SUPPORT radiator shutter control clip

1шт.

05644ab

O5644AB

SCREW radiator control wire clamp

1шт.

05645ab

O5645AB

SUPPORT radiator shutter rod

1шт.

05646ab

O5646AB

CLAMP radiator shutter rod support

1шт.

2213aa

2213AA

SHANK radiator shutter, with handle and snap ring

1шт.
