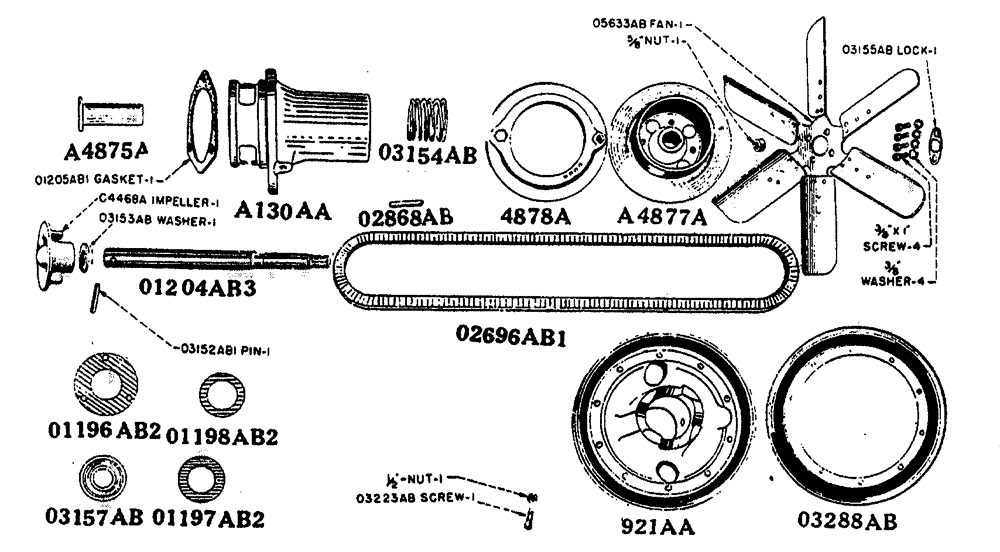

Запчасти Case IH L-SERIES (031) - FAN AND WATER PUMP, "V" BELT DRIVE (TRACTOR NO. L300723 AND AFTER) (02) - ENGINE

b4467a

B4467A

BODY water pump, use A130AA

1шт.

b4467a

B4467A

BODY water pump, use A130AA

1шт.

c4468a

C4468A

IMPELLER water pump, Start Year: 01-JAN-34

1шт.

c4468a

C4468A

IMPELLER water pump, Start Year: 01-JAN-34

1шт.

b4779a

B4779A

PULLEY fan drive, lower, use A921AA

1шт.

b4779a

B4779A

PULLEY fan drive, lower, use A921AA

1шт.

c4779a

C4779A

PULLEY fan drive, lower, use A921AA

1шт.

c4779a

C4779A

PULLEY fan drive, lower, use A921AA

1шт.

a4875a

A27003

BUSHING

water pump

1шт.

a4875a

A27003

BUSHING

water pump, Start Year: 01-JAN-34

1шт.

a4877a

A4877A

HUB fan, with stationary half of pulley, Start Year: 01-JAN-34

1шт.

4878a

4878A

PULLEY fan, adjustable half, Start Year: 01-JAN-34

1шт.

SCREW 3/8" x 7/8" hexagon head cap, N.C. thread

1шт.

WASHER 3/8" standard lock

1шт.

01196ab2

O1196AB2

RETAINER fan bearing felt, Start Year: 01-JAN-34

1шт.

SCREW 1/4" x 1/2" round head machine, N.C. thread

3шт.

WASHER 1/4" standard lock

3шт.

01197ab2

O1197AB2

WASHER felt, fan bearing, Start Year: 01-JAN-34

1шт.

01198ab2

A26476

WASHER

RETAINER fan bearing, Start Year: 01-JAN-34

1шт.

01204ab3

O1204AB3

SHAFT fan and water pump, Start Year: 01-JAN-34

1шт.

NUT 5/8" hexagon, N.F. thread

1шт.

01205ab1

A26478

GASKET

water pump, Start Year: 01-JAN-34

1шт.

01539ab

O1539AB

FAN BLADE ASSEMBLY, 18" 6 blade, see O5633AB or 2395AA, Years: 01-JAN-34-01-JAN-40

1шт.

SCREW 3/8" x 3/4" hexagon head cap, N.C. thread

4шт.

WASHER 3/8" standard lock

4шт.

02696ab1

A26660

BELT,0.88" W

Fan 0.88" W, Start Year: 01-JAN-34

1шт.

02868ab

A27001

KEY

water pump and fan shaft, Start Year: 01-JAN-34

1шт.

03152ab1

A26704

PIN

water pump impeller, Start Year: 01-JAN-34

1шт.

03153ab

O3153AB

X

WASHER thrust, water pump, Start Year: 01-JAN-34

1шт.

03154ab

A26706

SPRING

water pump, Start Year: 01-JAN-34

1шт.

03155ab

A26707

LOCK

water pump shaft nut, Start Year: 01-JAN-34

1шт.

03157ab

A26708

BALL BEARING,0.7874" ID x 2.0472" OD x 0.5906"

BEARING water pump and fan shaft, New Departure no. 7304, Start Year: 01-JAN-34

1шт.

03223ab

O3223AB

SCREW set, fan pulley, Start Year: 01-JAN-34

1шт.

NUT 1/2" hexagon, jam, N.C. thread

1шт.

03288ab

O3288AB

FLANGE fan drive pulley, for 921AA pulley, Years: 01-JAN-34-01-JAN-38

2шт.

RIVET 5/16" x 3/4" round head

10шт.

05633ab

O5633AB

FAN BLADE ASSEMBLY, 20" 6 blade, see O1539AB or 2395AA, Start Year: 01-JAN-40

1шт.

SCREW 3/8" x 1" hexagon head cap, N.C. thread

4шт.

WASHER 3/8", standard lock

4шт.

a130aa

A130AA

BODY water pump, with bushing, Start Year: 01-JAN-34

1шт.

CUP 1/2 ounce 1/8" male grease

1шт.

SCREW 1/2" x 1" hexagon head cap, N.C. thread

3шт.

WASHER 1/2" standard lock

3шт.

921aa

921AA

PULLEY drive, with hub and flange, use A921AA

1шт.

a921aa

A921AA

PULLEY drive, with hub, set screw and nut, Start Year: 01-JAN-34

1шт.

1211aa

1211AA

PUMP ASSEMBLY water, less fan blades, lower fan pulley and belt, Start Year: 01-JAN-34

1шт.

2395aa

2395AA

Parts necessary to install O5633AB 20" fan in place of O1539AB 18" fan, Consists of 1-O5633AB fan, 1-A14AA fan housing and 1-O2801AB1 fan housing bottom shroud., Start Year: 01-JAN-34

1шт.

05633ab

O5633AB

FAN

1шт.

a14aa

A14AA

FAN housing

1шт.

02801ab1

O2801AB1

FAN housing bottom shroud

1шт.
