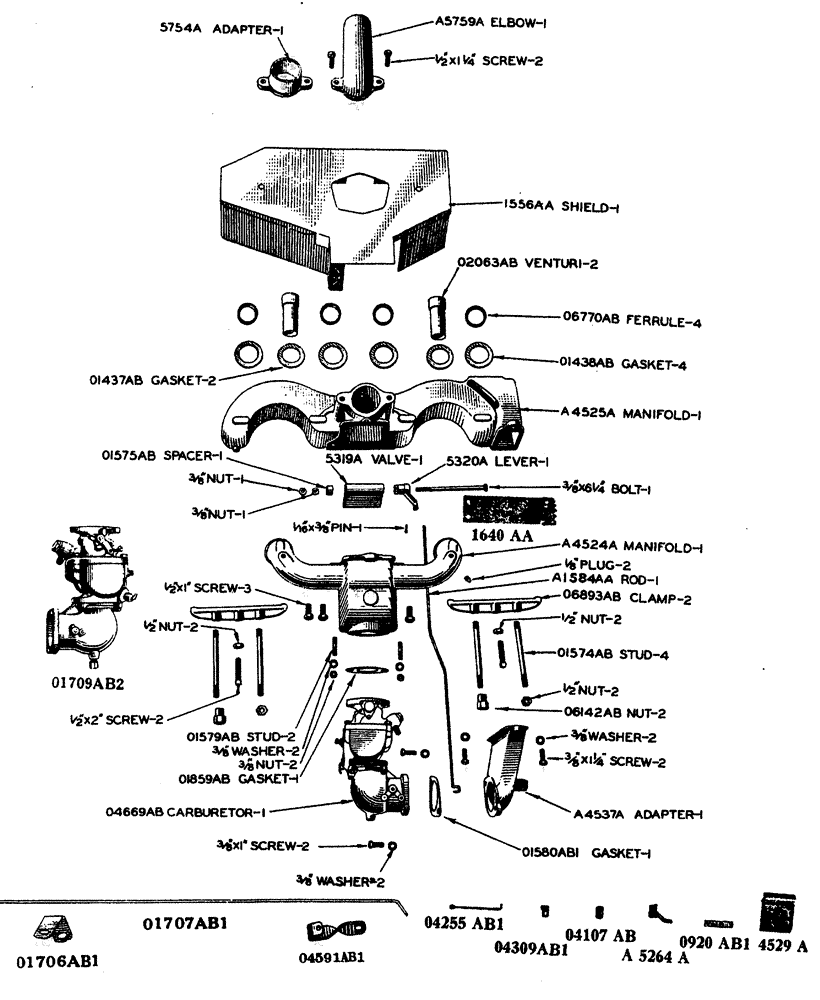

Запчасти Case IH L-SERIES (013) - MANIFOLD AND CARBURETOR, LOW COST FUEL (TRACTOR NO. L301844 & AFTER) / KINGSTON CARBURETOR (02) - ENGINE

4524a

4524A

MANIFOLD inlet, use 416AA

1шт.

a4524a

A4524A

MANIFOLD inlet, tractor no. L301844 and after, see 416AA, Start Year: 01-JAN-35

1шт.

SCREW 1/2" x 1" hexagon head cap, N.C. thread

3шт.

PLUG 1/8" pipe, square head

2шт.

4525a

4525A

MANIFOLD exhaust, use 2740AA

1шт.

a4525a

A4525A

MANIFOLD exhaust, use 2740AA

1шт.

4526a

4526A

VENTURI inlet manifold, use O2063AB

1шт.

4527a

4527A

ELBOW exhaust, for 4525A manifold, see 5754A and A5759A

1шт.

SCREW 3/8" x 1" cup point set, N.C. thread

2шт.

NUT 3/8" hexagon, N.C. thread

2шт.

4529a

4529A

VALVE heat regulator, for tractors not provided with hand control, use 5319A, Years: 01-JAN-29-01-JAN-37

1шт.

When either 459A valve or A5264A lever is needed for tractors provided with hand control, always supply 5319A valve and 5320 lever

1шт.

4530a

4530A

LEVER heat regulator, for tractors not provided with hand control, see 5264A, Years: 01-JAN-29-01-JAN-36

1шт.

BOLT 3/8" x 6 - 1/4" machine, with hexagon nut, N.C. thread

1шт.

NUT 3/8" hexagon, regular N.C. thread

1шт.

SCREW 3/8" x 1 - 1/2" cup point set

1шт.

4534a

4534A

BUSHING in 4524A inlet manifold, for throttle valve shaft, Years: 01-JAN-29-01-JAN-35

2шт.

5264a

5264A

LEVER heat regulator, see 4530A and A5264A, Start Year: 01-JAN-37

1шт.

a5264a

A5264A

LEVER heat regulator, use 5319A and 5320A

1шт.

When either 459A valve or A5264A lever is needed for tractors provided with hand control, always supply 5319A valve and 5320 lever

1шт.

5271a

5271A

QUADRANT heat regulator, see 1640AA and 2196AA, Start Year: 01-JAN-37

1шт.

RIVET 3/16" x 1/2" round head

2шт.

5319a

5319A

heat regulator, for tractors with hand control, see 4529A, Start Year: 01-JAN-38

1шт.

5320a

5320A

LEVER heat regulator, tractor no. 4200000 and after, see 4530A, Start Year: 01-JAN-38

1шт.

BOLT 3/8" x 6 - 1/4" machine, N.C. thread

1шт.

NUT 3/8" hexagon, regular N.C. thread

1шт.

NUT 3/8" hexagon, jam, N.C. thread

1шт.

5754a

5754A

ADAPTER exhaust elbow, used with A4525A manifold when using 4527A elbow

1шт.

5759a

5759A

ELBOW exhaust, use A5759A

1шт.

a5759a

A5759A

ELBOW exhaust, for A4525A manifold, see 4527A

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread

2шт.

0920ab1

O920AB1

SPRING heat regulator control rod, Start Year: 01-JAN-37

1шт.

01436ab

O1436AB

FERRULE exhaust port, for 4525A manifold, see O6770AB

4шт.

01437ab

O1437AB

GASKET intake port, Start Year: 01-JAN-29

2шт.

01438ab

O1438AB

GASKET

exhaust port, Start Year: 01-JAN-29

4шт.

01573ab

O1573AB

CLAMP for 4525A manifold, see O6893AB

2шт.

SCREW 1/2" x 2" cup point set, N.C. thread

2шт.

SCREW 1/2" x 2" cup point set, N.C. thread

2шт.

NUT 1/2" hexagon, jam, N.C. thread

2шт.

01574ab

O1574AB

STUD inlet and exhaust manifold, Start Year: 01-JAN-29

4шт.

NUT 1/2" hexagon, light, N.C. thread

4шт.

01575ab

O1575AB

SPACER heater valve, Start Year: 01-JAN-29

1шт.

01576ab

O1576AB

GASKET between intake and exhaust, Start Year: 01-JAN-29

1шт.

02063ab

O2063AB

VENTURI inlet manifold, Start Year: 01-JAN-29

2шт.

02147ab

O2147AB

PLATE inlet and exhaust manifold, used to stop overheating of inlet manifold, Start Year: 01-JAN-31

1шт.

04107ab

O4107AB

NUT manifold cover, Start Year: 01-JAN-36

2шт.

04255ab

O4255AB

ROD heat regulator lever, Start Year: 01-JAN-37

1шт.

04255ab1

O4255AB1

LINK heat regulator, Start Year: 01-JAN-38

1шт.

PIN 3/32" x 5/8" cotter

1шт.

04256ab

O4256AB

ROD heat regulator hand control, see A1584AA, Start Year: 01-JAN-37

1шт.

PIN 3/32" x 5/8" cotter

1шт.

04256ab1

O4256AB1

ROD heat regulator, use A1584AA

1шт.

04258ab

O4258AB

BRACE heat regulator quadrant, Start Year: 01-JAN-37

1шт.

BOLT 5/16" x 5/8" machine, N.C. thread

1шт.

WASHER 5/16" standard lock

1шт.

04309ab

O4309AB

CLIP heat regulator hand control rod, used with O4256AB rod, Start Year: 01-JAN-37

1шт.

04309ab1

O4309AB1

CLIP heat regulator hand control rod, used with A1584AA rod, Start Year: 01-JAN-38

1шт.

SCREW 5/16" x 1/2" hexagon head cap, N.C. thread

1шт.

WASHER 5/16" standard lock

1шт.

06770ab

A21056

CAP

FERRULE exhaust port, for A4525A manifold, see O1436AB and 2740AA

4шт.

06893ab

O6893AB

CLAMP for A4525A manifold, see O1573AB

2шт.

SCREW 1/2" x 2" cup point set, N.C. thread

2шт.

NUT 1/2" hexagon, jam, N.C. thread

2шт.

416aa

416AA

MANIFOLD inlet, with 453AA bushing, prior to tractor no. L301844, see A4524A, Years: 01-JAN-29-01-JAN-35

1шт.

PLUG 1/8" pipe, square head

2шт.

SCREW 1/2" x 1" hexagon head cap, N.C. thread

3шт.

1392aa

1392AA

SHIELD manifold, see 1556AA, consists of; 1- 1556AA, 2-O4107AB, and 2-1/2" x 1" hexagon head, N.F. thread cap screws, Years: 01-JAN-29-01-JAN-35

1шт.

1556aa

1556AA

SHIELD manifold, see 1392AA, Start Year: 01-JAN-36

1шт.

SCREW 1/2" x 1" hexagon head cap, N.F. thread

2шт.

a1584aa

A1584AA

ROD heat regulator, with 04309AB1 clip, see O4256AB

1шт.

a1584aa

A1584AA

PIN 3/32" x 5/8" cotter

2шт.

1640aa

1640AA

QUADRANT heat regulator, with support, prior to tractor no. 4402720, see 5271A and 2196AA, Years: 01-JAN-36-01-JAN-40

1шт.

BOLT 5/16" x 3/4" flat heat stove, N.C. thread

1шт.

WASHER 5/16" standard lock

1шт.

2196aa

2196AA

QUADRANT heat regulator, with support, tractor no. 4402720 and after, see 5271A and 1640AA, Start Year: 01-JAN-40

1шт.

BOLT 5/16" x 3/4" flat head stove, N.C. thread

1шт.

WASHER 5/16" standard lock

1шт.

2740aa

2740AA

MANIFOLD exhaust, carburetor, low cost fuel, consists of;, Start Year: 01-JAN-29

1шт.

a4525a

A4525A

MANIFOLD

1шт.

5754a

5754A

ADAPTER

1шт.

06770ab

A21056

CAP

FERRULE

4шт.

1/2" x 1 - 1/4" cap screws

2шт.

4531a

4531A

VALVE throttle, kingston carburetor, Years: 01-JAN-29-01-JAN-35

1шт.

SCREW no. 8 - 32 x 1/2" round head machine, N.C. thread, kingston carburetor

2шт.

WASHER no. 8 standard lock, kingston carburetor

2шт.

4532a

4532A

STOP throttle valve, kingston carburetor, Years: 01-JAN-29-01-JAN-35

1шт.

PIN no. 0 x 3/4" taper, kingston carburetor

1шт.

SCREW 1/4" x 1" round head machine, N.C. thread, kingston carburetor

1шт.

NUT 1/4" hexagon, N.C. thread, kingston carburetor

1шт.

4533a

4533A

LEVER throttle valve, kingston carburetor, Years: 01-JAN-29-01-JAN-35

1шт.

PIN no. 0 x 3/4" taper, kingston carburetor

1шт.

4534a

4534A

BUSHING throttle valve shaft, kingston carburetor, Years: 01-JAN-29-01-JAN-35

2шт.

4537a

4537A

ADAPTER carburetor, kingston, Years: 01-JAN-29-01-JAN-35

1шт.

SCREW 3/8" x 1 - 1/4" hexagon head cap, N.C. thread, kingston carburetor

2шт.

BOLT 3/8" x 1 - 1/2" machine, with hexagon nut, N.C. thread, kingston carburetor

2шт.

WASHER 3/8" standard lock, kingston carburetor

2шт.

01577ab

O1577AB

SHAFT throttle valve, kingston carburetor, Years: 01-JAN-29-01-JAN-35

1шт.

01578ab

O1578AB

ROD throttle, kingston carburetor, Years: 01-JAN-29-01-JAN-35

1шт.

PIN 3/32" x 1/2" cotter, kingston carburetor

2шт.

NUT 1/4" hexagon, N.C. thread, kingston carburetor

2шт.

01579ab

O1579AB

STUD carburetor to inlet manifold, kingston, Years: 01-JAN-29-01-JAN-35

2шт.

NUT 3/8" hexagon, light, N.F. thread, kingston carburetor

2шт.

WASHER 3/8" standard lock, kingston carburetor

2шт.

01580ab

O1580AB

GASKET for 4537A carburetor adapter, kingston, Years: 01-JAN-29-01-JAN-35

1шт.

01706ab

O1706AB

CLIP choke rod, kingston carburetor, Years: 01-JAN-29-01-JAN-35

1шт.

01707ab

O1707AB

ROD choke, kingston carburetor, Years: 01-JAN-29-01-JAN-35

1шт.

PIN 1/16" x 3/8" cotter, kingston carburetor

1шт.

01709ab

O1709AB

CARBURETOR kingston, 1 - 1/2" model L.3.V., L302745 and below, use O1709AB1, Years: 01-JAN-29-01-JAN-35

1шт.

01709ab1

O1709AB1

CARBURETOR kingston, 1 - 1/2" model L.3.L., tractor no. L302744 and up to tractor no. L301843, Years: 01-JAN-34-01-JAN-35

1шт.

01859ab

O1859AB1

GASKET

carburetor to intake manifold, kingston, Years: 01-JAN-29-01-JAN-35

1шт.

154aa

154AA

CARBURETOR and parts necessary to change from kingston to zenith carburetor, consists of the following;, Start Year: 01-JAN-29

1шт.

4431a

4431A

COLLAR

1шт.

a4521a

A4521A

LEVER

1шт.

a4524a

A4524A

MANIFOLD

1шт.

a4537a

A4537A

ADAPTER

1шт.

5022a

5022A

CONNECTION

1шт.

5049a

5049A

BRACKET

1шт.

5050a

5050A

LEVER

1шт.

5051a

5051A

DISC

1шт.

01554ab1

A26546

SPRING

1шт.

01580ab

O1580AB

GASKET

1шт.

01582ab1

O1582AB1

CLAMP

1шт.

01706ab1

O1706AB1

CLIP

1шт.

01707ab1

O1707AB1

ROD

1шт.

04669ab

O4669AB

CARBURETOR

1шт.

01711sb1

O1711SB1

TUBE

1шт.

03541ab

O3541AB

STUD

1шт.

03544ab

O3544AB

SPRING

1шт.

03546ab

O3546AB

ROD

1шт.

03548ab

O3548AB

ROD

1шт.

03617ab

O3617AB

ROD

1шт.

1277aa

1277AA

SHAFT

1шт.

a1428aa

A1428AA

COVER

1шт.

PIN 3/32" X 5/8" cotter

2шт.

PIN 1/8" x 3/4" cotter

1шт.

SCREW 1/4" x 1 - 1/2" rd. machine

2шт.

SCREW 1/4" x 3/4" cup point set

1шт.

SCREW 3/8" x 1" H.H. cap

2шт.

SCREW 3/8" x 4 - 1/2" H.H. cap

1шт.

NUT 1/4" hex.

1шт.

NUT 3/8" hex.

4шт.

NUT 1/2" hex.

1шт.

WASHER 1/4" plain

1шт.

2340aa

2340AA

SET of parts to change from kingston to zenith carburetor, and from low cost fuel to gasoline manifold, consists of the following;, Start Year: 01-JAN-29

1шт.

4431a

4431A

COLLAR

1шт.

a4521

A4521

COUPLING

LEVER

1шт.

a4537a

A4537A

ADAPTER

1шт.

5022a

5022A

CONNECTION

1шт.

5049a

5049A

BRACKET

1шт.

5050a

5050A

LEVER

1шт.

5051a

5051A

DISC

1шт.

072a

072A

DOWEL

1шт.

01554ab1

A26546

SPRING

1шт.

01580ab1

A26555

GASKET

1шт.

01582ab1

O1582AB1

CLAMP

1шт.

01706ab1

O1706AB1

CLIP

1шт.

01707ab1

O1707AB1

ROD

1шт.

01711ab1

O1711AB1

TUBE

1шт.

03541ab

O3541AB

STUD

1шт.

03544ab

O3544AB

SPRING

1шт.

03546ab

O3546AB

ROD

1шт.

03617ab

O3617AB

ROD

1шт.

04669ab

O4669AB

CARBURETOR zenith

1шт.

PINS 3/32" x 5/8" cotter

2шт.

PINS 1/8" x 3/4" cotter

1шт.

SCREW 3/8" x 1" H.H. cap

2шт.

SCREW 1/4" x 1 - 1/2" machine

2шт.

SCREW 3/8" x 4 - 1/2" H.H. cap

1шт.

NUT 3/8" hex.

2шт.

NUT 3/8" hex. light

2шт.

NUT 1/2" hex. light

1шт.

WASHER 1/4" standard plain

1шт.

a1878aa

A1878AA

MANIFOLDS gasoline

1шт.

a4537a

A4537A

ADAPTER carburetor, Start Year: 01-JAN-35

1шт.

SCREW 3/8" x 1 - 1/4" hexagon head cap, N.C. thread

2шт.

WASHER 3/8" standard lock

2шт.

01579ab

O1579AB

STUD carburetor to intake manifold, Start Year: 01-JAN-35

2шт.

NUT 3/8" hex., light, N.F. thread

2шт.

WASHER 3/8" lock

2шт.

01580ab1

A26555

GASKET

for A4537A carburetor adapter, Start Year: 01-JAN-35

1шт.

01706ab1

O1706AB1

CLIP choke rod, tractor no. L301843 and above to tractor no. 4210939, see O4591AB1, O4662AB, Years: 01-JAN-35-01-JAN-38

1шт.

01707ab1

O1707AB1

ROD choke, tractor no. L301843 and above to tractor no. 4210939, see O4668AB, Years: 01-JAN-35-01-JAN-38

1шт.

PIN 1/16" x 3/8" cotter

1шт.

01709ab2

O1709AB2

CARBURETOR zenith model no. K6A, outline no. 0-6799, tractor no. L301844 to tractor no. 4210939, use O4669AB, Years: 01-JAN-35-01-JAN-38

1шт.

01859ab

O1859AB1

GASKET

carburetor to inlet manifold, Start Year: 01-JAN-35

1шт.

04590ab

O4590AB

STOP flexible choke control rod, tractor no. 4210939 and after, Start Year: 01-JAN-38

1шт.

04591ab

O4591AB

CLIP flexible choke rod, tractor no. 4400000 and after, see O1706AB1 and O4662AB, Start Year: 01-JAN-40

1шт.

BOLT 3/16" x 1 - 3/4" round head stove, N.C. thread

1шт.

WASHER 3/16" standard lock

1шт.

04660ab

O4660AB

BRACKET flexible choke rod, tractor no. 4210939 and after, Start Year: 01-JAN-38

1шт.

BOLT 1/4" x 1/2" machine, with square nut, N.C. thread

1шт.

WASHER 1/4" standard lock

1шт.

04662ab

O4662AB

CLIP flexible choke rod, tractor no. 4210939 to tractor no. 4400000, see O1706AB1 and O4591AB1, Years: 01-JAN-38-01-JAN-40

1шт.

BOLT 3/16" x 3/4" round head stove, N.C. thread

1шт.

WASHER 3/16" standard lock

1шт.

04668ab

O4668AB

ROD flexible choke, tractor no. 4210939 and after, see O1707AB1, Start Year: 01-JAN-38

1шт.

04669ab

O4669AB

CARBURETOR zenith model no. K6A, outline no. 0-8714, tractor no. 4210939 and after, see O1709AB2, Start Year: 01-JAN-38

1шт.

SCREW 3/8" x 1" hexagon head cap, N.C. thread

2шт.

WASHER 3/8" standard lock

2шт.

04807ab

O4807AB

SWIVEL flexible choke rod, tractor no. L301843 to tractor no. 4210939, only for tractors using O1709AB2, Years: 01-JAN-35-01-JAN-38

1шт.

04808ab

O4808AB

ADAPTER carburetor choke rod, tractor no. L301843 to tractor no. 4210939, only for tractors using O1709AB2, Years: 01-JAN-35-01-JAN-38

1шт.

BOLT 3/16" x 1/2" round head stove, N.C. thread

2шт.

WASHER 3/16" standard lock

2шт.

0563ab

O563AB

LOOM flexible choke control, tractor no. 4400000 and after, Start Year: 01-JAN-40

1шт.
